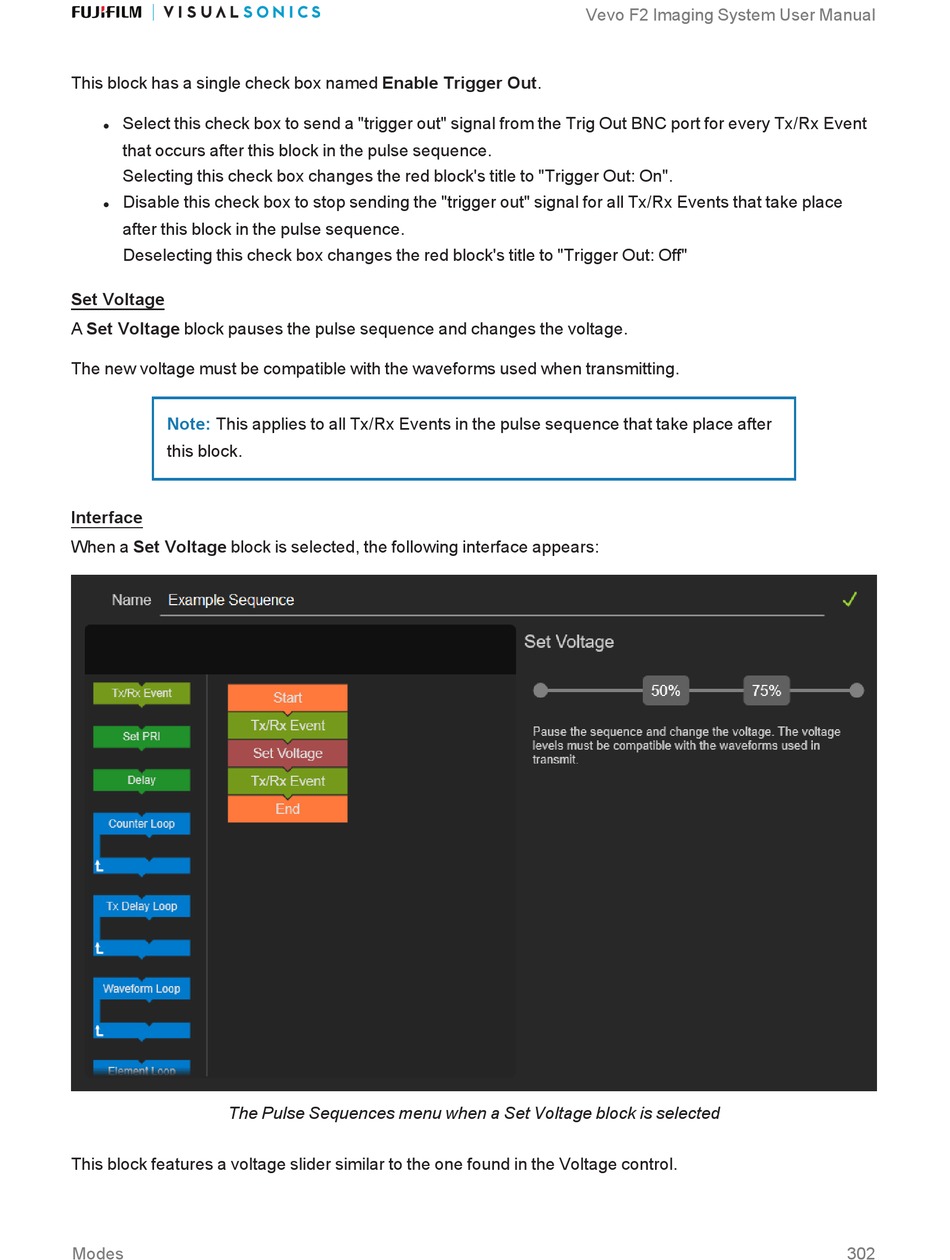

FujiFilm VisualSonics Vevo F2 User Manual page 302

This block has a single check box named Enable Trigger Out.
Select this check box to send a "trigger out" signal from the Trig Out BNC port for every Tx/Rx Event
l
that occurs after this block in the pulse sequence.
Selecting this check box changes the red block's title to "Trigger Out: On".
Disable this check box to stop sending the "trigger out" signal for all Tx/Rx Events that take place
l
after this block in the pulse sequence.
Deselecting this check box changes the red block's title to "Trigger Out: Off"
Set Voltage
A Set Voltage block pauses the pulse sequence and changes the voltage.
The new voltage must be compatible with the waveforms used when transmitting.
Note: This applies to all Tx/Rx Events in the pulse sequence that take place after
this block.
Interface
When a Set Voltage block is selected, the following interface appears:
The Pulse Sequences menu when a Set Voltage block is selected
This block features a voltage slider similar to the one found in the Voltage control.
