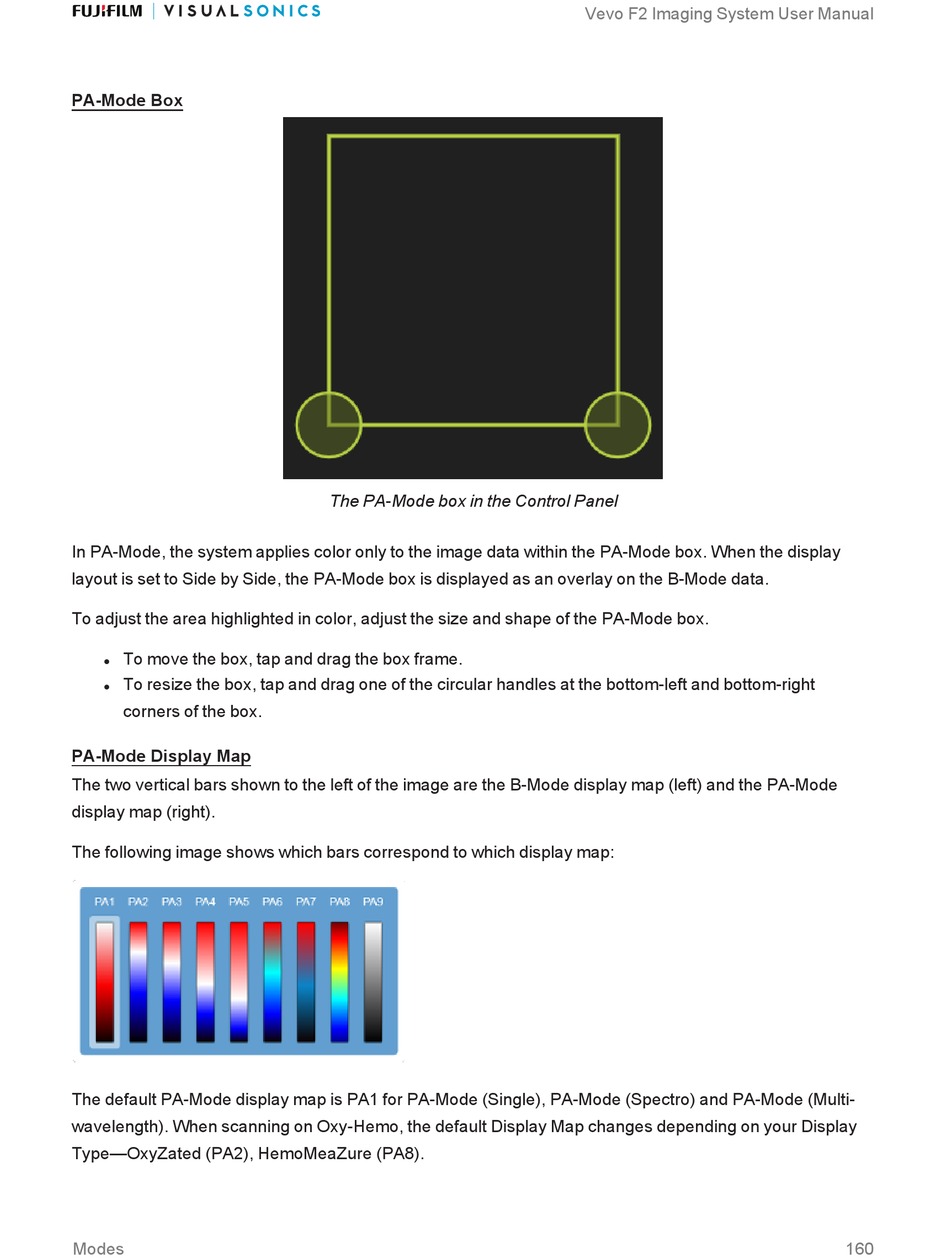

PA-Mode Box
In PA-Mode, the system applies color only to the i mage data within the PA-Mode box. When the display
layout is set to Side by Side, the PA-Mode box is displayed as an overlay on the B-Mode data.
To adjust the area highlighted in color, adjust the size and shape of the PA-Mode box.
To move the box, tap and drag the box frame.
l
To resize the box, tap and drag one of the circular handles at the bottom-left and bottom-right
l
corners of the box.
PA-Mode Display Map
The two vertical bars shown to the left of the image are the B-Mode display map (left) and the PA-Mode
display map (right).
The following image shows which bars correspond to which display map:
The default PA-Mode display map is PA1 for PA-Mode (Single), PA-Mode (Spectro) and PA-Mode (Multi-
wavelength). When scanning on Oxy-Hemo, the default Display Map changes depending on your Display
Type—OxyZated (PA2), HemoMeaZure (PA8).
Modes
The PA-Mode box in the Control Panel
