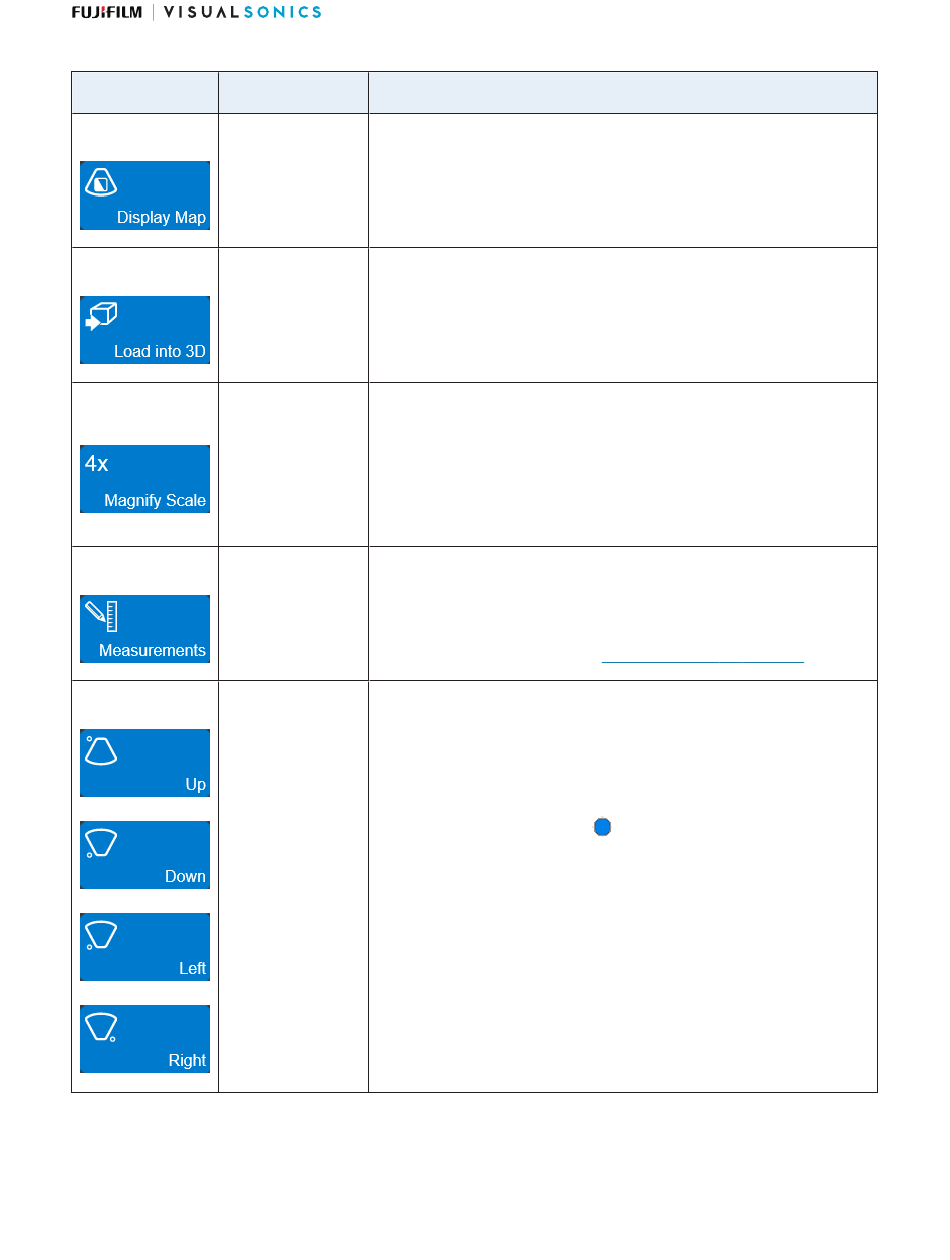

Control Live/Review
Display Map
Load into 3D
Magnify Scale
Measurements
Orientation
Modes
Allows a choice of predefined sets of overlays and image maps
that you can apply any time during live scanning or review. Tap
Both
the Display Map control to see the available maps for the active
imaging mode.
Loads a 3D Mode clip into the rendered 3D view. This control is
Review only available when reviewing clips that were acquired in 3D
Mode.
Adjusts the magnification level of an area when placing a
measurement or annotation.
Review
To change the magnification, tap this button, then use the
Increase or Decrease flyout buttons to select a magnification
level between 2x and 8x.
Opens the Measurements menu.
Review Use this menu to select and add a measurement to an image.
For more information, refer to Measurements on page 61.
Sets the image orientation, allowing you to align the image with
the transducer. The blue dot
panel and image display corresponds to this setting.
Both
There is an Up/Down button and a Left/Right button. Each button
shows the orientation that is not currently selected.
Tap the appropriate button to select an orientation.
