Vevo F2 Imaging System User Manual
Interior

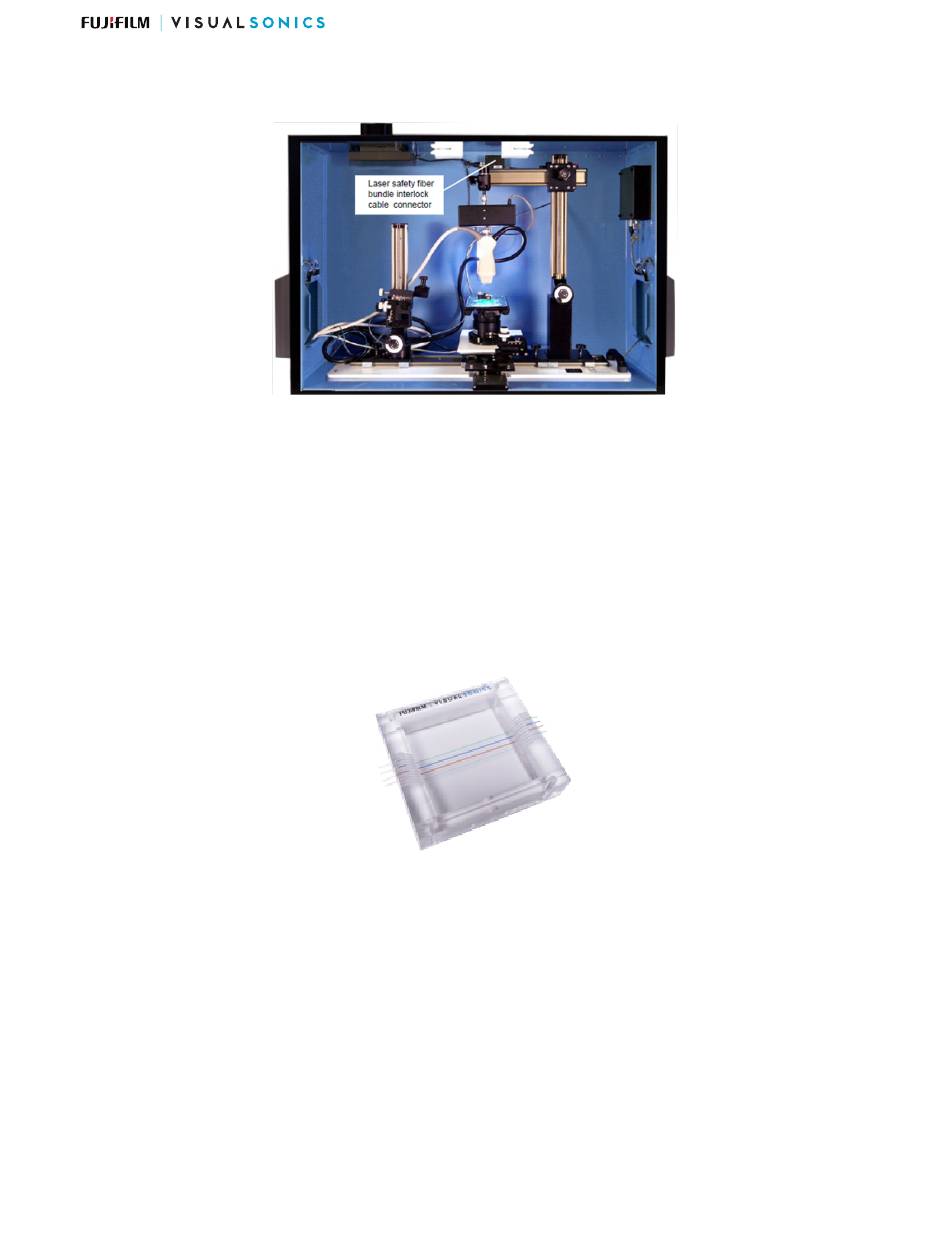

On the back panel inside the Vevo LAZRTight, there is a device called the laser safety fiber bundle interlock
cable connector, which prevents users from using the transducer unless the Vevo LAZRTight is completely
closed.
This device connects to a cable that feeds out from one side of the fiber optic bundle, and connects to the
delivery interlock connector on the laser cart.
Vevo PHANTOM Imaging Chamber
The Vevo PHANTOM is an acrylic imaging chamber (or dish) that is used for in vitro characterization of
photoacoustic contrast agents when imaging in PA-Mode.
The Vevo PHANTOM imaging chamber
Components 433
