1. Transducer orientation indicator
2. Sample gate overlay: Displays the cross-section image data acquired along the sample gate line in
the B-Mode scout window.
3. B-Mode scout window: A small B-Mode image that helps you position the transducer before you start
M-Mode. The region of interest is located between the two wireframe brackets.
4. Image scale
5. M-Mode or AM-Mode window: Displays the cross-section image data acquired along the sample
gate line, as displayed in the B-Mode scout window.
6. Focal zone indicator
7. Clip time scale
M-Mode and AM-Mode Control Panel Interface
When M-Mode is selected, the Control Panel can show two different interfaces:
A staging area that allows for initial setup of M-Mode or AM-Mode. In this staging area, the system is
l
still canning in B-Mode. To fully scan in M-Mode or AM-Mode, tap the Start button from the M-Mode
flyout.
A scanning state that appears after pressing Start. In this state, the control panel displays a B-Mode
l
scout image and M-Mode/AM-Mode cross-sectional data.
Modes

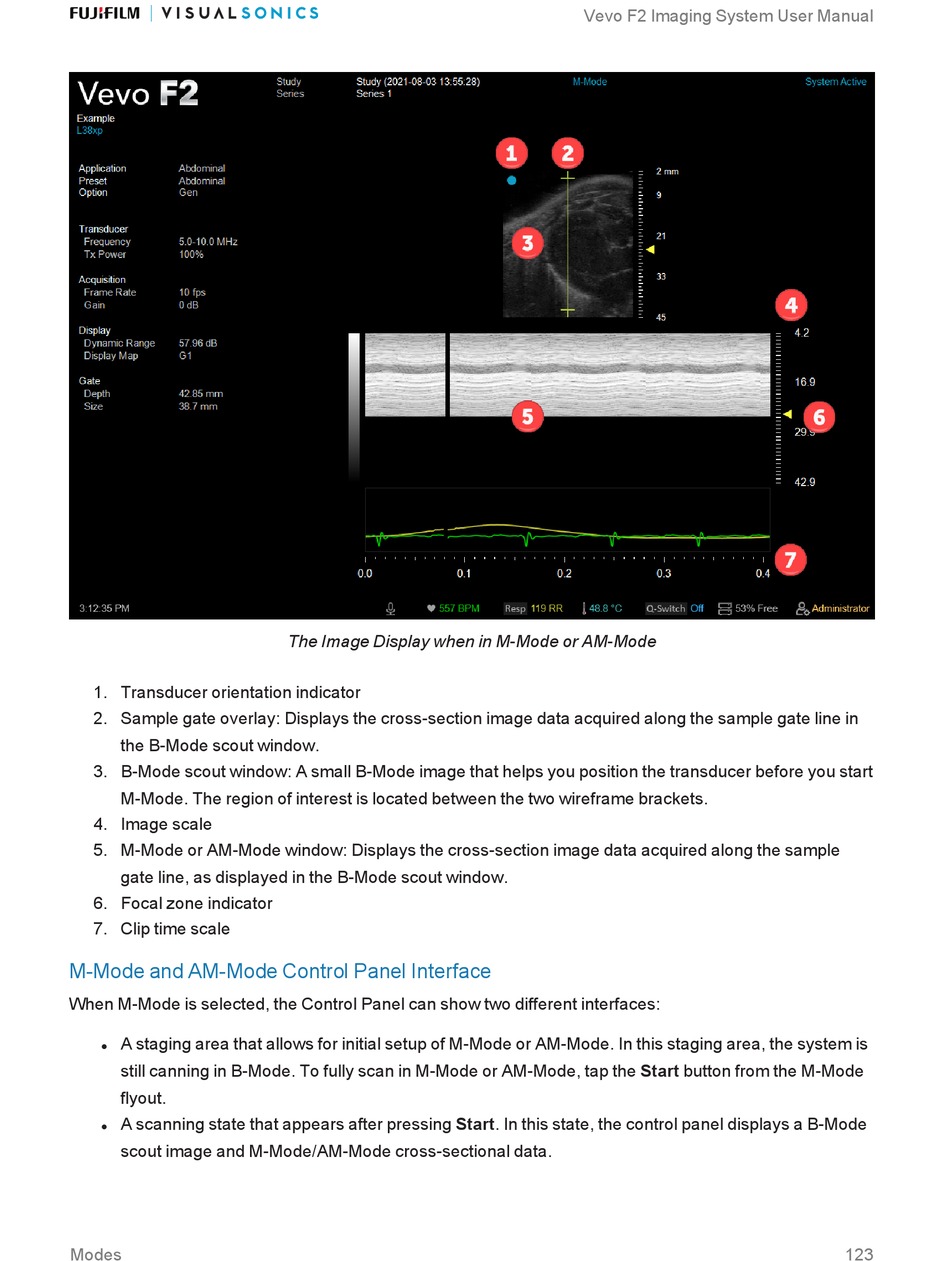

The Image Display when in M-Mode or AM-Mode
Vevo F2 Imaging System User Manual
123
