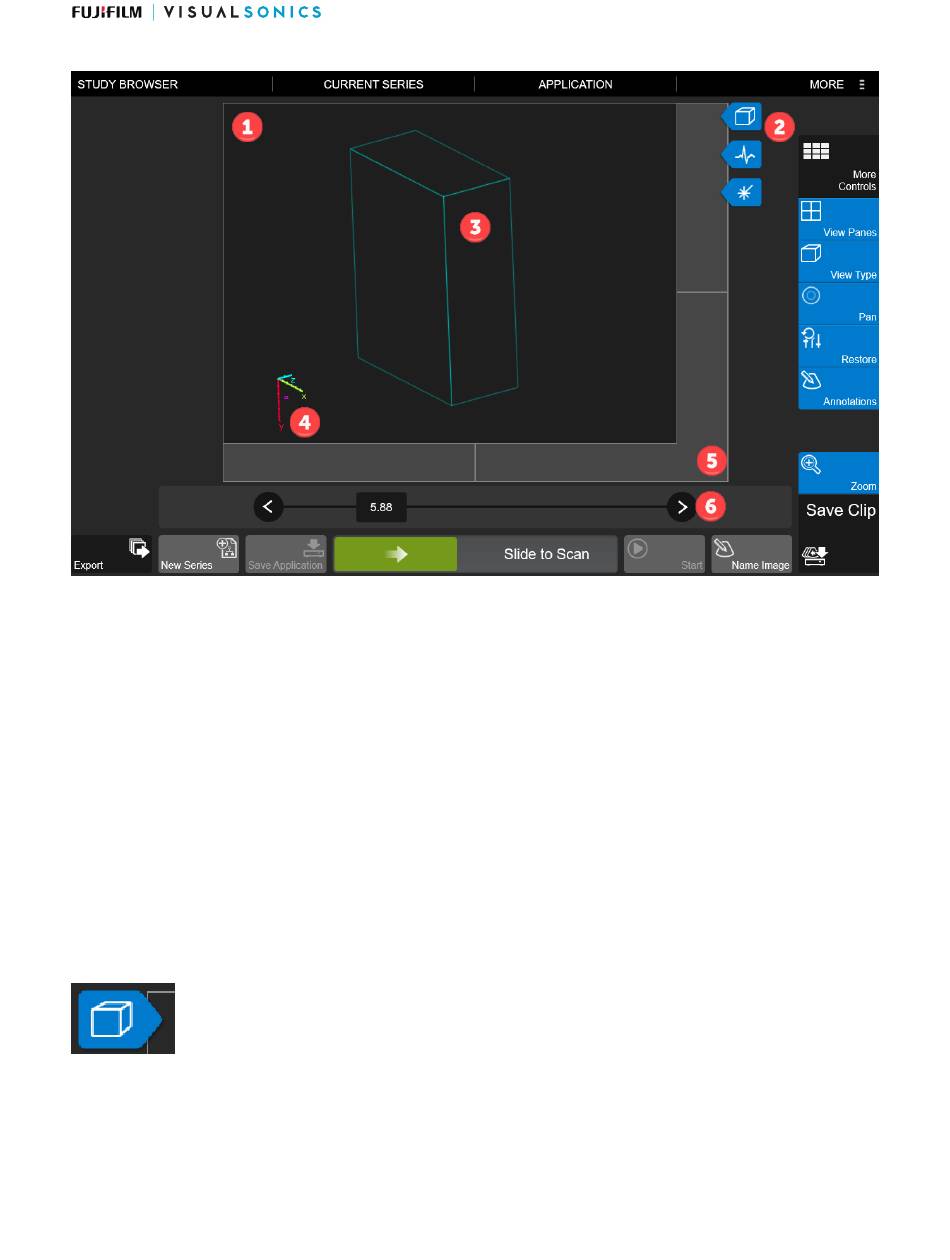

The control panel interface when reviewing a 3D Mode image
When viewing a 3D Mode image, the control panel interface has the following features:
1. Active view pane
2. Cube tab
3. Cube wireframe
4. Orientation indicator
5. Inactive view pane
6. Frame slider
Active View Pane
This area of the control panel shows controls for the currently selected pane when using a multi-pane view.
Cube Tab
Tap the cube tab to open the 3D Mode panel.
When reviewing an image, the tab appears on the right side of the control panel, and the 3D Mode panel is
used to control the motor position.
Modes
Vevo F2 Imaging System User Manual
208
