3. You can now edit how the analysis is displayed. The available settings are different for each PA sub-
mode.
PA-Mode (Single):
Display Options – A uto Scale and PA Average or PA Average Threshold for the Y axis.
o
Chart X Axis – Time Scale or Frame Scale
o
PA Regions – When displaying multiple regions, you can choose to display one, some, or all
o
on one graph. You can also choose a different color for the data on the chart for each
PA Region displayed.
PA-Mode (Spectro):
Display Options – Auto Scale and PA Average or PA Average Threshold for the Y axis.
o
PA Regions – When displaying multiple regions, you can choose to display one, some, or all
o
on one graph. You can also choose a different color for the data on the chart for each
PA Region displayed.
For a PA-Mode (Spectro) image, you also have a Save Spectral Curves button to save a
custom curve.
Session Tasks

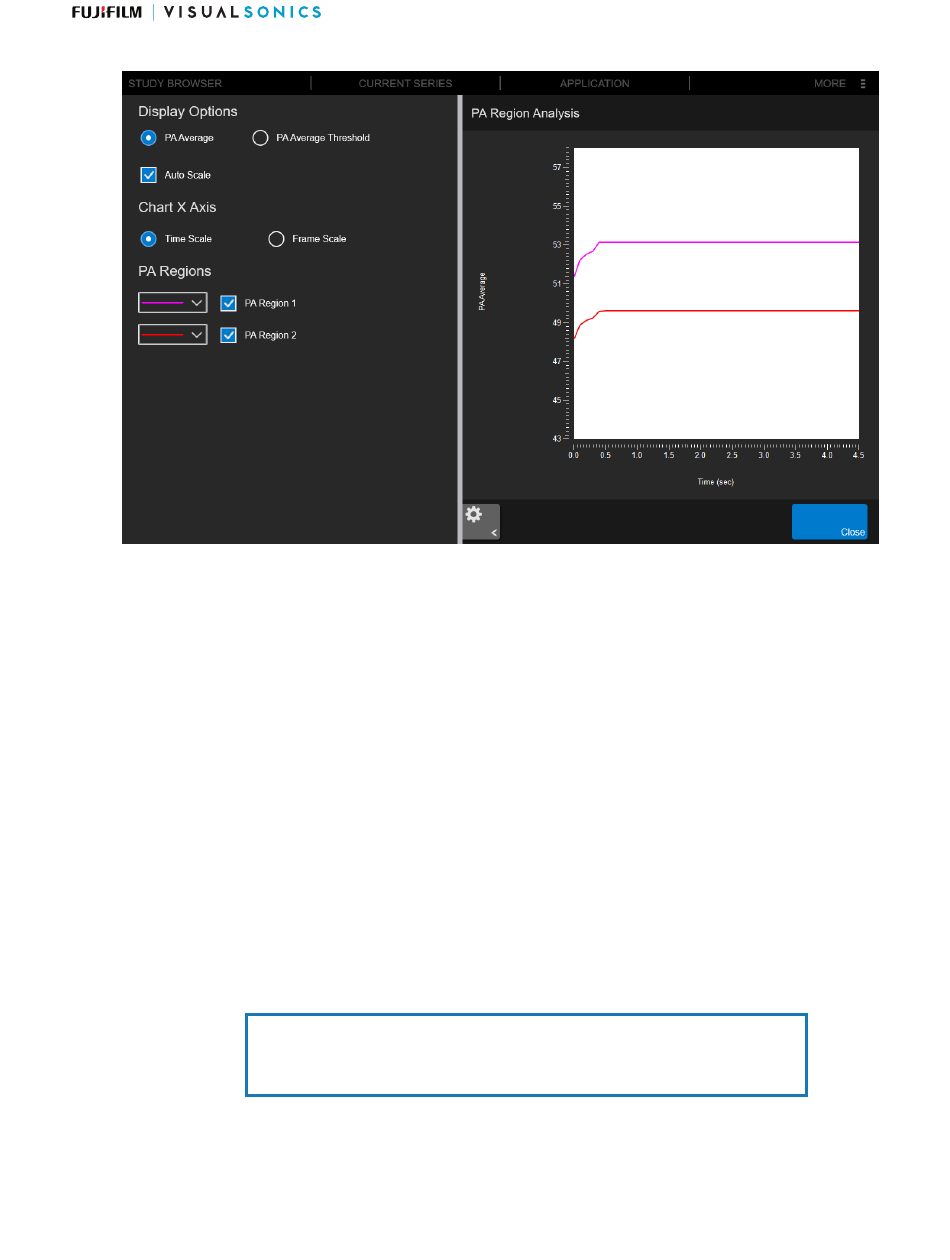

The PA Region Analysis screen
Note: The Save Spectral Curves button is only available for Spectro
images that have acquired the full wavelength range.
