The Transducer Settings panel displays the properties of the current transducer. These text fields cannot be
edited.
The following properties are listed:
Array Properties
l
Type: The type of transducer.
o
Element Count: The number of elements on the transducer.
o
Radius: The radius of the curvature on the transducer (0 for linear arrays).
o
Pitch: The element spacing of the transducer.
o
Lens Properties
l
Type: The type of lens on the transducer.
o
Thickness: The thickness of the lens.
o
Radius: The radius of the lens.
o
Speed of Sound: The speed of sound through the lens.
o
Speed of Sound
The Speed of Sound control is used to set the speed of sound, which varies depending on the target
material.
For example, if the transducer will be used in water, use this control to set the speed of sound in water.
Modes

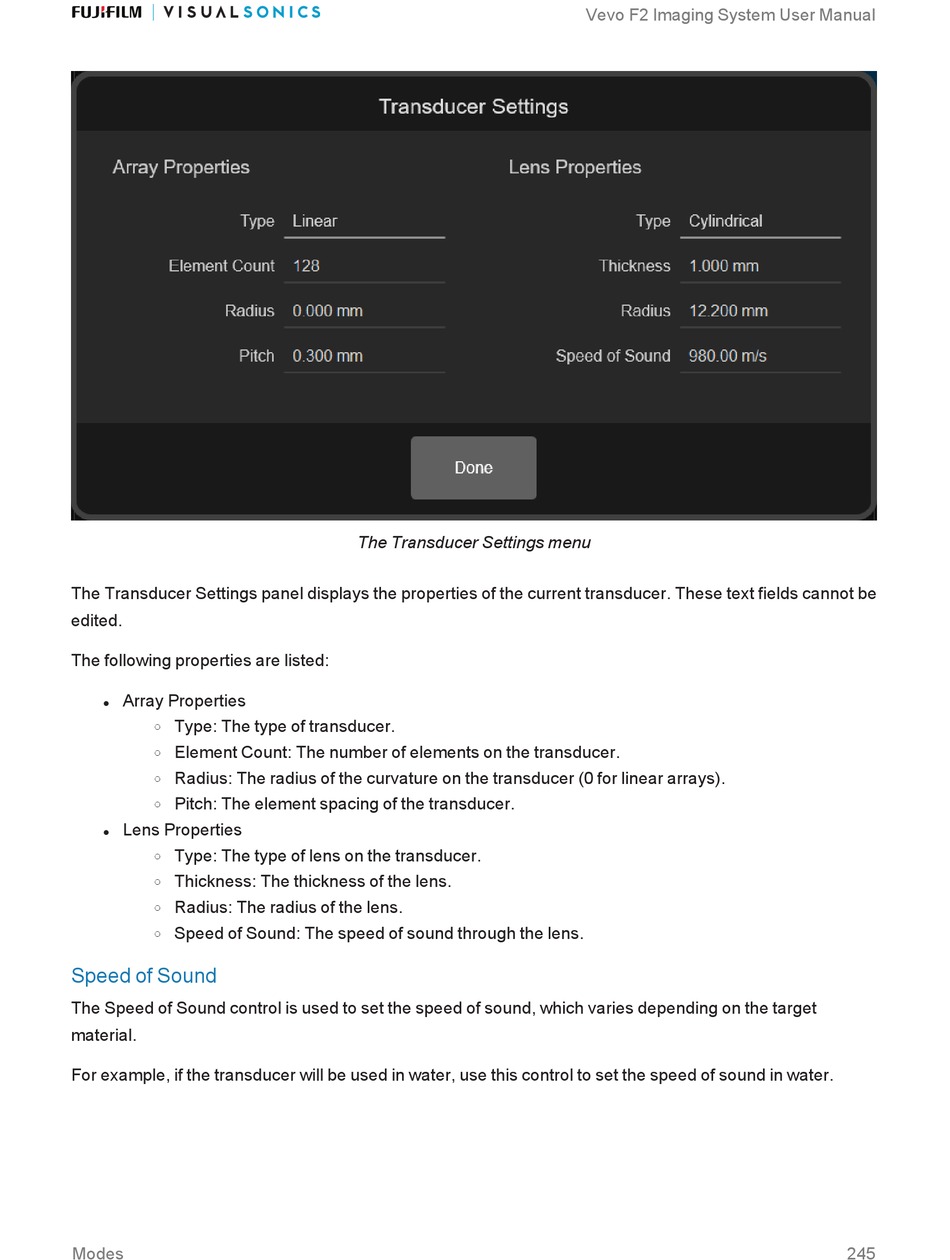

The Transducer Settings menu
