VADA Image Display Interface
When in VADA Mode, the image display displays raw data or a B-Mode preview image.
The left side of the image display shows the following information:
Application: The currently selected application for the transducer.
l
Preset: The currently selected preset for the transducer.
l
Transducer frequency: The frequency range of the transducer.
l
Transmit voltage: The current voltage settings on the high and low voltage rails, displayed in
l
percentage of the max voltage.
Acquisition: Lists acquisition settings.
l
Depth
o
Width
o
Speed of Sound: The speed of sound selected in the Speed of Sound control.
o
Modes

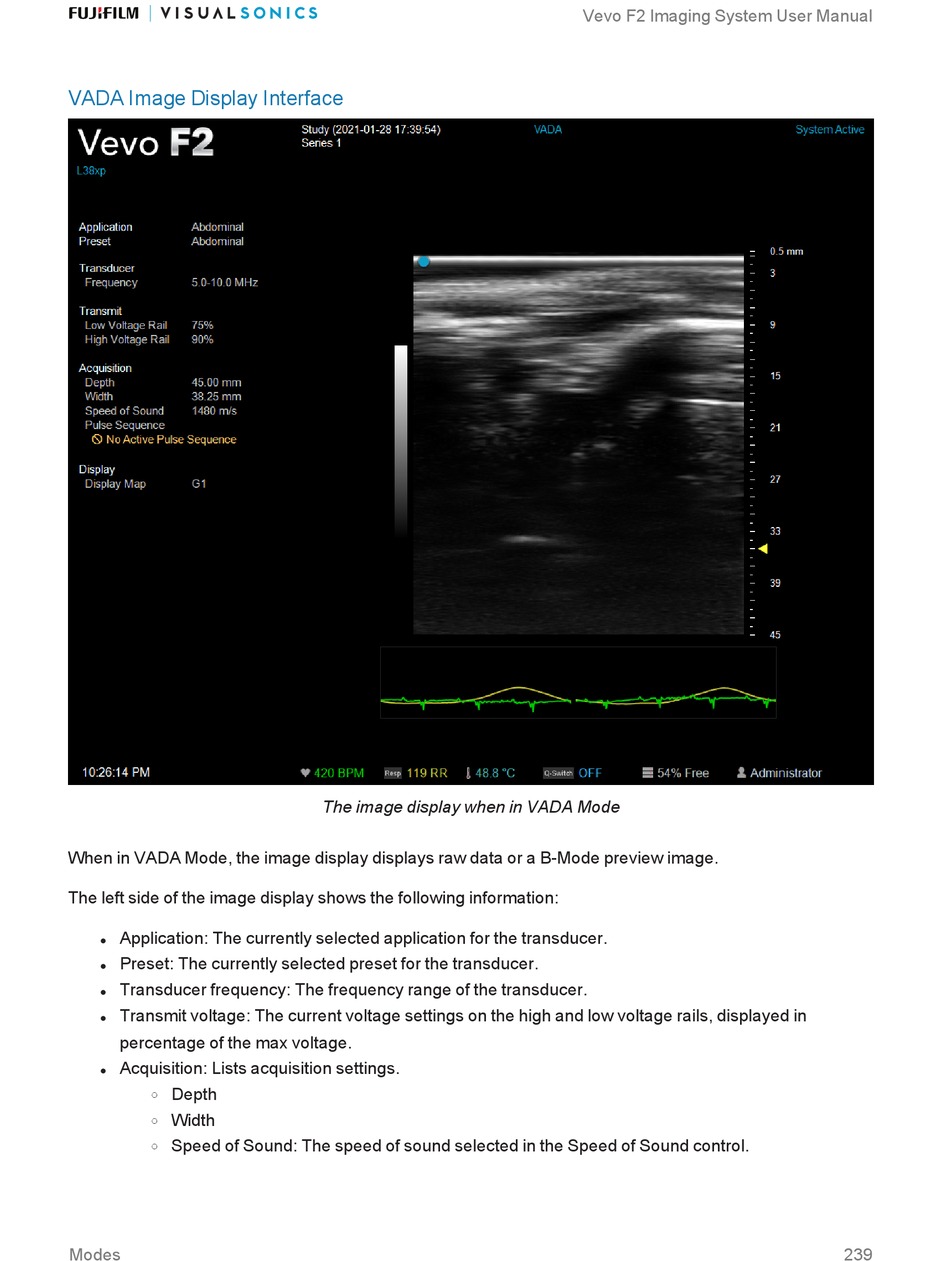

The image display when in VADA Mode
Vevo F2 Imaging System User Manual
239
