Interface

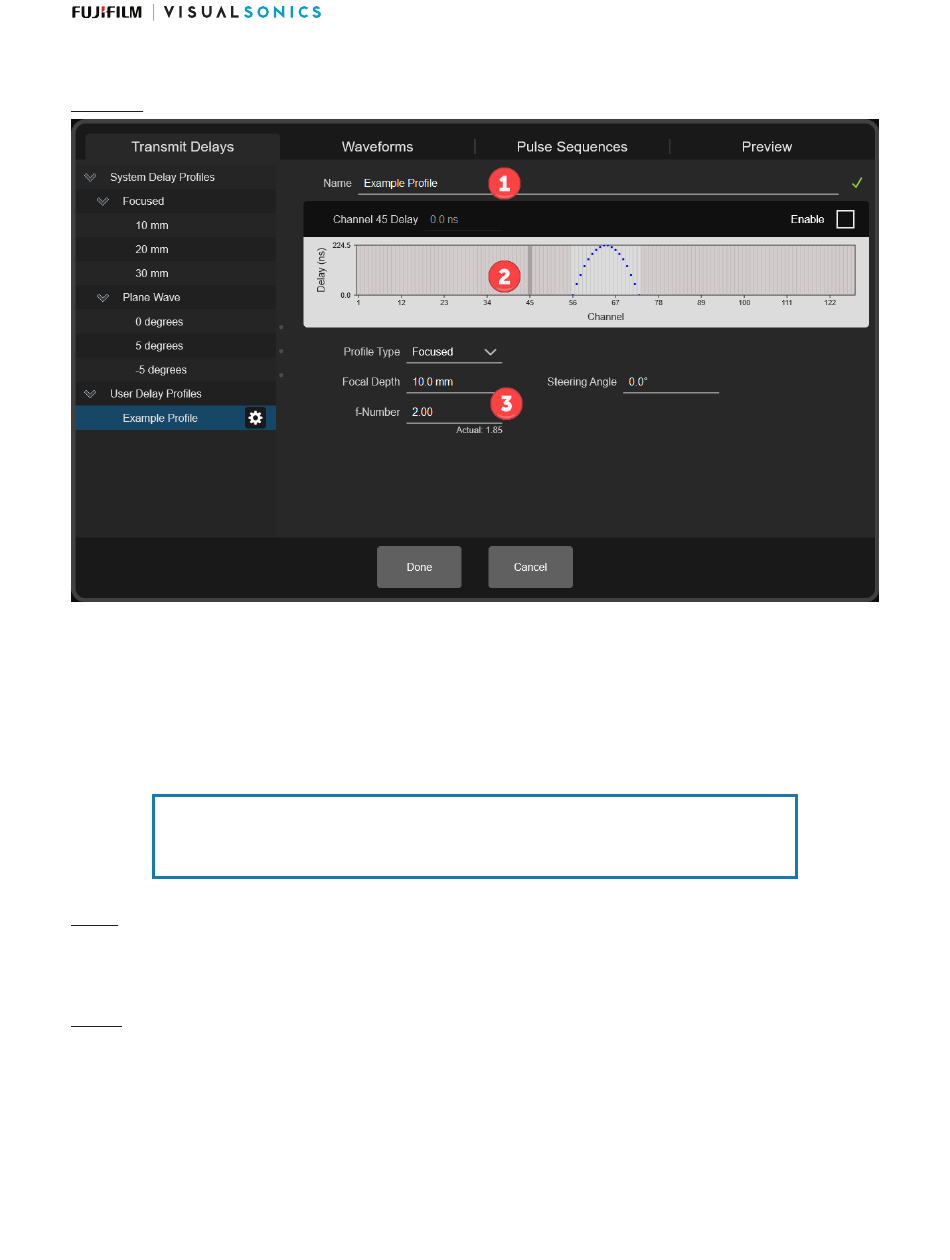

The Transmit Delays menu has three main areas:
1. Name: The name of the transmit delay profile.
2. Graph: A visual representation of the delays in the profile.
3. Details: This area varies depending on the profile type selected.
Note: Portions of this menu may be read-only depending on the profile selected.
For example, the settings of factory-made profiles cannot be edited.
Name
The name of the transmit delay profile. This name is what appears on any list of transmit delays, such as
when selecting a transmit delay in other tabs within the VADA configuration panel.
Graph
A visual representation of the delays in the profile.
Modes
Transmit Delays menu
