White Light from Vevo Optical Fiber
When the flashlamp is on, the Vevo Optical Fiber emits a white light. This light is a by-product of reflections
and scattering from the flashlamp within the laser cart.
If the laser is not firing (Q-Switch disabled), this light has not been amplified and is not dangerous. However,
FUJIFILM VisualSonics still recommends that users never direct the Vevo Optical Fiber towards their eyes.
To Attach the Vevo Fiber Jacket and Vevo Optical Fiber to a Transducer

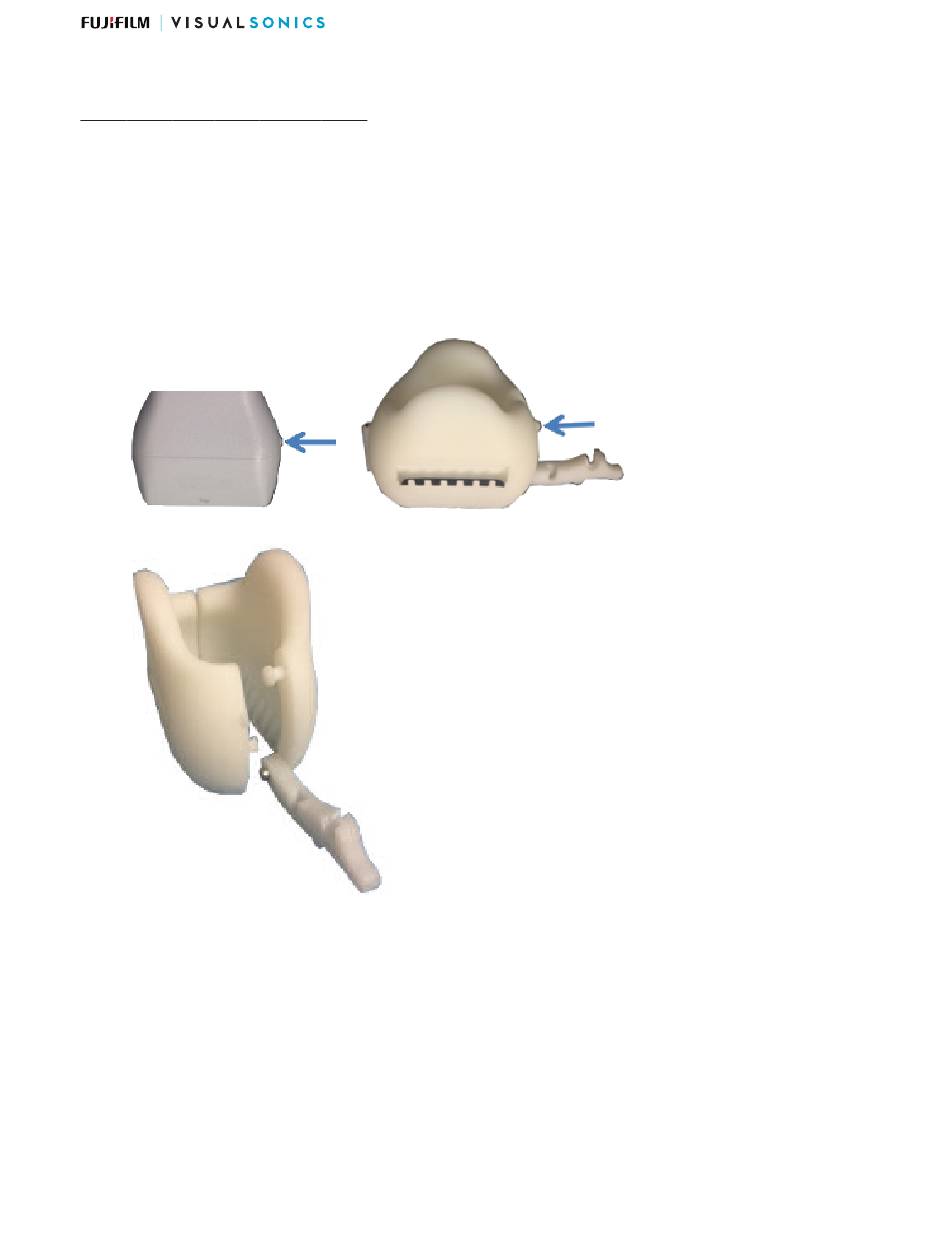

1. Locate the orientation bump on the transducer, and note the similar bump on the fiber jacket. When
the jacket is put on the transducer, make sure that these bumps are on the same side.
2. Open the jacket by pulling the lever slightly open.
3. Insert the transducer in the jacket, and close the jacket. The transducer should settle into a stable
position within the jacket.
4. Close the lever, locking the jacket into place.
