The Voltage flyout menu contains two sliders that control the voltage of the high and low voltage rails.
Note:
Voltages are set as a percentage of maximum voltage permitted for the
active transducer. The slider range may be further reduced based on thermal
considerations for a pulse sequence.
To adjust a voltage, tap and drag a slider up or down as needed.
The top slider controls the high voltage rail.
l
The lower slider controls the low voltage rail.
l
When dragging a slider, an additional bubble (shown above the flyout menu in the diagram) appears above
the flyout menu to show the exact values selected.
Note:
VADA Mode will restart after adjusting a slider.
Modes

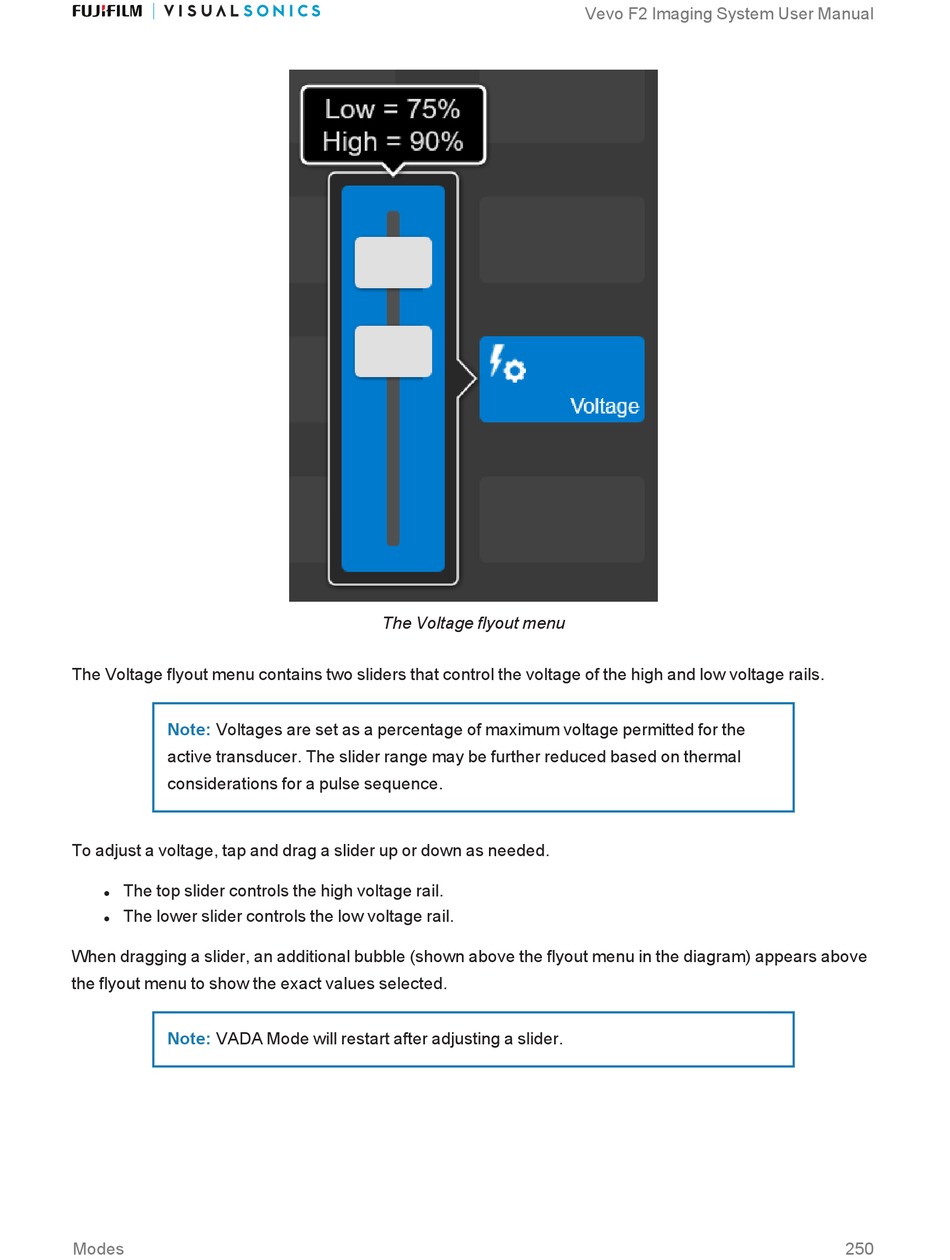

The Voltage flyout menu
Vevo F2 Imaging System User Manual
250
