Pulse sequence: The active pulse sequence.
o
Display Map: The setting selected in the Display Map control.
l
Brightness: (Only displayed when reviewing a live image) The brightness applied to the live image.
l
Contrast: (Only displayed when reviewing a live image) The contrast applied to the live image.
l
VADA Control Panel Interface
The VADA Mode control panel interface has gain and depth sliders, similar to those in B-Mode.
Controls that are specific to VADA Mode are listed in VADA Mode Controls below.
VADA Mode Controls
This section contains a list of controls that appear on the VADA Mode tab of the More Controls menu, or on
the right sidebar of the control panel.
Any control listed here can be added to, or removed from, the right sidebar of the control panel. For more
information, refer to Customizing the Control Panel on page 91.
Modes

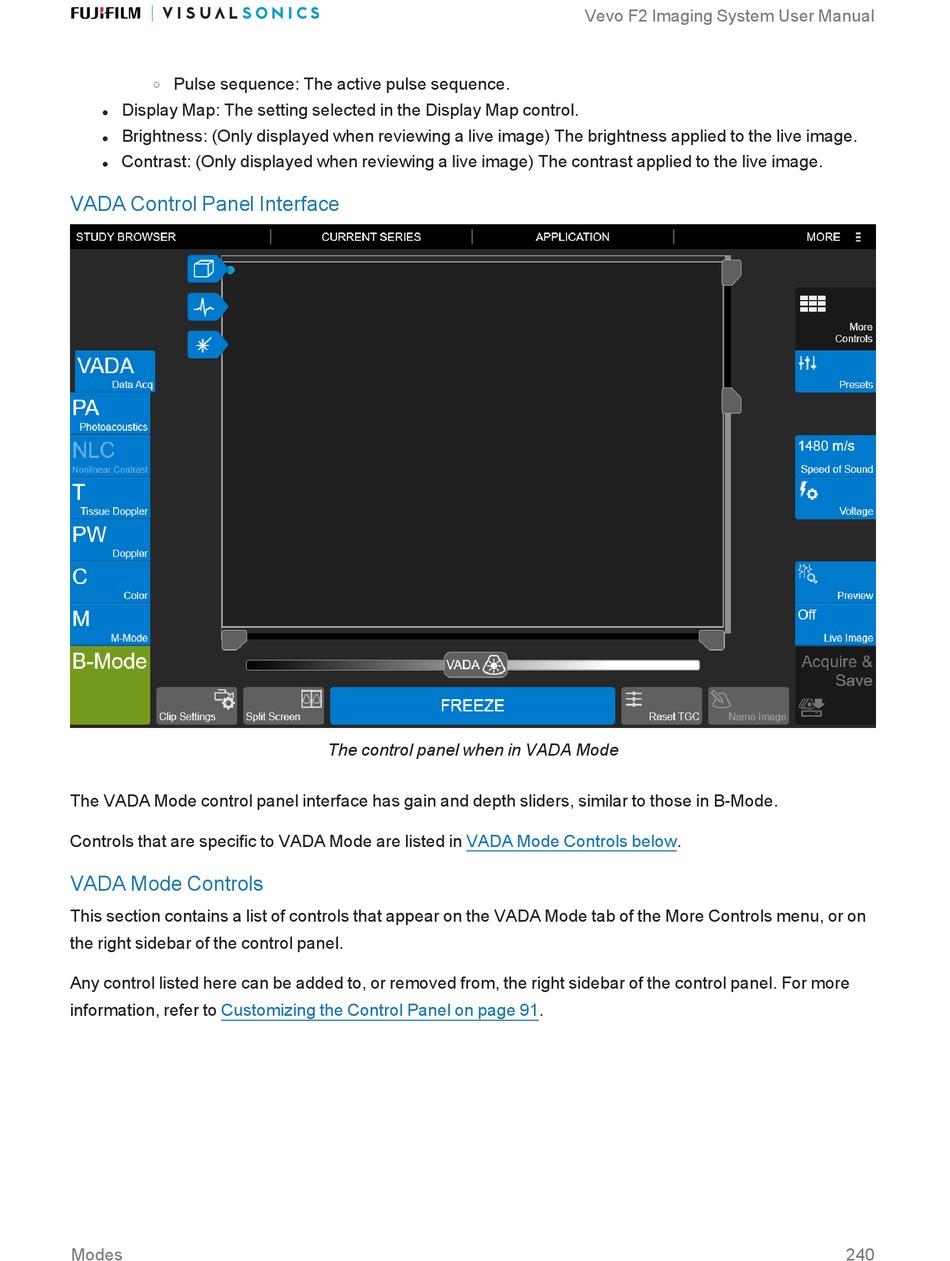

The control panel when in VADA Mode
