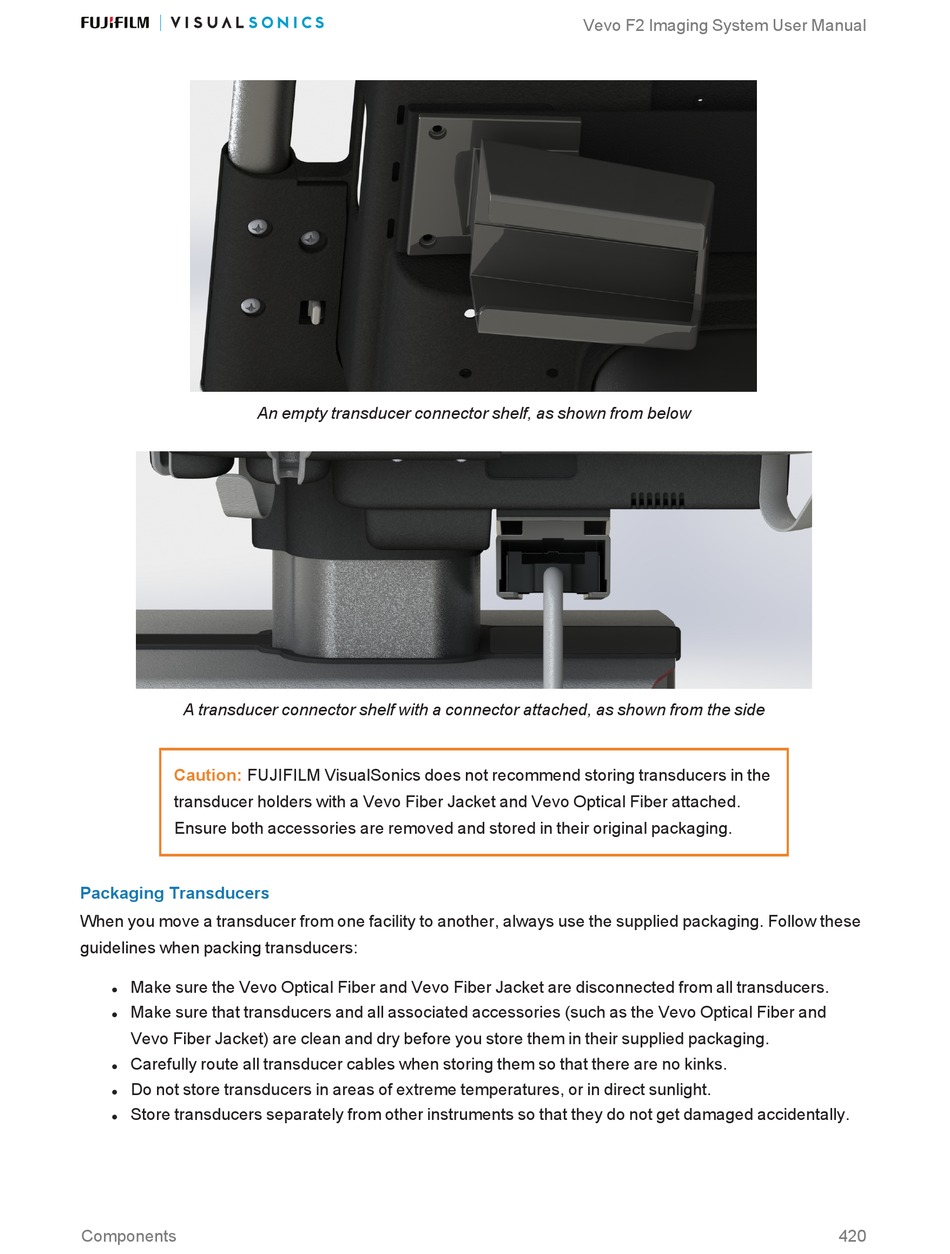

An empty transducer connector shelf, as shown from below
A transducer connector shelf with a connector attached, as shown from the side
Caution: FUJIFILM VisualSonics does not recommend storing transducers in the
transducer holders with a Vevo Fiber Jacket and Vevo Optical Fiber attached.
Ensure both accessories are removed and stored in their original packaging.
Packaging Transducers
When you move a transducer from one facility to another, always use the supplied packaging. Follow these
guidelines when packing transducers:
Make sure the Vevo Optical Fiber and Vevo Fiber Jacket are disconnected from all transducers.
l
Make sure that transducers and all associated accessories (such as the Vevo Optical Fiber and
l
Vevo Fiber Jacket) are clean and dry before you store them in their supplied packaging.
Carefully route all transducer cables when storing them so that there are no kinks.
l
Do not store transducers in areas of extreme temperatures, or in direct sunlight.
l
Store transducers separately from other instruments so that they do not get damaged accidentally.
l
