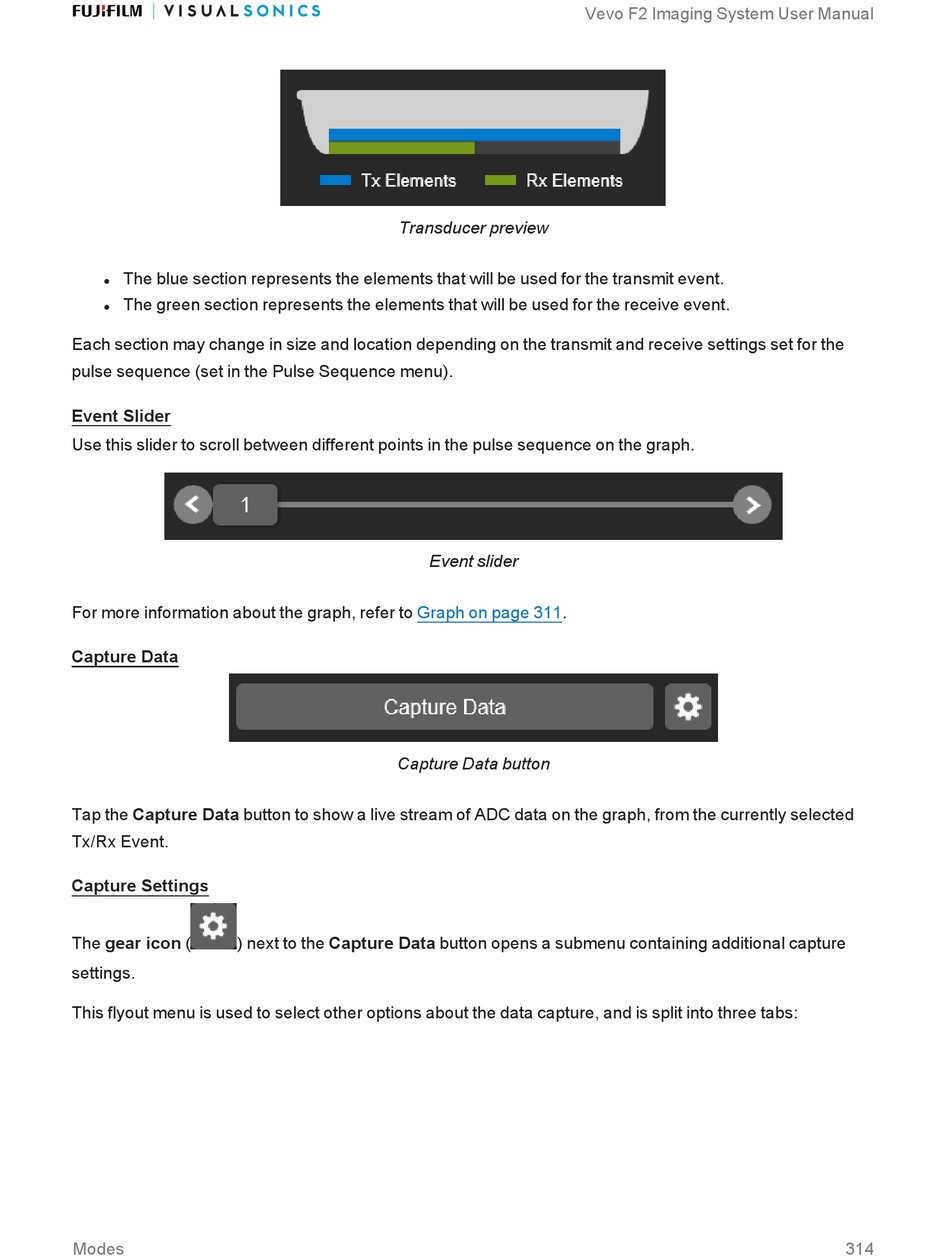

FujiFilm VisualSonics Vevo F2 User Manual page 314

The blue section represents the elements that will be used for the transmit event.
l
The green section represents the elements that will be used for the receive event.
l
Each section may change in size and location depending on the transmit and receive settings set for the
pulse sequence (set in the Pulse Sequence menu).
Event Slider
Use this slider to scroll between different points in the pulse sequence on the graph.
For more information about the graph, refer to Graph on page 311.
Capture Data
Tap the Capture Data button to show a live stream of ADC data on the graph, from the currently selected
Tx/Rx Event.
Capture Settings
The gear icon ( ) next to the Capture Data button opens a submenu containing additional capture
settings.
This flyout menu is used to select other options about the data capture, and is split into three tabs:
Modes
Transducer preview
Event slider
Capture Data button
