Nonlinear Contrast Mode Control Panel Interface

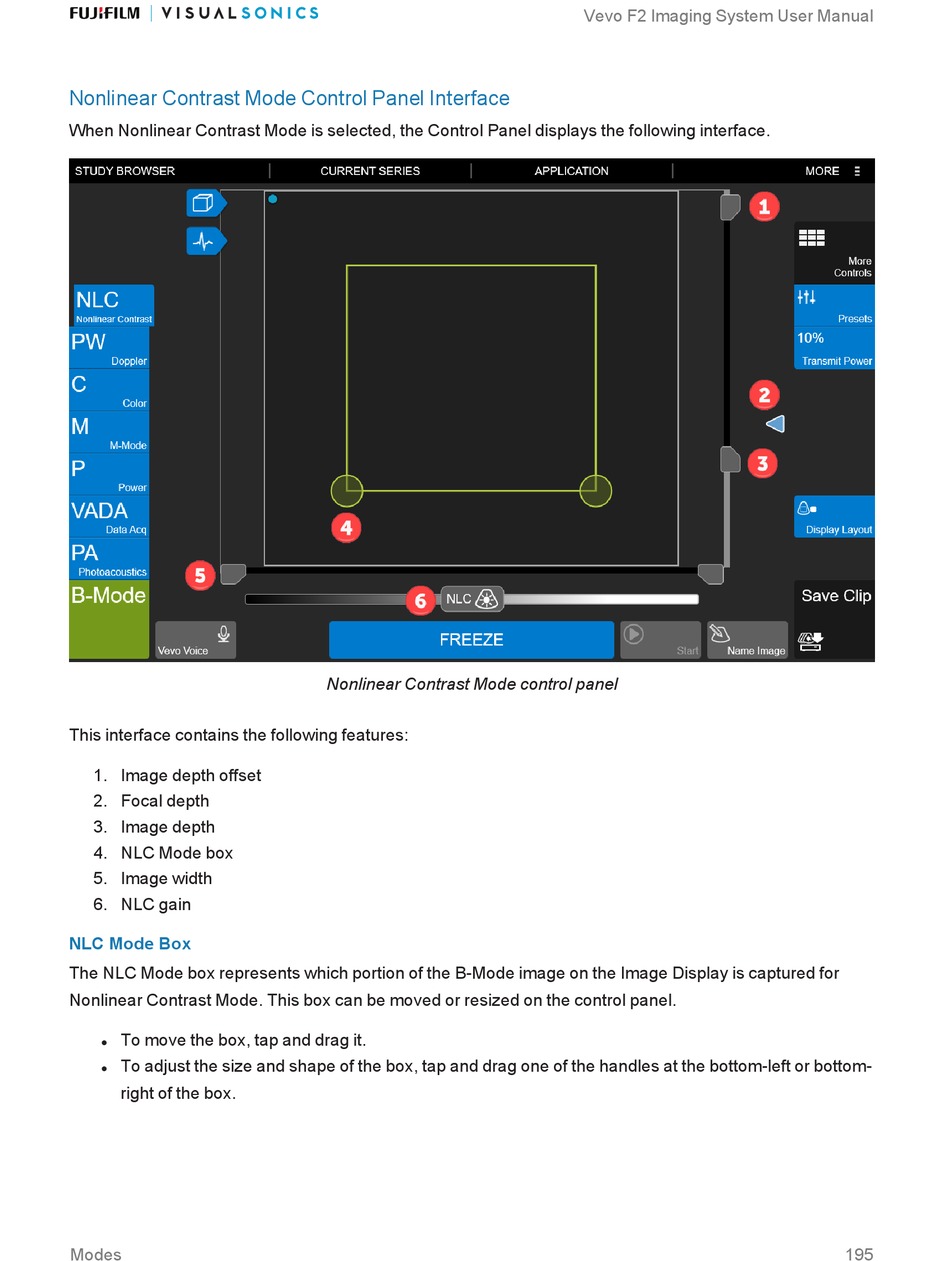

When Nonlinear Contrast Mode is selected, the Control Panel displays the following interface.
This interface contains the following features:
1. Image depth offset
2. Focal depth
3. Image depth
4. NLC Mode box
5. Image width
6. NLC gain
NLC Mode Box
The NLC Mode box represents which portion of the B-Mode image on the Image Display is captured for
Nonlinear Contrast Mode. This box can be moved or resized on the control panel.
To move the box, tap and drag it.
l
To adjust the size and shape of the box, tap and drag one of the handles at the bottom-left or bottom-
l
right of the box.
