There are five view types available:
Cube: Displays a three-dimensional view of the a cquired data, constructed from the full set of image
l
slices. The cube displays a blue wireframe b y default.
Cross: Displays three single, image slice views presented on the x, y, and z planes. Each plane
l
presents its own color outline.
Blue = x-y plane on the z axis
o
Green = y-z plane on the x axis
o
Red = x-z plane on the y axis
o
Transverse: Displays a straight-on perspective of the x-y p lane image. This view is displayed on the
l
Cross view as t he plane outlined in blue.
Sagittal: D isplays a straight-on perspective of the y-z p lane image. This view is displayed on the
l
Cross view as t he plane outlined in green.
Coronal: D isplays a straight-on perspective of the x-z p lane image. This view is displayed on the
l
Cross view as t he plane outlined in red.
Adjusting a View
To Step Through Image Slices
You can step through each of the slices captured during the 3D Mode scan. Each slice corresponds to a
frame.
Modes

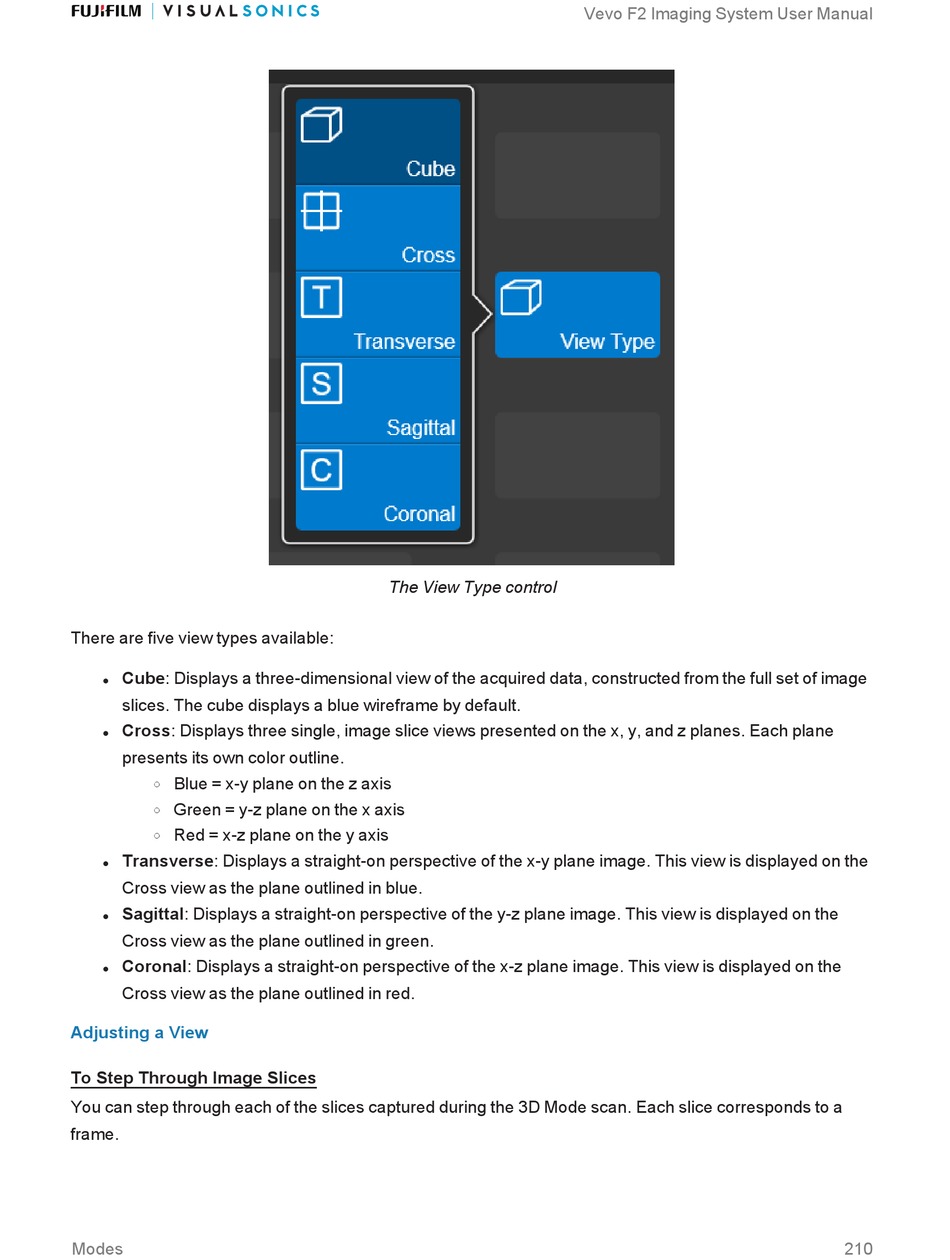

The View Type control
