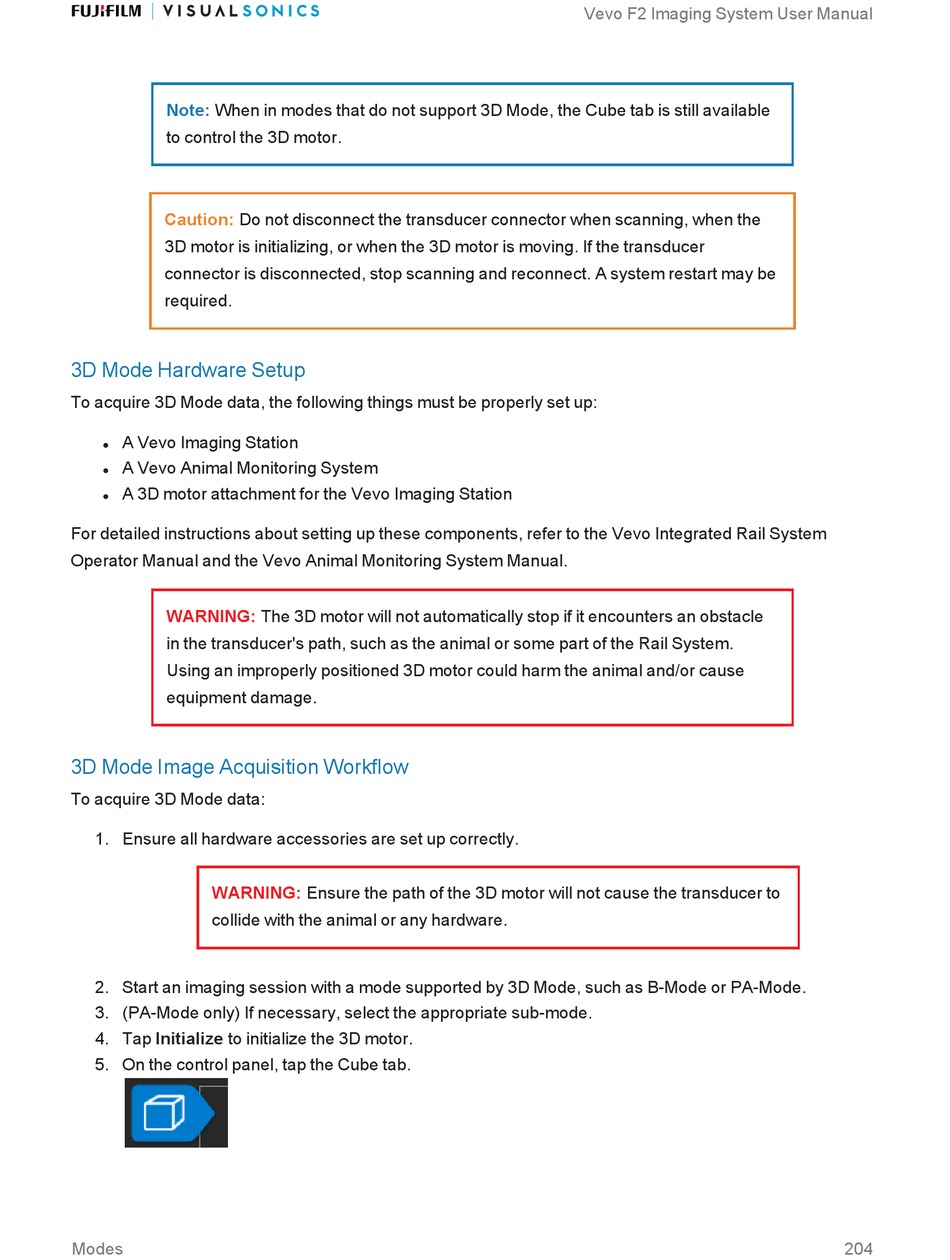

Note:
When in modes that do not support 3D Mode, the Cube tab is still available
to control the 3D motor.
Caution:
Do not disconnect the transducer connector when scanning, when the
3D motor is initializing, or when the 3D motor is moving. If the transducer
connector is disconnected, stop scanning and reconnect. A system restart may be
required.
3D Mode Hardware Setup
To acquire 3D Mode data, the following things must be properly set up:
A Vevo Imaging Station
l
A Vevo Animal Monitoring System
l
A 3D motor attachment for the Vevo Imaging Station
l
For detailed instructions about setting up these components, refer to the Vevo Integrated Rail System
Operator Manual and the Vevo Animal Monitoring System Manual.
WARNING:
in the transducer's path, such as the animal or some part of the Rail System.
Using an improperly positioned 3D motor could harm the animal and/or cause
equipment damage.
3D Mode Image Acquisition Workflow
To acquire 3D Mode data:
1. Ensure all hardware accessories are set up correctly.
WARNING:
collide with the animal or any hardware.
2. Start an imaging session with a mode supported by 3D Mode, such as B-Mode or PA-Mode.
3. (PA-Mode only) If necessary, select the appropriate sub-mode.
4. Tap Initialize to initialize the 3D motor.
5. On the control panel, tap the Cube tab.
Modes
The 3D motor will not automatically stop if it encounters an obstacle
Ensure the path of the 3D motor will not cause the transducer to
Vevo F2 Imaging System User Manual
204
