Waveform Loop
A Waveform Loop block cycles through a user-selected list of waveforms until each item in the list has run
once. Users can also set the Tx/Rx Event contained in the loop to use the waveform profile in the loop
instead of the waveform set in the Tx/Rx Event.
For example, if a Tx/Rx Event block is inside a Waveform Loop, and the Waveform Loop has the following
settings:
1. Negative - 1 Cycle
2. Positive - 1 Cycle
With these settings, and if the Tx/Rx Event is set to use waveform specified in the loop, the pulse sequence
will run the same Tx/Rx Event two times, using the following waveforms:
1. The first event runs with the "Negative - 1 Cycle" waveform.
2. The second event runs with the "Positive - 1 Cycle" waveform.
When this loop is used and contains a Tx/Rx Event, the Waveform drop-down list when editing the Tx/Rx
Event has an additional option to use the waveforms defined in the loop:
Modes

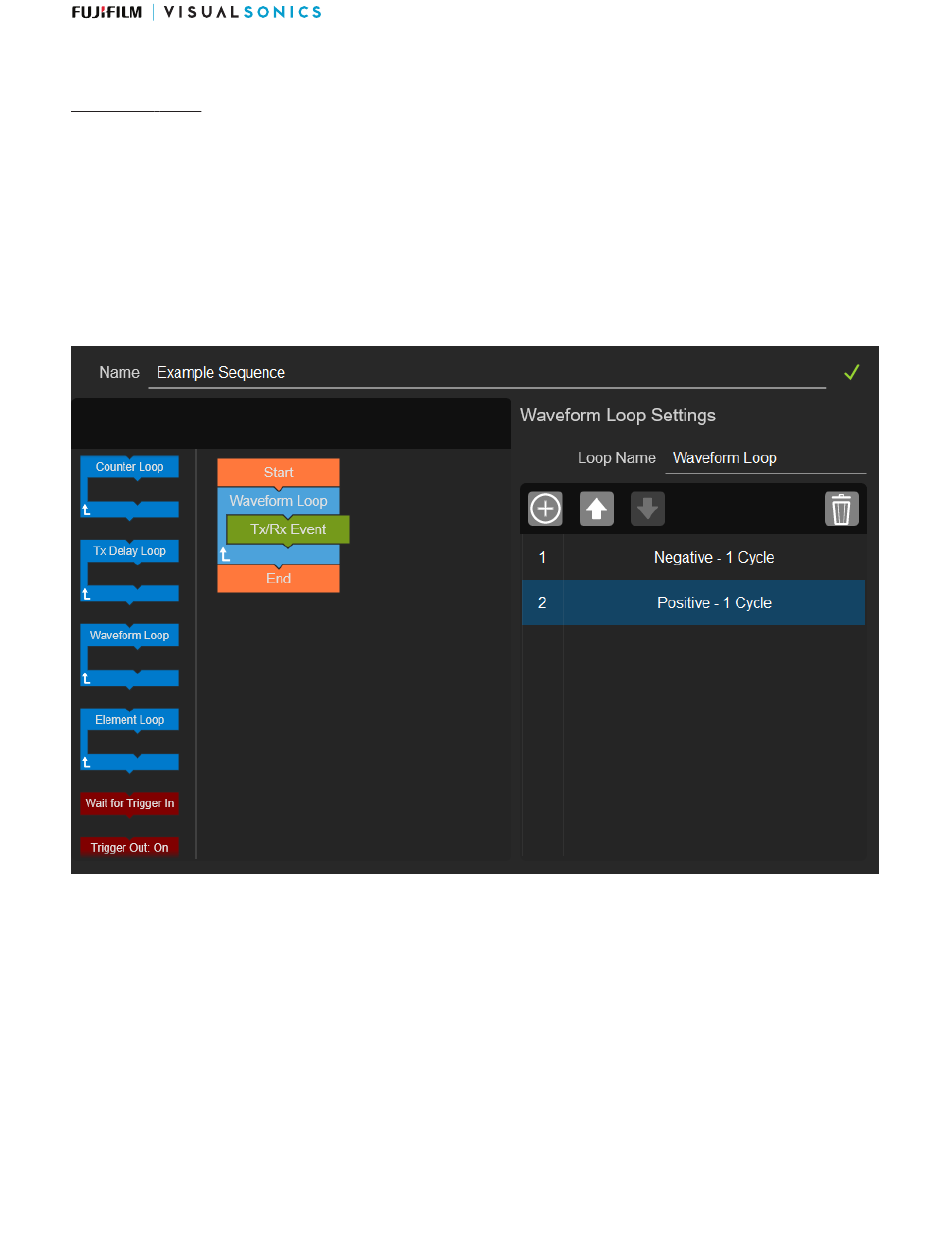

The Pulse Sequences menu with the above settings
