Vevo F2 Imaging System User Manual
How Respiration Gating Works
Respiration gating instructs the imaging system to record image data only when the subject is between
breaths, which is when the body moves the least from breathing. To do this, the user must first identify this
point in the breathing cycle from physiological data, and set that point in the system.

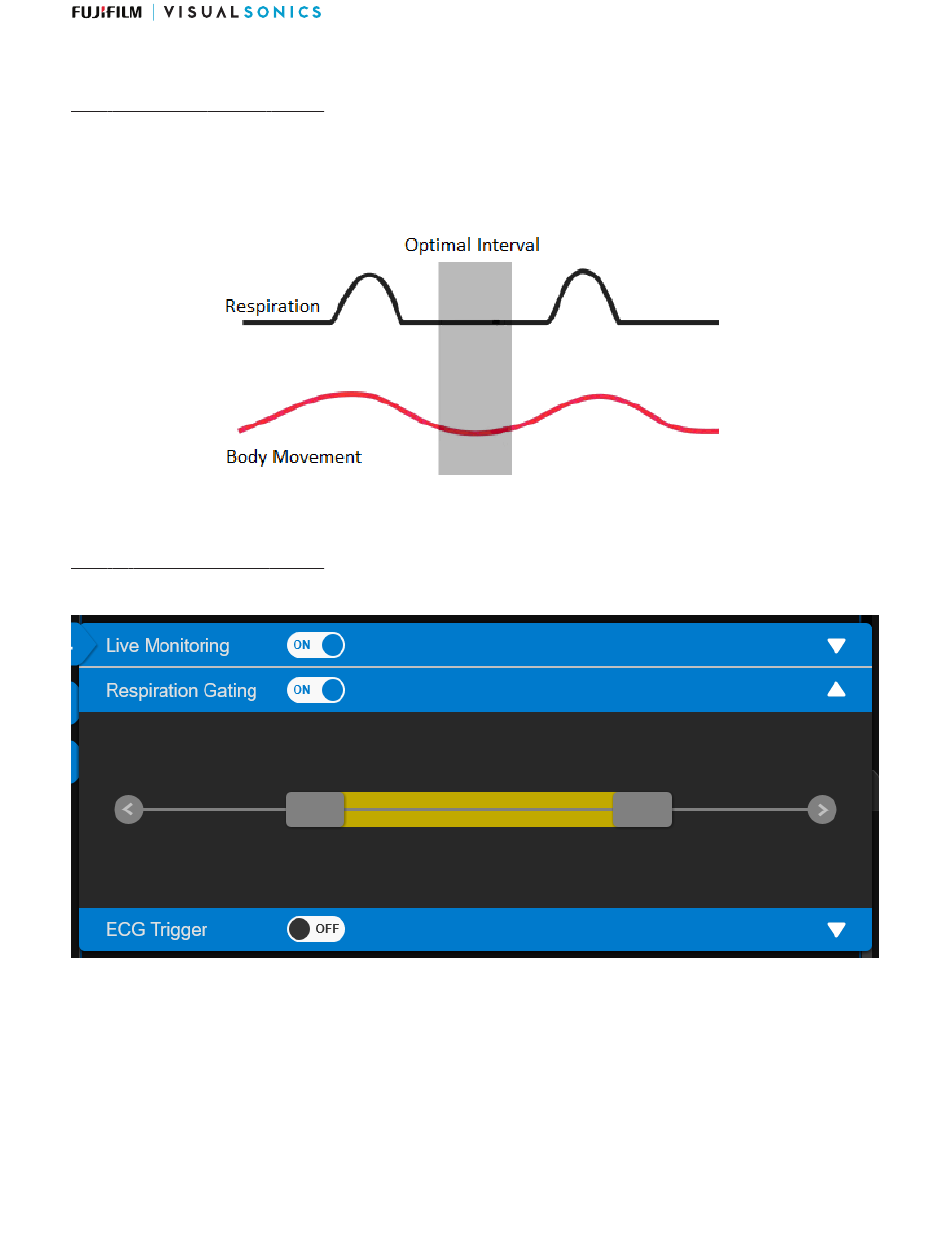

With proper respiration gating, the imaging system only captures data during the shaded area
How to Use Respiration Gating
Respiration gating is set in the Respiration Gating section of the Physiology panel.
The Respiration Gating panel
Session Tasks 52
