While the image display varies slightly depending on the current imaging mode, it always displays several
categories of data:
Imaging information: Contains information such as the name of the study, series, image name,
l
imaging mode, transducer used, as well as various imaging parameters.
Image: The current image. This can be a live image or a previously saved image.
l
Animal physiology: Displays the animal's vital signs.
l
Note: For more information about the image display layout, refer to Image Display
on page 36.
Control Panel
The control panel is a touchscreen that displays the Vevo F2 user interface.
Introduction

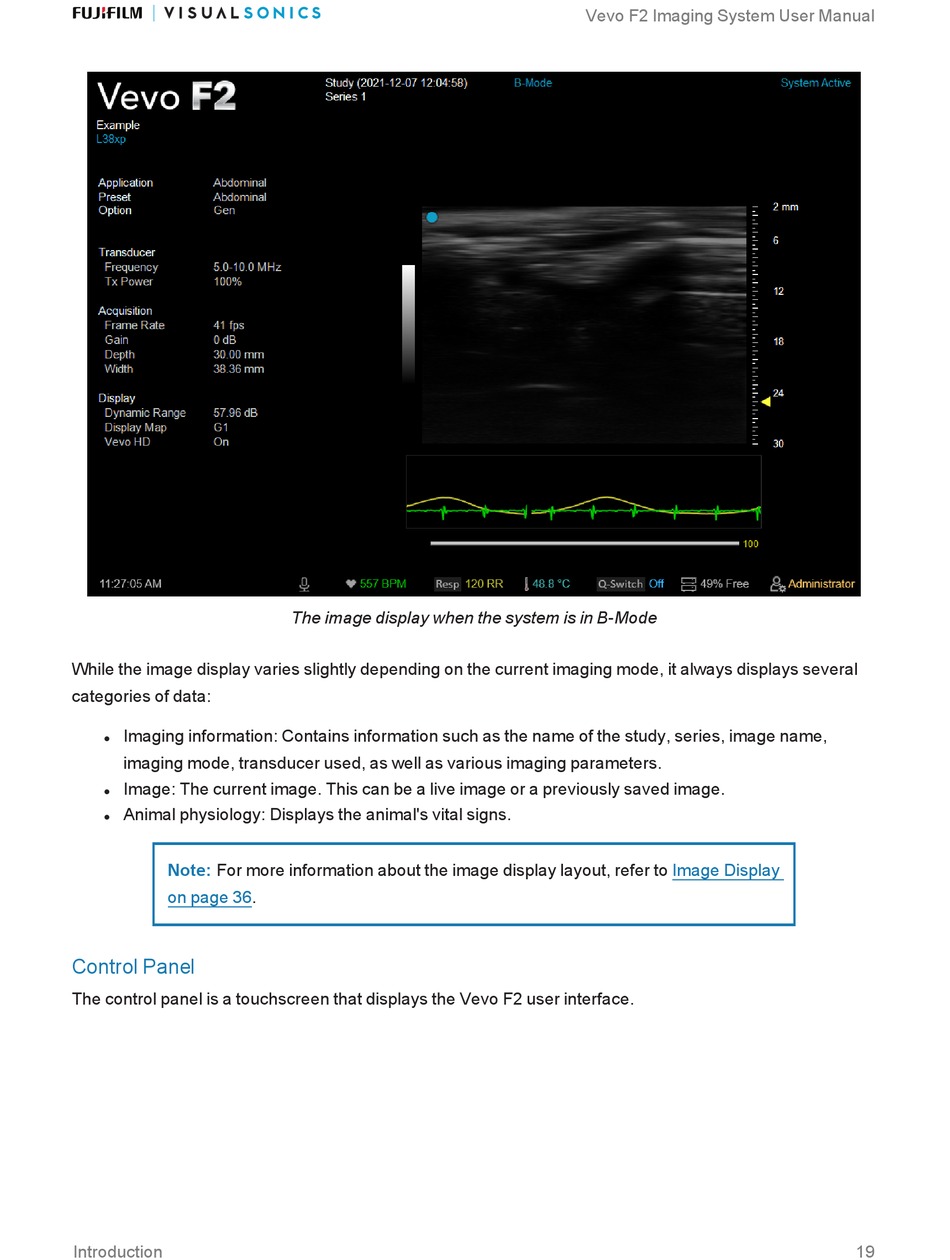

The image display when the system is in B-Mode
Vevo F2 Imaging System User Manual
19
