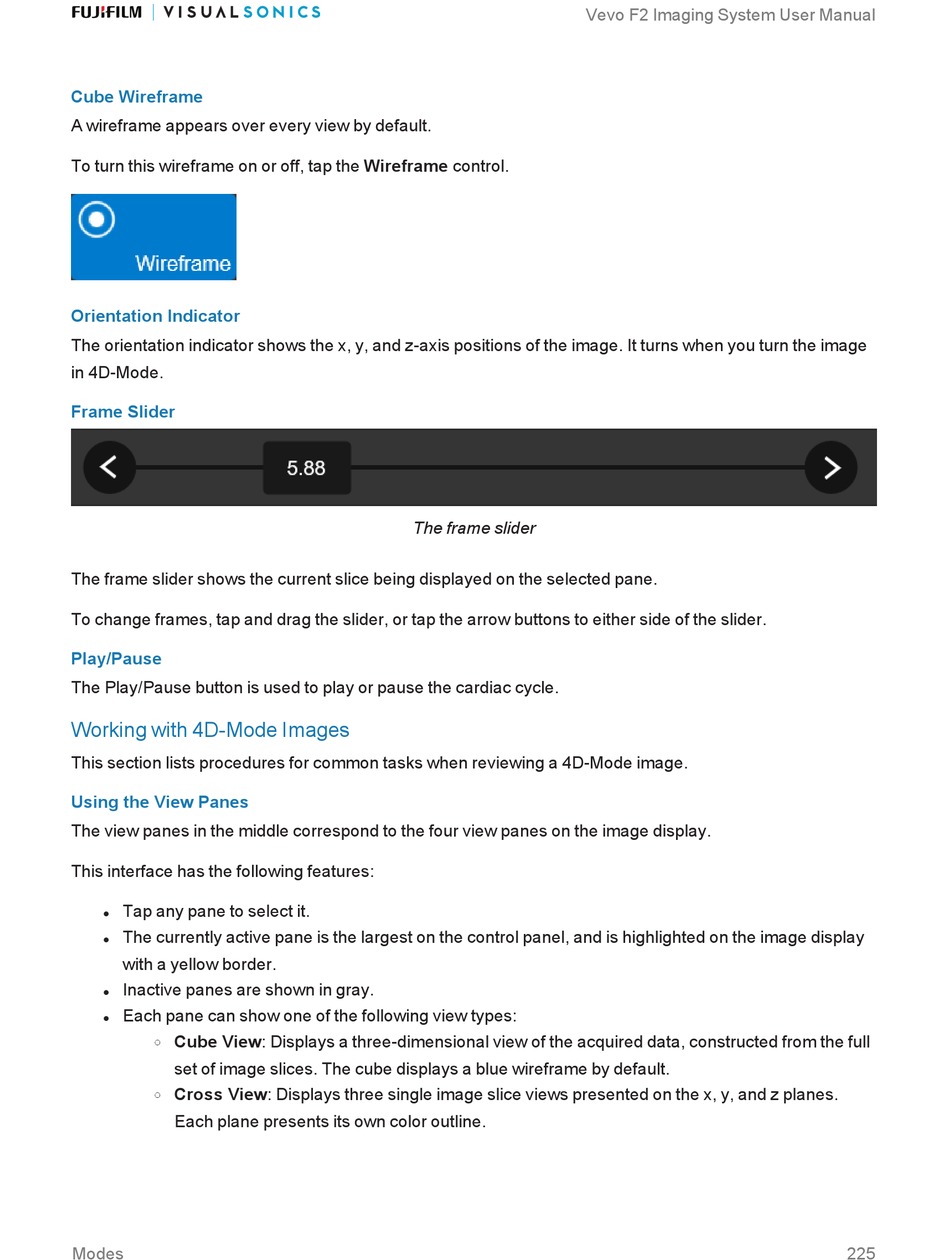

FujiFilm VisualSonics Vevo F2 User Manual page 225

Cube Wireframe
A wireframe appears over every view by default.
To turn this wireframe on or off, tap the Wireframe control.
Orientation Indicator
The orientation indicator shows the x, y, and z-axis positions of the image. It turns when you turn the image
in 4D-Mode.
Frame Slider
The frame slider shows the current slice being displayed on the selected pane.
To change frames, tap and drag the slider, or tap the arrow buttons to either side of the slider.
Play/Pause
The Play/Pause button is used to play or pause the cardiac cycle.
Working with 4D-Mode Images
This section lists procedures for common tasks when reviewing a 4D-Mode image.
Using the View Panes
The view panes in the middle correspond to the four view panes on the image display.
This interface has the following features:
Tap any pane to select it.
l
The currently active pane is the largest on the control panel, and is highlighted on the image display
l
with a yellow border.
Inactive panes are shown in gray.
l
Each pane can show one of the following view types:
l
Cube View: Displays a three-dimensional view of the acquired data, constructed from the full
o
set of image slices. The cube displays a blue wireframe by default.
Cross View: Displays three single image slice views presented on the x, y, and z planes.
o
Each plane presents its own color outline.
Modes
