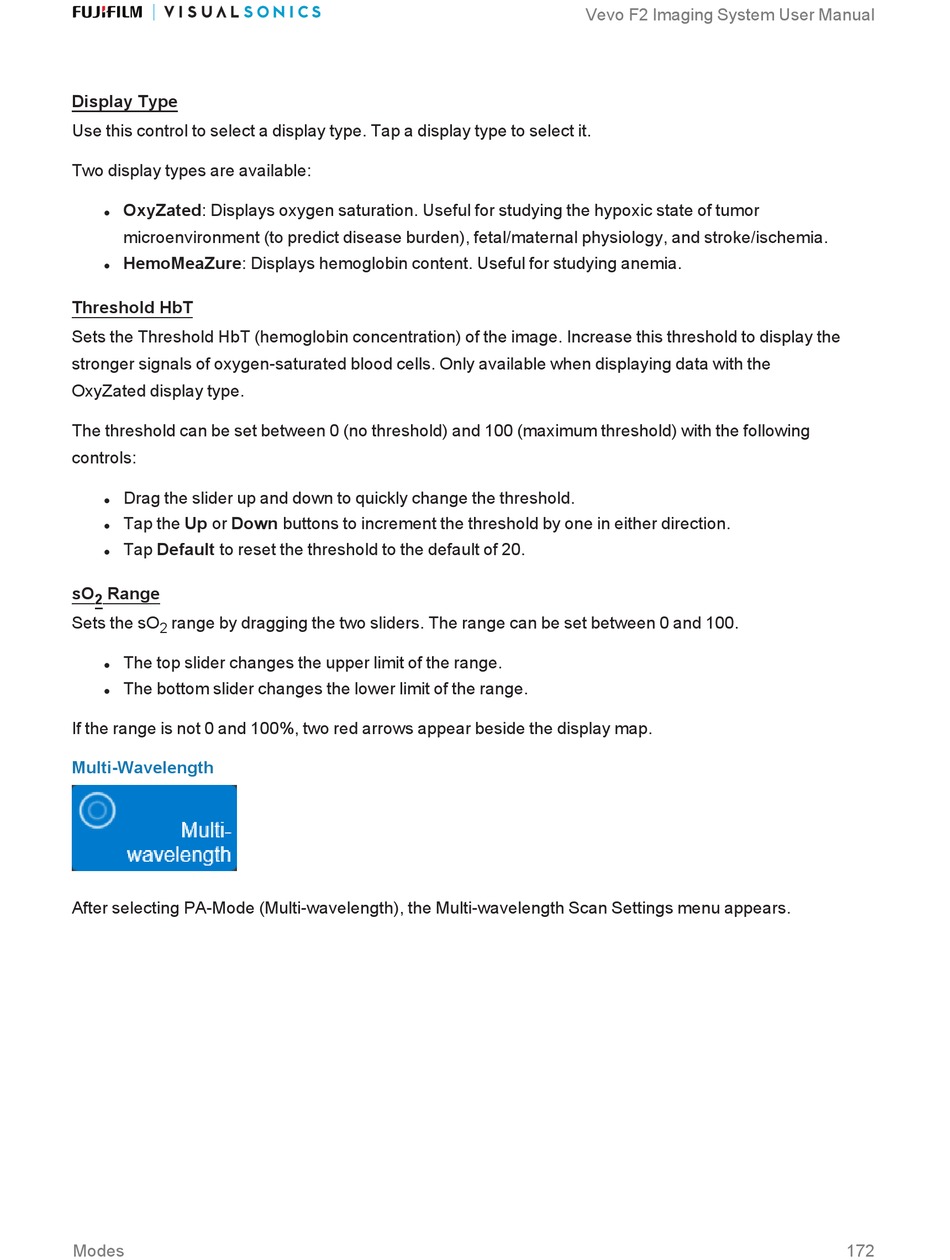

FujiFilm VisualSonics Vevo F2 User Manual page 172

Display Type
Use this control to select a display type. Tap a display type to select it.
Two display types are available:
OxyZated: Displays oxygen saturation. Useful for studying the hypoxic state of tumor
l
microenvironment (to predict disease burden), fetal/maternal physiology, and stroke/ischemia.
HemoMeaZure: Displays hemoglobin content. Useful for studying anemia.
l
Threshold HbT
Sets the Threshold HbT (hemoglobin concentration) of the image. Increase this threshold to display the
stronger signals of oxygen-saturated blood cells. Only available when displaying data with the
OxyZated display type.
The threshold can be set between 0 (no threshold) and 100 (maximum threshold) with the following
controls:
Drag the slider up and down to quickly change the threshold.
l
Tap the Up or Down buttons to increment the threshold by one in either direction.
l
Tap Default to reset the threshold to the default of 20.
l
sO Range
2
Sets the sO range by dragging the two sliders. The range can be set between 0 and 100.
2
The top slider changes the upper limit of the range.
l
The bottom slider changes the lower limit of the range.
l
If the range is not 0 and 100%, two red arrows appear beside the display map.
Multi-Wavelength
After selecting PA-Mode (Multi-wavelength), the Multi-wavelength Scan Settings menu appears.
Modes
