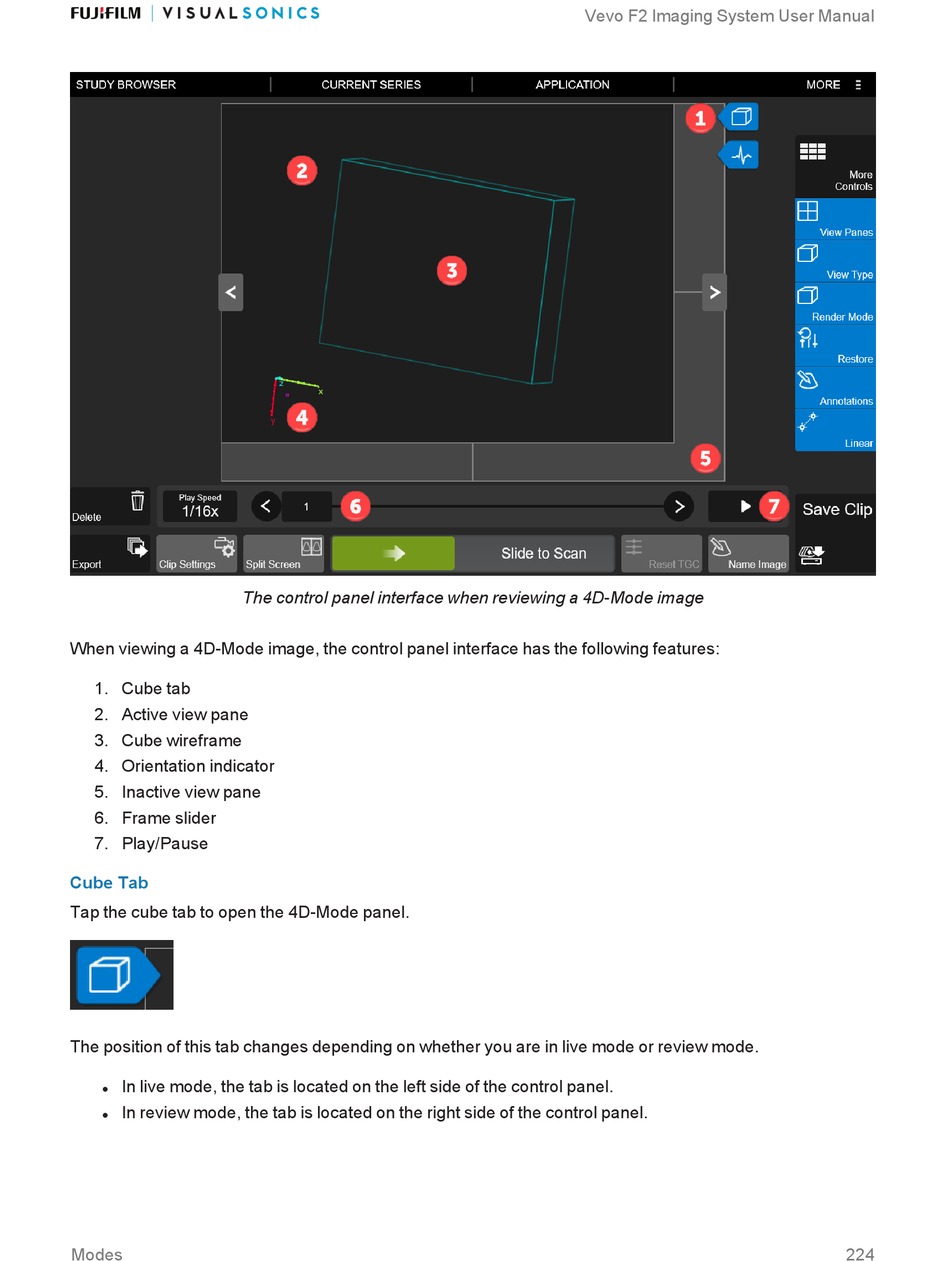

The control panel interface when reviewing a 4D-Mode image
When viewing a 4D-Mode image, the control panel interface has the following features:
1. Cube tab
2. Active view pane
3. Cube wireframe
4. Orientation indicator
5. Inactive view pane
6. Frame slider
7. Play/Pause
Cube Tab
Tap the cube tab to open the 4D-Mode panel.
The position of this tab changes depending on whether you are in live mode or review mode.
In live mode, the tab is located on the left side of the control panel.
l
In review mode, the tab is located on the right side of the control panel.
l
Modes
Vevo F2 Imaging System User Manual
224
