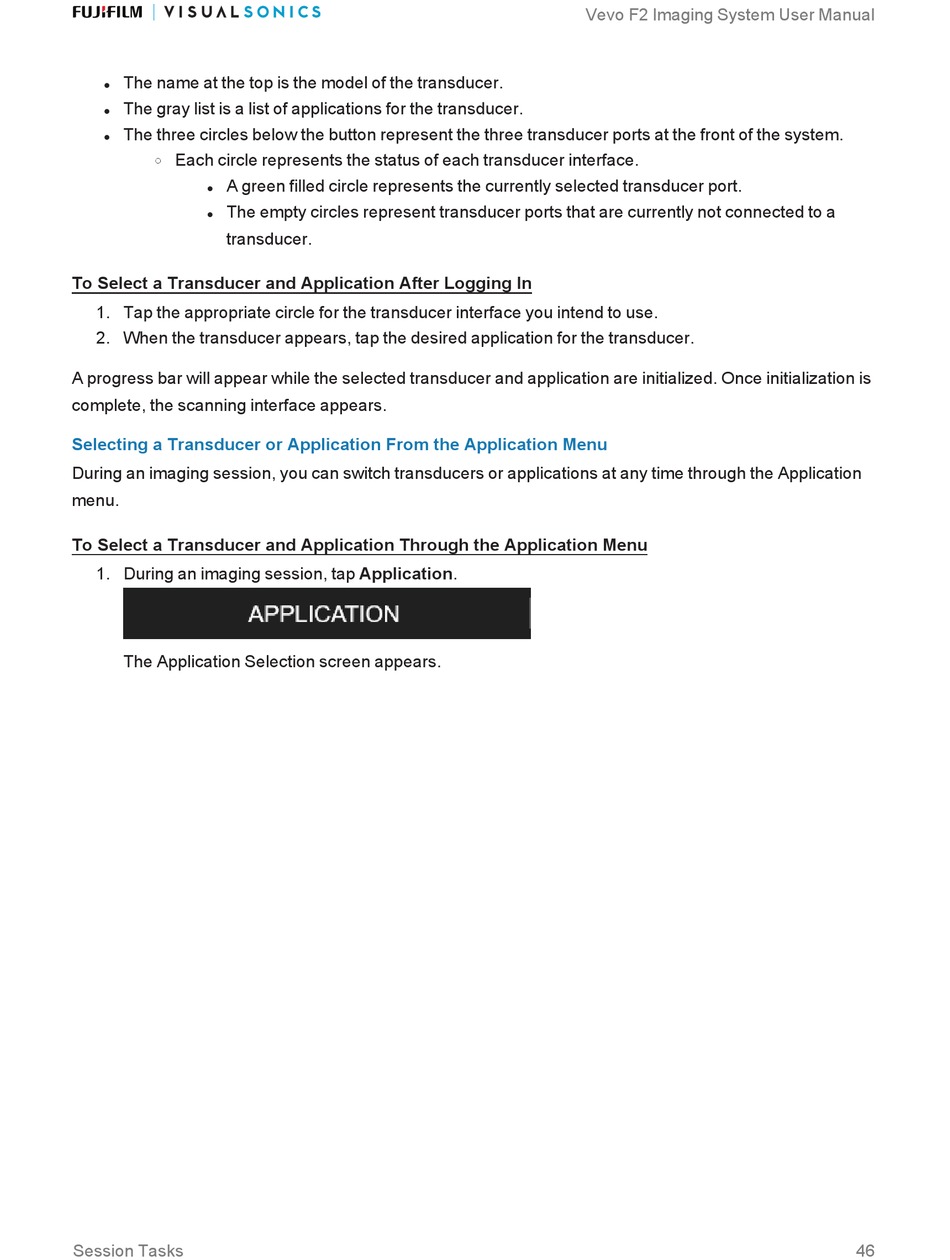

FujiFilm VisualSonics Vevo F2 User Manual page 46

The name at the top is the model of the transducer.
l
The gray list is a list of applications for the transducer.
l
The three circles below the button represent the three transducer ports at the front of the system.
l
Each circle represents the status of each transducer interface.
o
A green filled circle represents the currently selected transducer port.
l
The empty circles represent transducer ports that are currently not connected to a
l
transducer.
To Select a Transducer and Application After Logging In
1. Tap the appropriate circle for the transducer interface you intend to use.
2. When the transducer appears, tap the desired application for the transducer.
A progress bar will appear while the selected transducer and application are initialized. Once initialization is
complete, the scanning interface appears.
Selecting a Transducer or Application From the Application Menu
During an imaging session, you can switch transducers or applications at any time through the Application
menu.
To Select a Transducer and Application Through the Application Menu
1. During an imaging session, tap Application.
The Application Selection screen appears.
