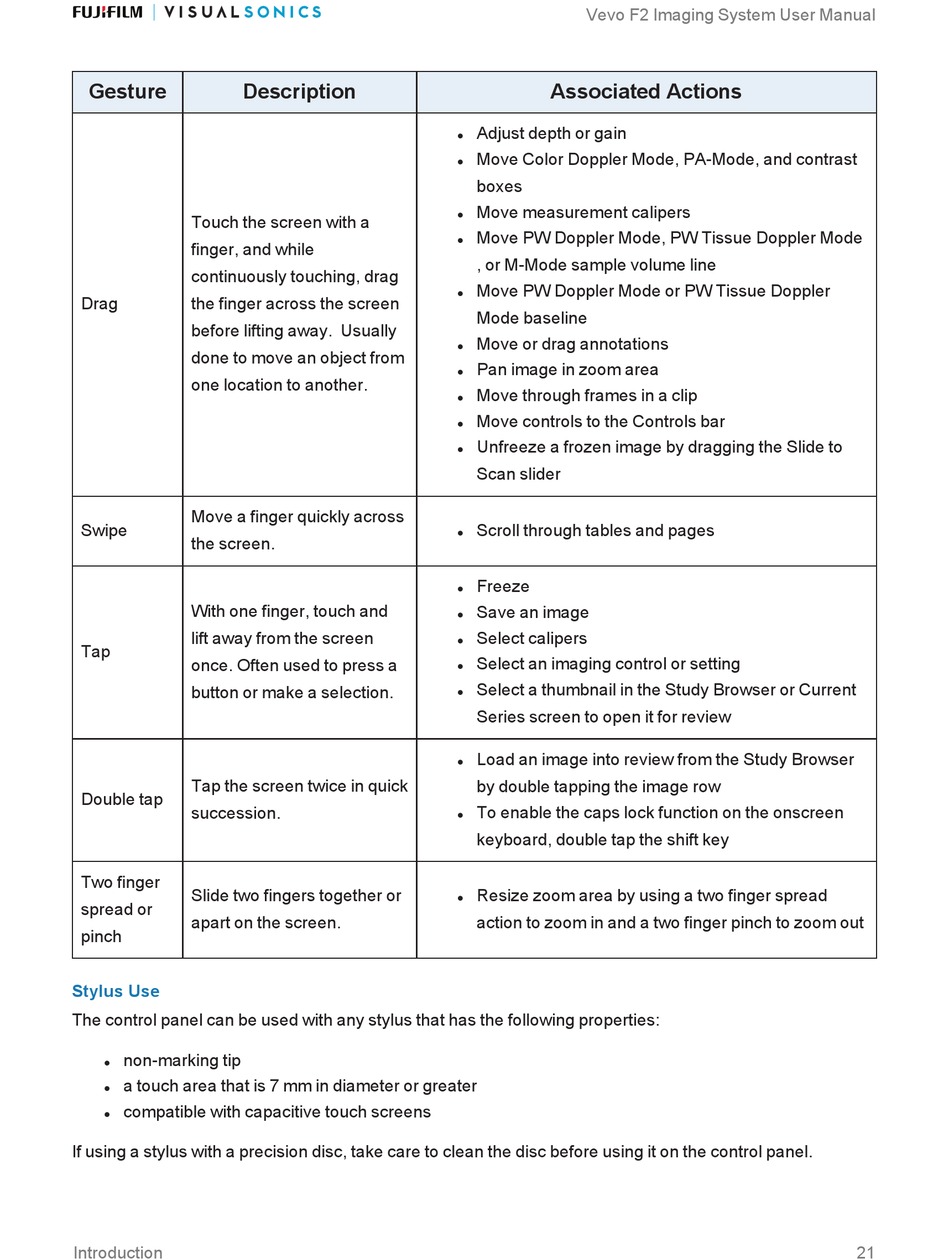

Gesture Description
Touch the screen with a
finger, and while
continuously touching, drag
Drag the finger across the screen
before lifting away. Usually
done to move an object from
one location to another.
Move a finger quickly across
Swipe
the screen.
With one finger, touch and
lift away from the screen
Tap
once. Often used to press a
button or make a selection.
Tap the screen twice in quick
Double tap
succession.
Two finger
Slide two fingers together or
spread or
apart on the screen.
pinch
Stylus Use
The control panel can be used with any stylus that has the following properties:
non-marking tip
l
a touch area that is 7 mm in diameter or greater
l
compatible with capacitive touch screens
l
If using a stylus with a precision disc, take care to clean the disc before using it on the control panel.
Introduction
Vevo F2 Imaging System User Manual
Associated Actions
Adjust depth or gain
l
Move Color Doppler Mode, PA-Mode, and contrast
l
boxes
Move measurement calipers
l
Move PW Doppler Mode, PW Tissue Doppler Mode
l
, or M-Mode sample volume line
Move PW Doppler Mode or PW Tissue Doppler
l
Mode baseline
Move or drag annotations
l
Pan image in zoom area
l
Move through frames in a clip
l
Move controls to the Controls bar
l
Unfreeze a frozen image by dragging the S lide to
l
Scan s lider
Scroll through tables and pages
l
Freeze
l
Save an image
l
Select calipers
l
Select an imaging control or setting
l
Select a thumbnail in the Study Browser or Current
l
Series screen to open it for review
Load an image into review from the Study Browser
l
by double tapping the image row
To enable the caps lock function on the onscreen
l
keyboard, double tap the shift key
Resize zoom area by using a two finger spread
l
action to zoom in and a two finger pinch to zoom out
21
