B-Mode
B-Mode is the default imaging mode for the Vevo F2 Imaging System. This mode displays echoes in a two-
dimensional view by assigning a brightness level based on echo signal amplitude.
B-Mode is the most common imaging mode because it is the most effective mode for locating anatomical
structures. Conventional ultrasound images are typically made in B-Mode.
B-Mode is also used as:
A background image over which other active mode data is applied.
l
A real-time orientation view for guiding the transducer to a desired location.
l
A visual guide for needle injections.
l
B-Mode Image Display Interface
For an overview of the clinical image display when in B-Mode, refer to Image Display on page 36.
B-Mode Control Panel Interface
The mode-specific controls for B-Mode are split into several categories:
1. Orientation
2. Depth Controls
3. Width Controls
4. Gain Controls
Modes

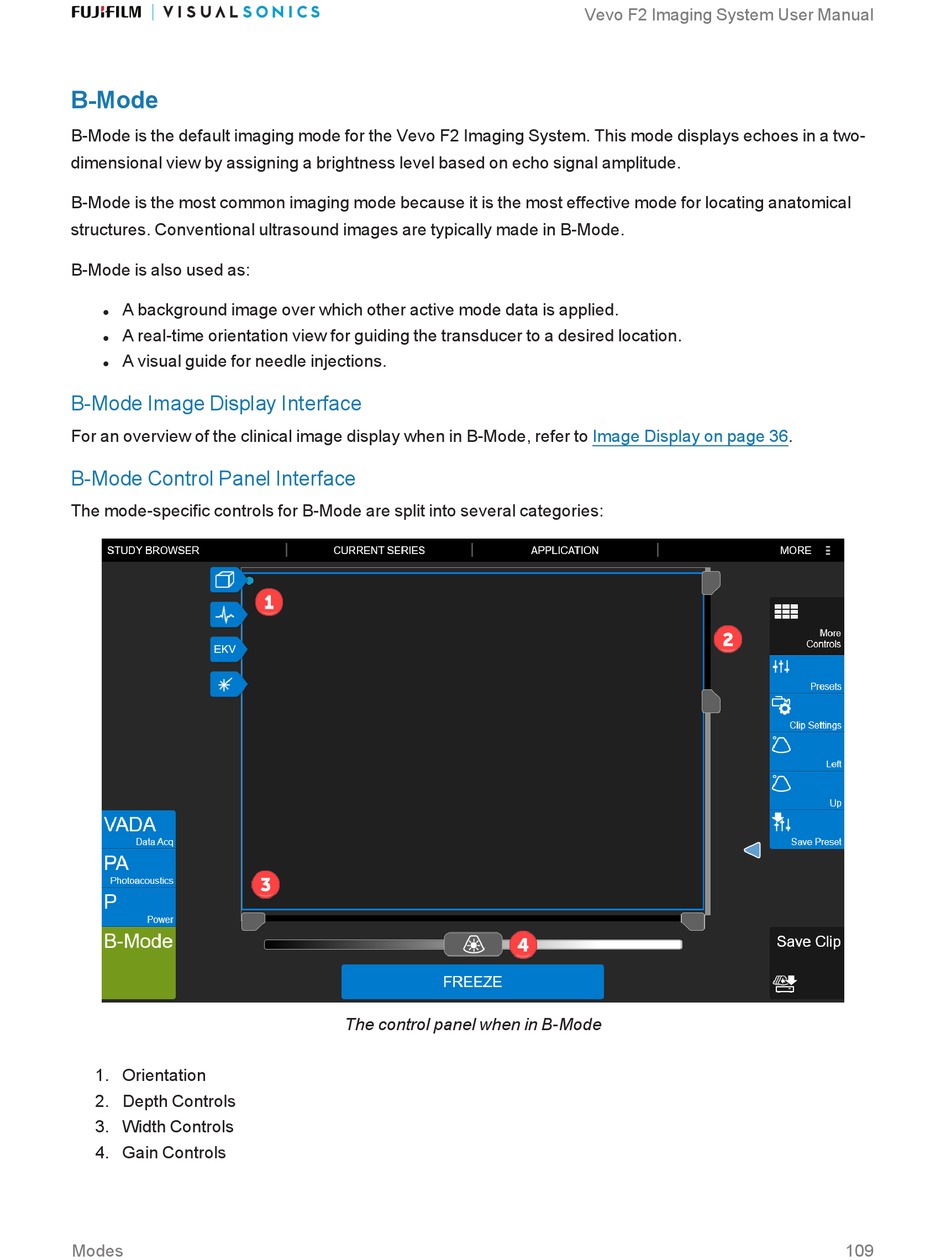

The control panel when in B-Mode
