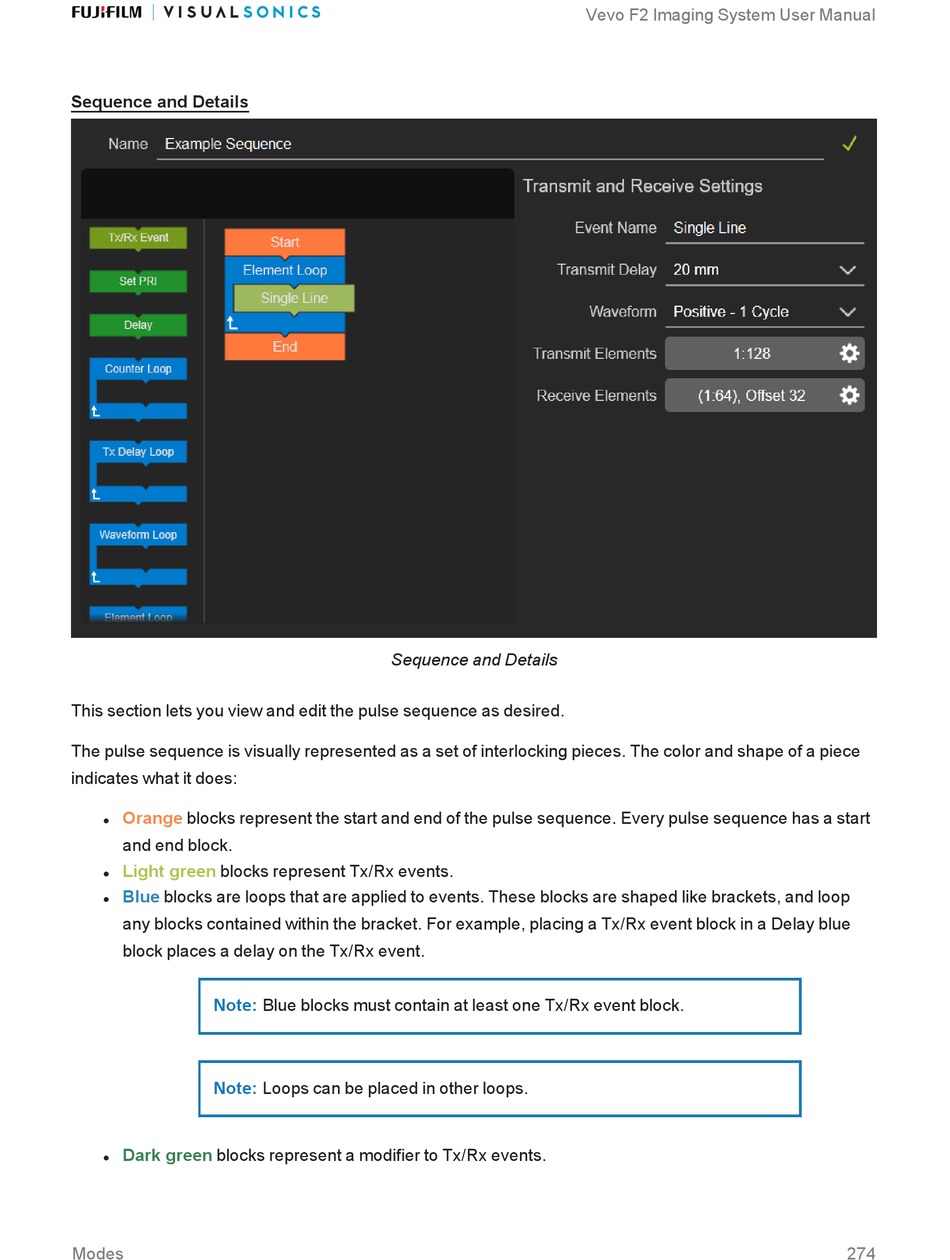

Sequence and Details
This section lets you view and edit the pulse sequence as desired.
The pulse sequence is visually represented as a set of interlocking pieces. The color and shape of a piece
indicates what it does:
Orange blocks represent the start and end of the pulse sequence. Every pulse sequence has a start
l
and end block.
Light green blocks represent Tx/Rx events.
l
Blue blocks are loops that are applied to events. These blocks are shaped like brackets, and loop
l
any blocks contained within the bracket. For example, placing a Tx/Rx event block in a Delay blue
block places a delay on the Tx/Rx event.
Note:
Note:
Dark green blocks represent a modifier to Tx/Rx events.
l
Modes
Sequence and Details
Blue blocks must contain at least one Tx/Rx event block.
Loops can be placed in other loops.
