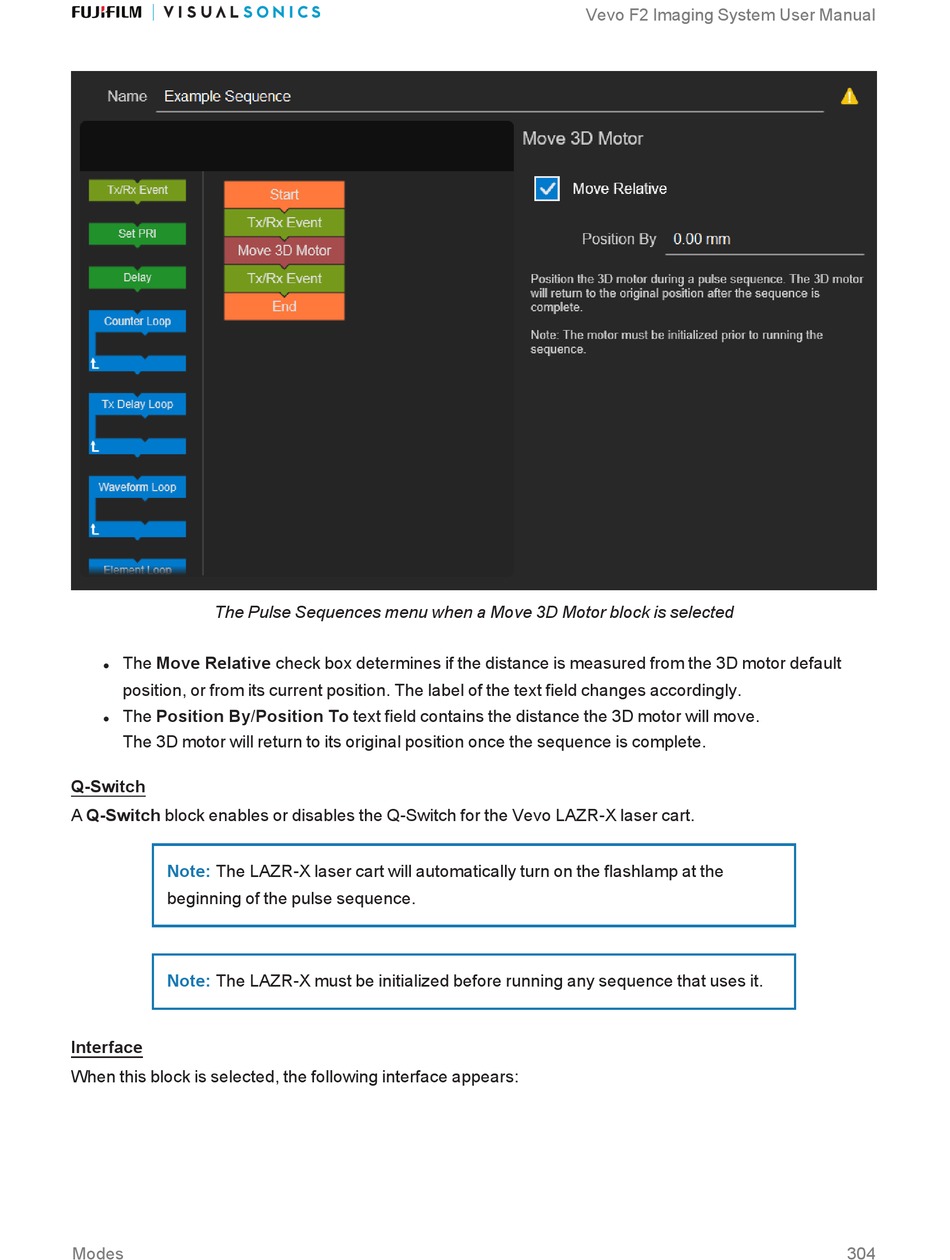

The Pulse Sequences menu when a Move 3D Motor block is selected
The Move Relative check box determines if the distance is measured from the 3D motor default
l
position, or from its current position. The label of the text field changes accordingly.
The Position By/Position To text field contains the distance the 3D motor will move.
l
The 3D motor will return to its original position once the sequence is complete.
Q-Switch
A Q-Switch block enables or disables the Q-Switch for the Vevo LAZR-X laser cart.
Note: The LAZR-X laser cart will automatically turn on the flashlamp at the
beginning of the pulse sequence.
Note: The LAZR-X must be initialized before running any sequence that uses it.
Interface
When this block is selected, the following interface appears:
Modes
