Note: For more information about the TGC sliders, refer to B-Mode Control Panel
Interface on page 109.
To adjust the gain of the mode that you not currently on, tap Start or Stop to switch modes as needed.
PA Guide
The PA guide is a series of screen overlays intended to help you position the transducer to the animal's skin
line for optimal image quality.
Note: For more information about the PA guide, refer to PA Guide on page 183.
PA-Mode Box
The PA-Mode box controls where PA-Mode data is applied to the image.
To move the box, tap and drag it on the control panel.
l
To resize the box, tap and drag one of the circular handles located at the bottom-left and bottom-right
l
corners of the box.
Modes

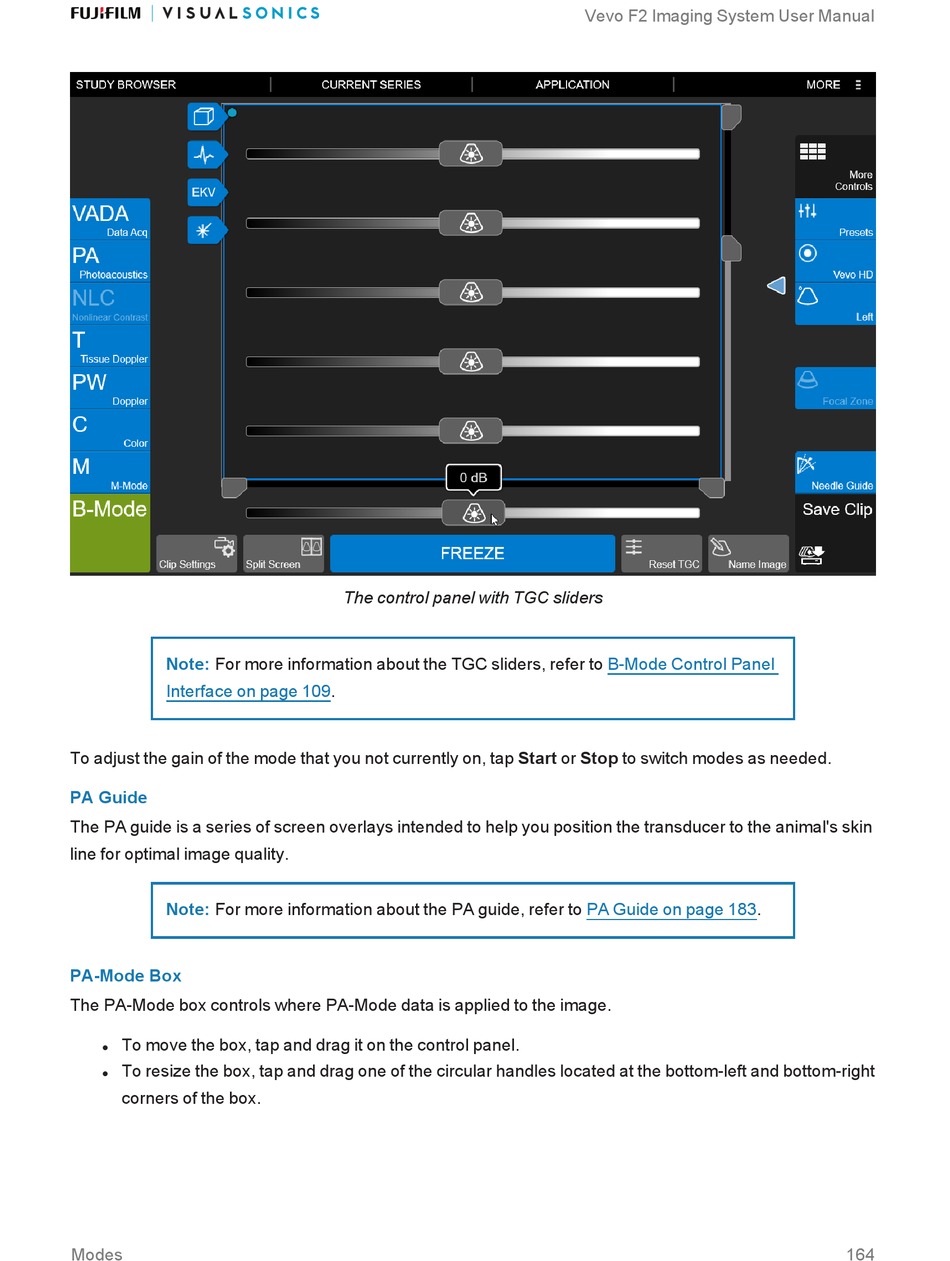

The control panel with TGC sliders
