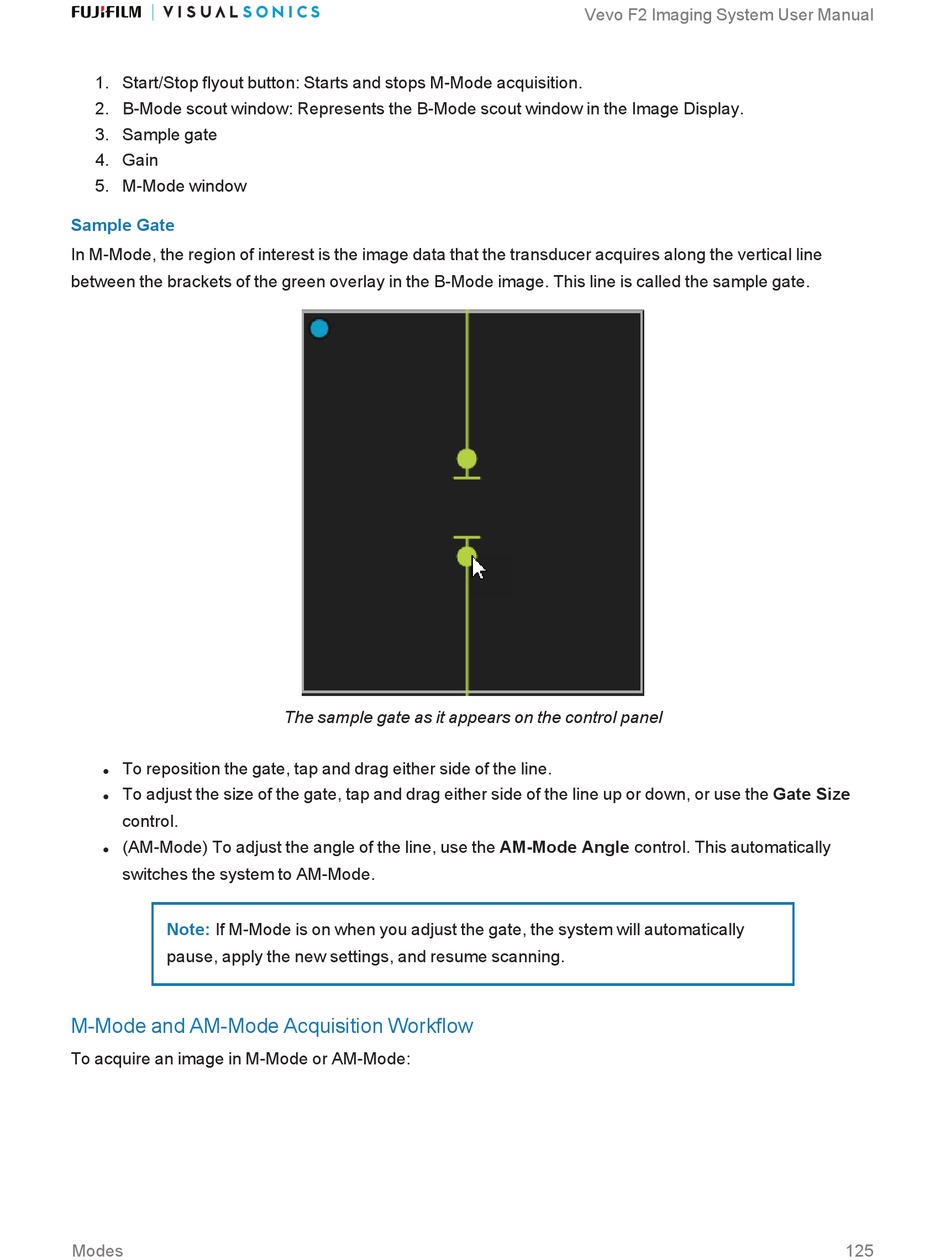

FujiFilm VisualSonics Vevo F2 User Manual page 125

1. Start/Stop flyout button: Starts and stops M-Mode acquisition.
2. B-Mode scout window: Represents the B-Mode scout window in the Image Display.
3. Sample gate
4. Gain
5. M-Mode window
Sample Gate
In M-Mode, the region of interest is the image data that the transducer acquires along the vertical line
between the brackets of the green overlay in the B-Mode image. This line is called the sample gate.
To reposition the gate, tap and drag either side of the line.
l
To adjust the size of the gate, tap and drag either side of the line up or down, or use the Gate Size
l
control.
(AM-Mode) To adjust the angle of the line, use the AM-Mode Angle control. This automatically
l
switches the system to AM-Mode.
Note: If M-Mode is on when you adjust the gate, the system will automatically
pause, apply the new settings, and resume scanning.
M-Mode and AM-Mode Acquisition Workflow
To acquire an image in M-Mode or AM-Mode:
Modes
The sample gate as it appears on the control panel
