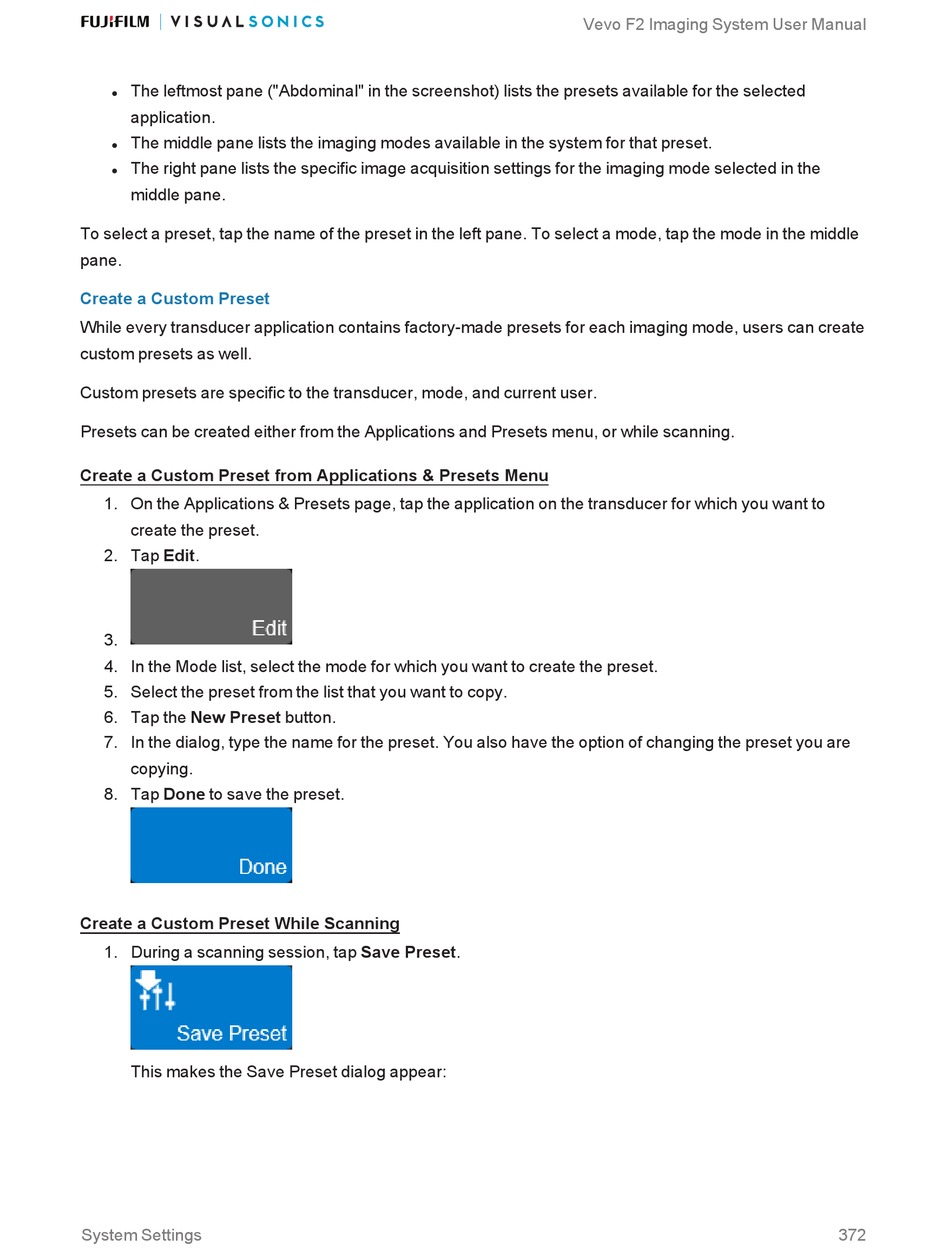

FujiFilm VisualSonics Vevo F2 User Manual page 372

The leftmost pane ("Abdominal" in the screenshot) lists the presets available for the selected
l
application.
The middle pane lists the imaging modes available in the system for that preset.
l
The right pane lists the specific image acquisition settings for the imaging mode selected in the
l
middle pane.
To select a preset, tap the name of the preset in the left pane. To select a mode, tap the mode in the middle
pane.
Create a Custom Preset
While every transducer application contains factory-made presets for each imaging mode, users can create
custom presets as well.
Custom presets are specific to the transducer, mode, and current user.
Presets can be created either from the Applications and Presets menu, or while scanning.
Create a Custom Preset from Applications & Presets Menu
1. On the Applications & Presets p age, tap the application on the transducer for which you want to
create the preset.
2. Tap Edit.
3.
4. In the Mode list, select the mode for which you want to create the preset.
5. Select the preset from the list that you want to copy.
6. Tap the New Preset button.
7. In the dialog, type the name for the preset. You also have the option of changing the preset you are
copying.
8. Tap Done to save the preset.
Create a Custom Preset While Scanning
1. During a scanning session, tap Save Preset.
This makes the Save Preset dialog appear:
System Settings
Vevo F2 Imaging System User Manual
372
