Interface

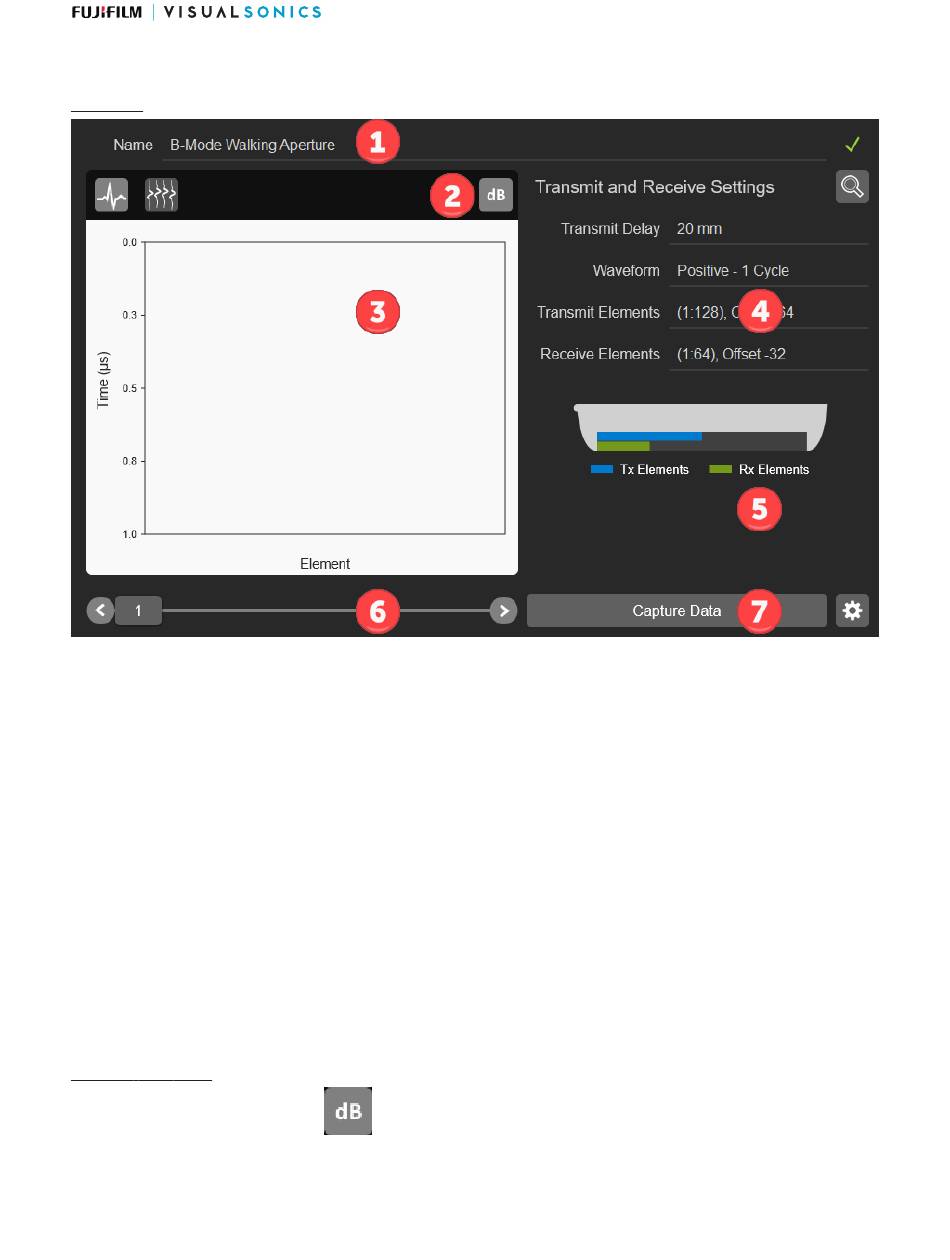

The Preview menu has the following key areas:
1. Name: The name of the pulse sequence.
2. Voltage and Gain: Opens a flyout menu that shows the current voltage and gain settings.
3. Graph: Displays the received data for the Tx/Rx Event currently selected in the event slider (#4 in the
above diagram).
4. Transmit and Receive Settings: A list of selected settings for the event.
5. Transducer Preview: Shows which elements are being used for the current Tx/Rx Event.
6. Event Slider: (Only appears if the pulse sequence has more than one event) Used to select individual
Tx/Rx Events in the pulse sequence.
7. Capture Data: Press this button to view a live stream of data on the graph from the Tx/Rx Event
currently selected in the event slider.
To preview a pulse sequence, select it from the list of pulse sequences to the left.
Voltage and Gain
Tap the Voltage and Gain button (
Modes
The Preview menu interface
) to view the current voltage and gain settings.
