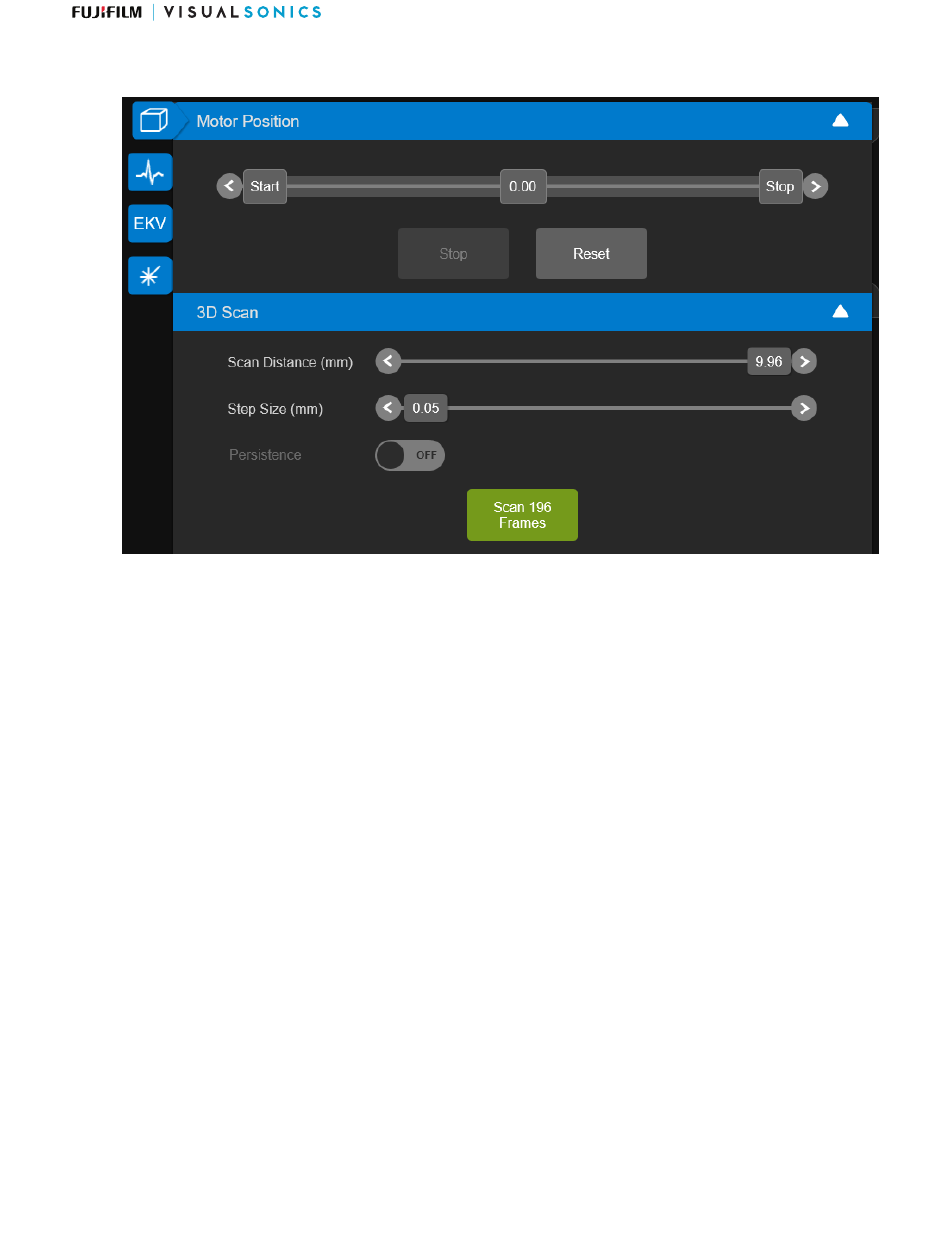

The Motor Position setup panel appears.
6. At the Motor Position section of the Motor Position setup panel, slide the Start and Stop indicators to
locate the object of interest. Center the indicators as closely as possible, relative to the transducer.
The motor only moves once you release the control, so while it is moving, tap Stop to stop
movement.
To move the motor back to its center position, tap Reset.
7. At the 3D Scan section, set all 3D Mode image parameters as desired:
Scan Distance: Sets the distance (in millimeters) that the 3D motor will travel during the
o
entire 3D Mode image acquisition. Scan distance ranges between 0.53 mm and 37.99 mm.
Achievable scan distances will depend on the step size selection.
Step Size: Sets the distance that the 3D motor t ravels between each B-Mode slice. S tep
o
sizes ranges between 0.04 mm and 0.50 mm.
Smaller step size produces more image slices which generates a more d etailed 3D Mode
image, typically useful for detailed evaluations of structures.
Higher step size produces fewer image slices which generates a less d etailed 3D Mode
image, but typically suitable for quick evaluations of structure v olumes.
The default value of the step size is based on the resolution of the t ransducer array.
Persistence: Tap this button to toggle Persistence on or off. This option is disabled if
o
persistence was not enabled in the base imaging mode.
8. Tap Scan (or PA 3D Scan if in PA-Mode) to begin scanning.
Modes
Vevo F2 Imaging System User Manual
205
