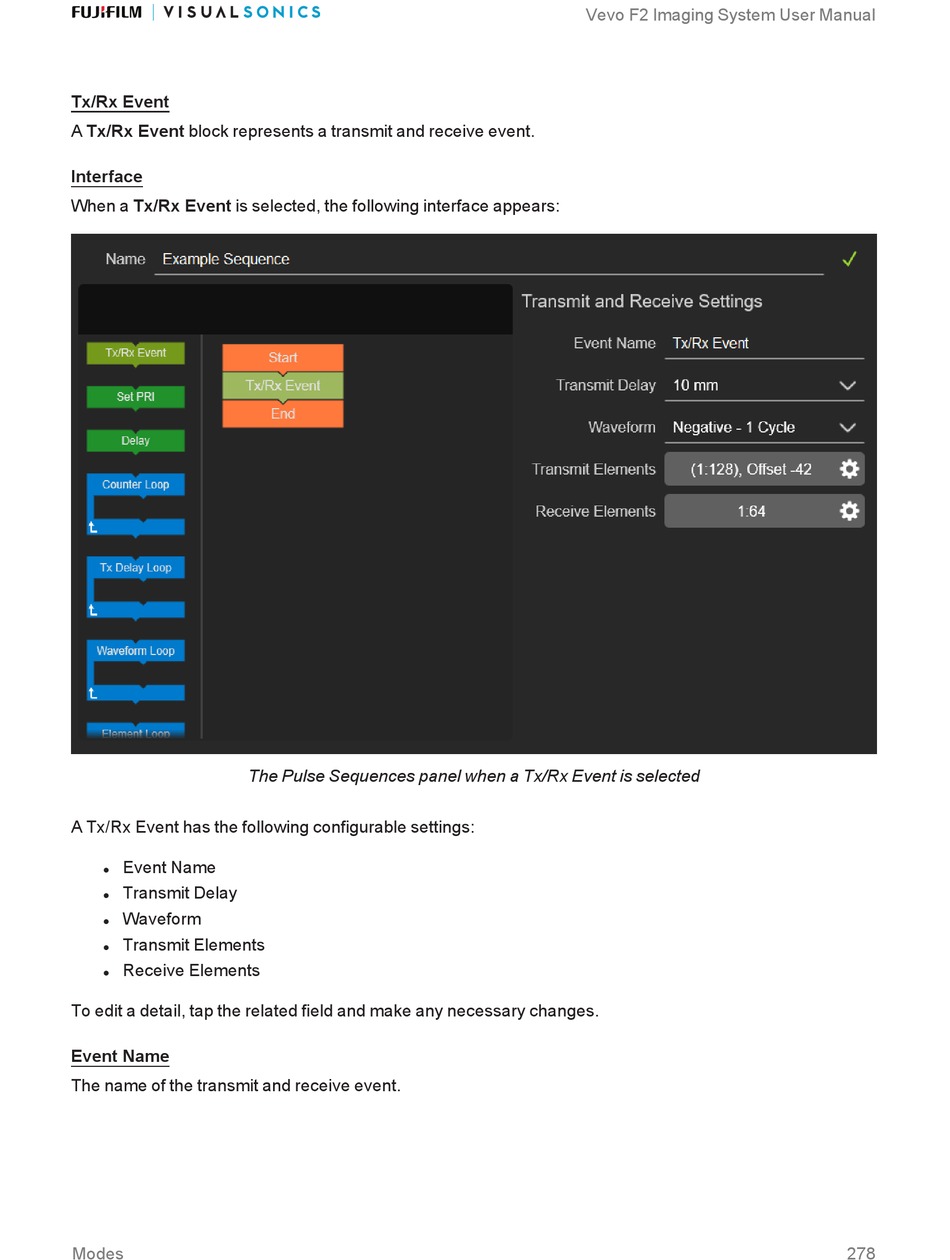

FujiFilm VisualSonics Vevo F2 User Manual page 278

Tx/Rx Event
A Tx/Rx Event block represents a transmit and receive event.
Interface
When a Tx/Rx Event is selected, the following interface appears:
The Pulse Sequences panel when a Tx/Rx Event is selected
A Tx/Rx Event has the following configurable settings:
Event Name
l
Transmit Delay
l
Waveform
l
Transmit Elements
l
Receive Elements
l
To edit a detail, tap the related field and make any necessary changes.
Event Name
The name of the transmit and receive event.
