1. Tabs: Used to navigate between panels in the configuration panel.
2. Groups and Profiles: Contains saved profiles for the current panel. Profiles are organized in groups.
Each panel has several factory-made profiles by default.
3. Working area: Contains controls specific to the particular panel.
4. Action buttons: Contains overall actions for the entire configuration panel, such as saving or
discarding all changes.
Note:
you tap Done.
5. Error checker: Indicates whether the settings entered in the panel are valid.
Tabs
The tabs along the top show each panel in the configuration panel.
Click any of the tabs to switch to another panel.
Switching Tabs and Configuration Changes
If you make a change in one tab and navigate to another, any changes made in the tab you left still exist, so
you can navigate between tabs freely without losing work. However, no changes made in the entire
configuration panel are saved permanently until you tap Done.
Modes

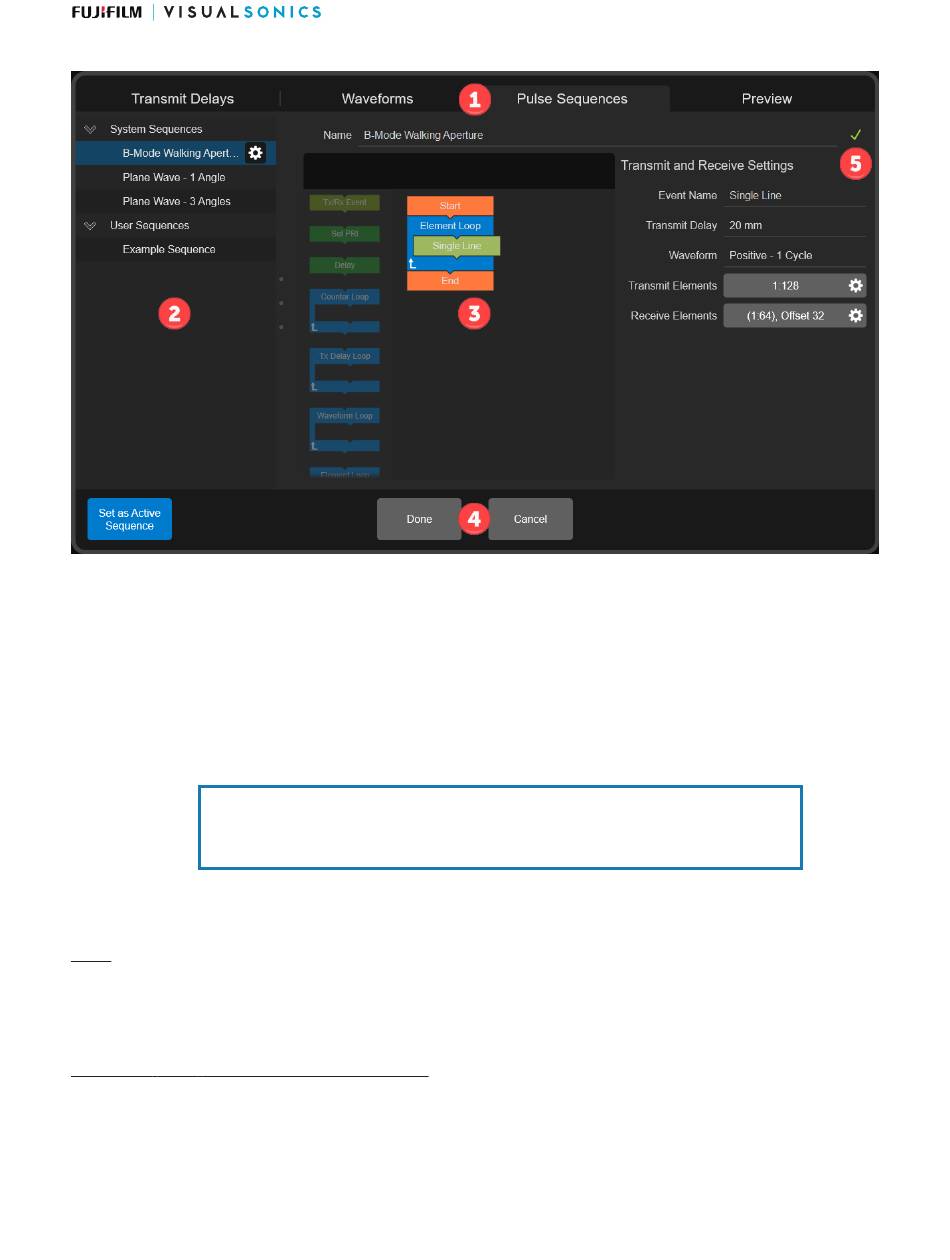

VADA configuration panel layout
Changes made in the VADA configuration panel are only saved when
