PA-Mode Control Panel Interface

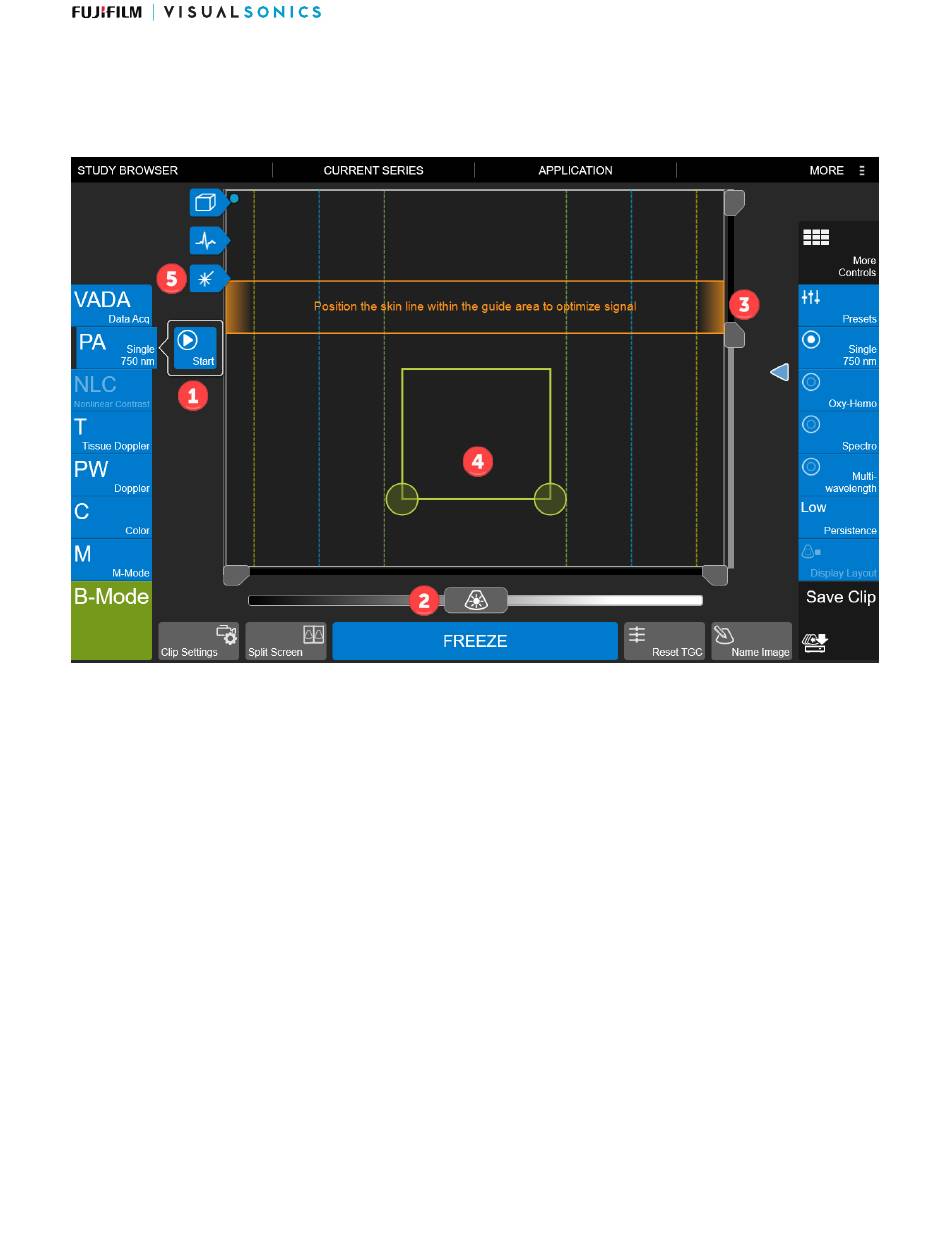

When PA-Mode is selected, the Control Panel shows the following interface:
Image controls:
1. Start/Stop button
2. B-Mode/PA-Mode gain
3. PA Guide
4. PA-Mode box
5. Laser tab
Start/Stop Button
When you select PA-Mode, a Start button appears. When this happens, the system is in staging mode,
which allows the user to make any necessary preparations (such as positioning the transducer) before
starting PA-Mode acquisition.
When in staging mode, make all necessary preparations, then tap Start. Once this button is pressed, the
system moves into acquisition mode and begins acquiring data.
When in acquisition mode, the Start button changes into a Stop button. Tap this button at any time to stop
acquiring PA-Mode data and return to staging mode.
Modes
The PA-Mode control panel
