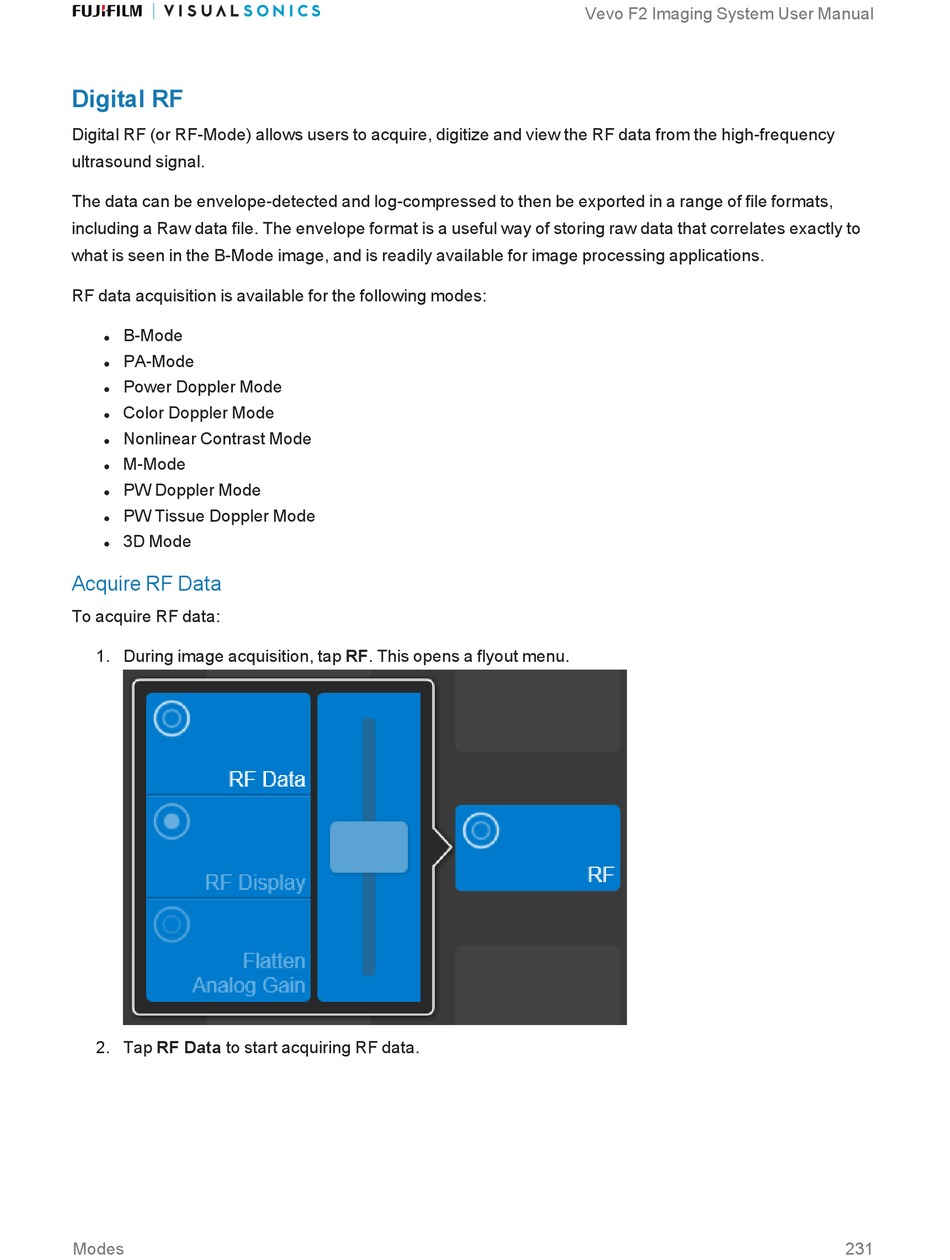

Digital RF
Digital RF (or RF-Mode) allows users to acquire, digitize and view the RF data from t he high-frequency
ultrasound signal.
The data can be envelope-detected and log-compressed to then be exported in a r ange of file formats,
including a Raw data file. The envelope format is a useful way of s toring raw data that correlates exactly to
what is seen in the B-Mode image, and i s readily available for image processing applications.
RF data acquisition is available for the following modes:
B-Mode
l
PA-Mode
l
Power Doppler Mode
l
Color Doppler Mode
l
Nonlinear Contrast Mode
l
M-Mode
l
PW Doppler Mode
l
PW Tissue Doppler Mode
l
3D Mode
l
Acquire RF Data
To acquire RF data:
1. During image acquisition, tap RF. This opens a flyout menu.
2. Tap RF Data to start acquiring RF data.
