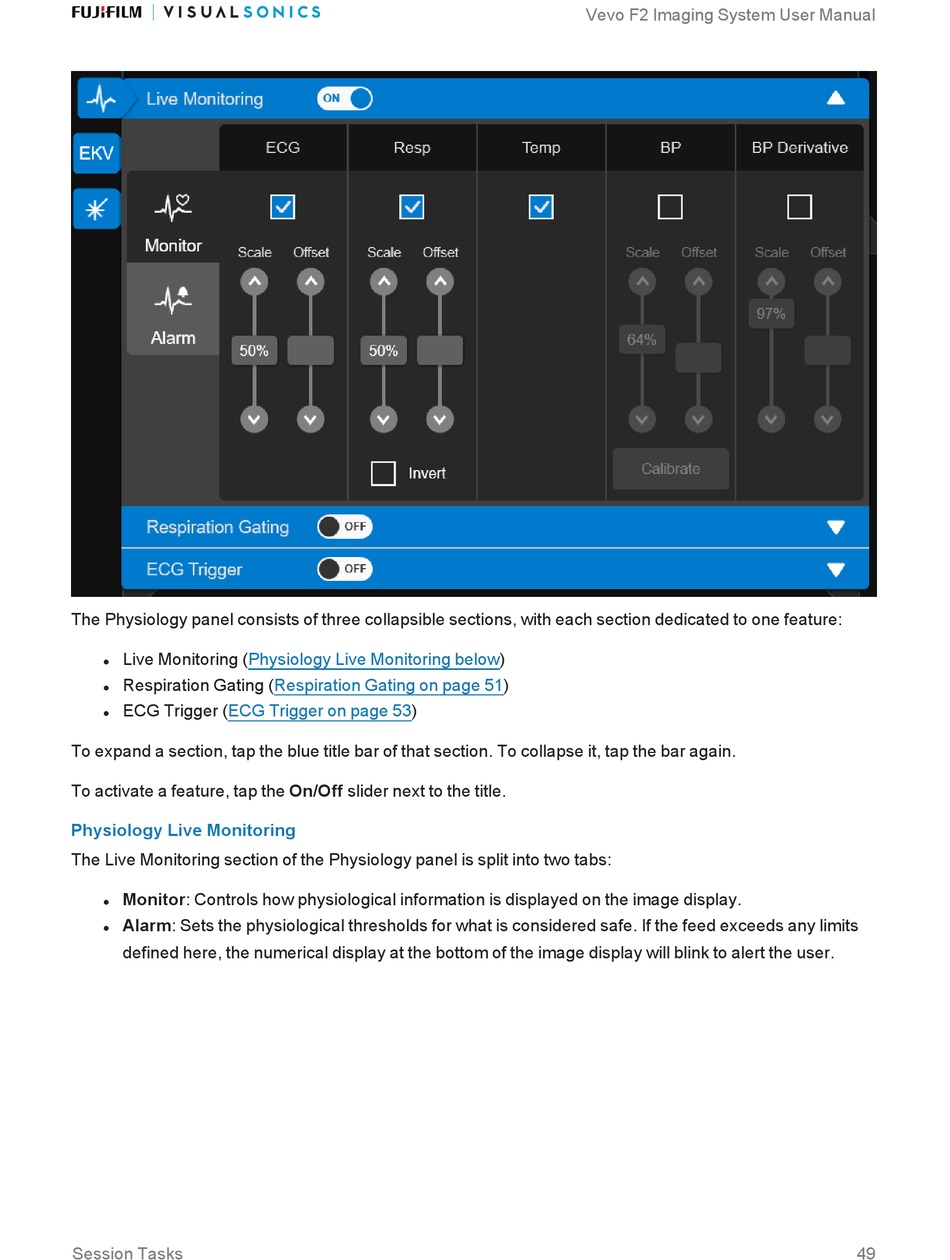

The Physiology panel consists of three collapsible sections, with each section dedicated to one feature:
Live Monitoring (Physiology Live Monitoring below)
l
Respiration Gating (Respiration Gating on page 51)
l
ECG Trigger (ECG Trigger on page 53)
l
To expand a section, tap the blue title bar of that section. To collapse it, tap the bar again.
To activate a feature, tap the On/Off slider next to the title.
Physiology Live Monitoring
The Live Monitoring section of the Physiology panel is split into two tabs:
Monitor: Controls how physiological information is displayed on the image display.
l
Alarm: Sets the physiological thresholds for what is considered safe. If the feed exceeds any limits
l
defined here, the numerical display at the bottom of the image display will blink to alert the user.
