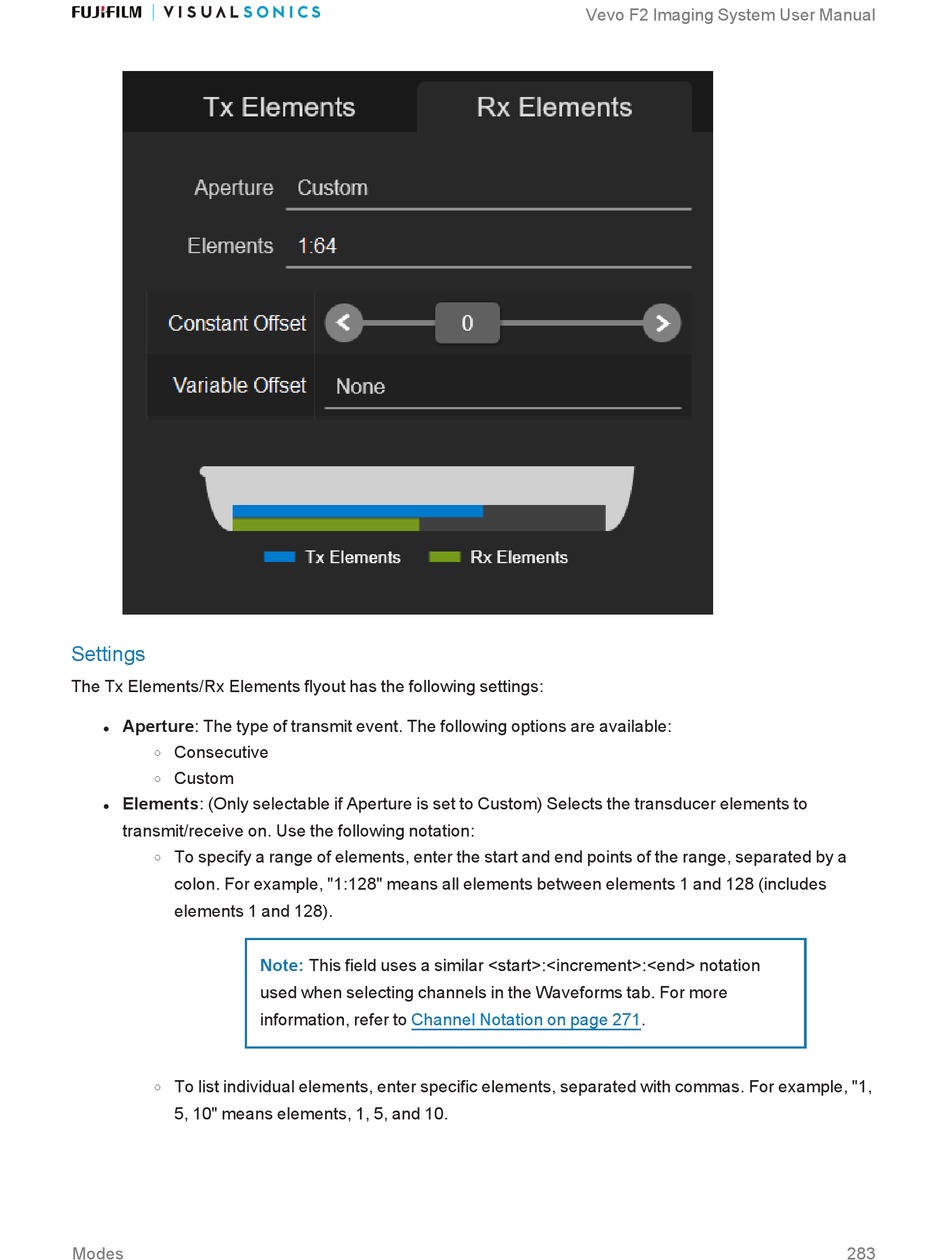

Settings
The Tx Elements/Rx Elements flyout has the following settings:
Aperture: The type of transmit event. The following options are available:
l
Consecutive
o
Custom
o
Elements: (Only selectable if Aperture is set to Custom) Selects the transducer elements to
l
transmit/receive on. Use the following notation:
To specify a range of elements, enter the start and end points of the range, separated by a
o
colon. For example, "1:128" means all elements between elements 1 and 128 (includes
elements 1 and 128).
To list individual elements, enter specific elements, separated with commas. For example, "1,
o
5, 10" means elements, 1, 5, and 10.
Modes
Note:
This field uses a similar <start>:<increment>:<end> notation
used when selecting channels in the Waveforms tab. For more
information, refer to Channel Notation on page 271.
Vevo F2 Imaging System User Manual
283
