1. Cube view
2. Cross view
3. Orientation indicator
4. Transverse view
5. Sagittal view
View Panes
The view panes show up to four different views of the 4D-Mode image at the same time. These panes can
be controlled through the control panel, and have the following features:
The currently active pane is outlined with a yellow border.
l
An orientation indicator is displayed with the cube view, and rotates as the cube is rotated.
l
When you export a stored image that is set to only send the image area, this is the area of the Image
l
Display that is exported.
4D-Mode Control Panel
When the 4D-Mode scan is complete, the control panel displays the following interface:
Modes

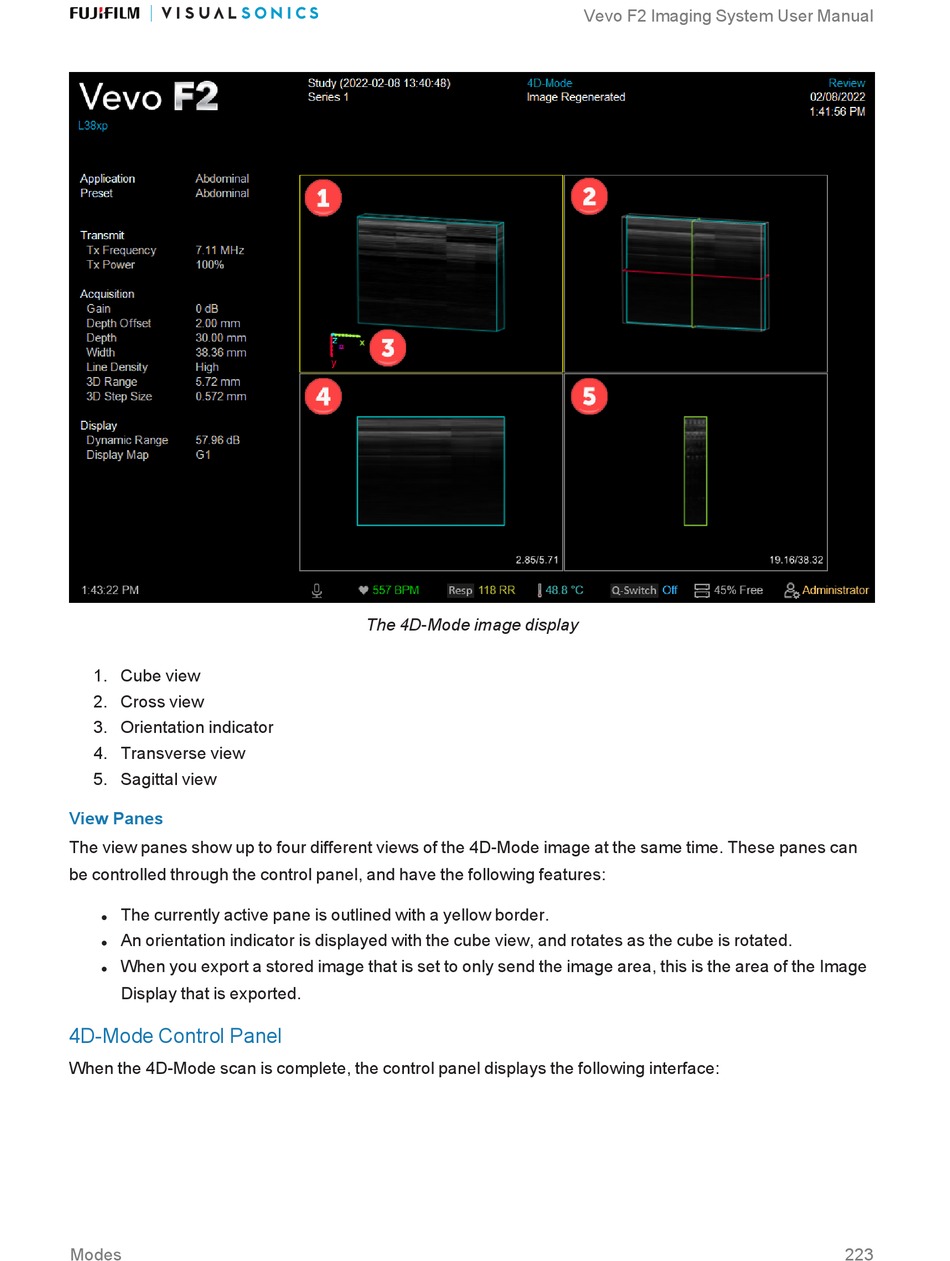

The 4D-Mode image display
