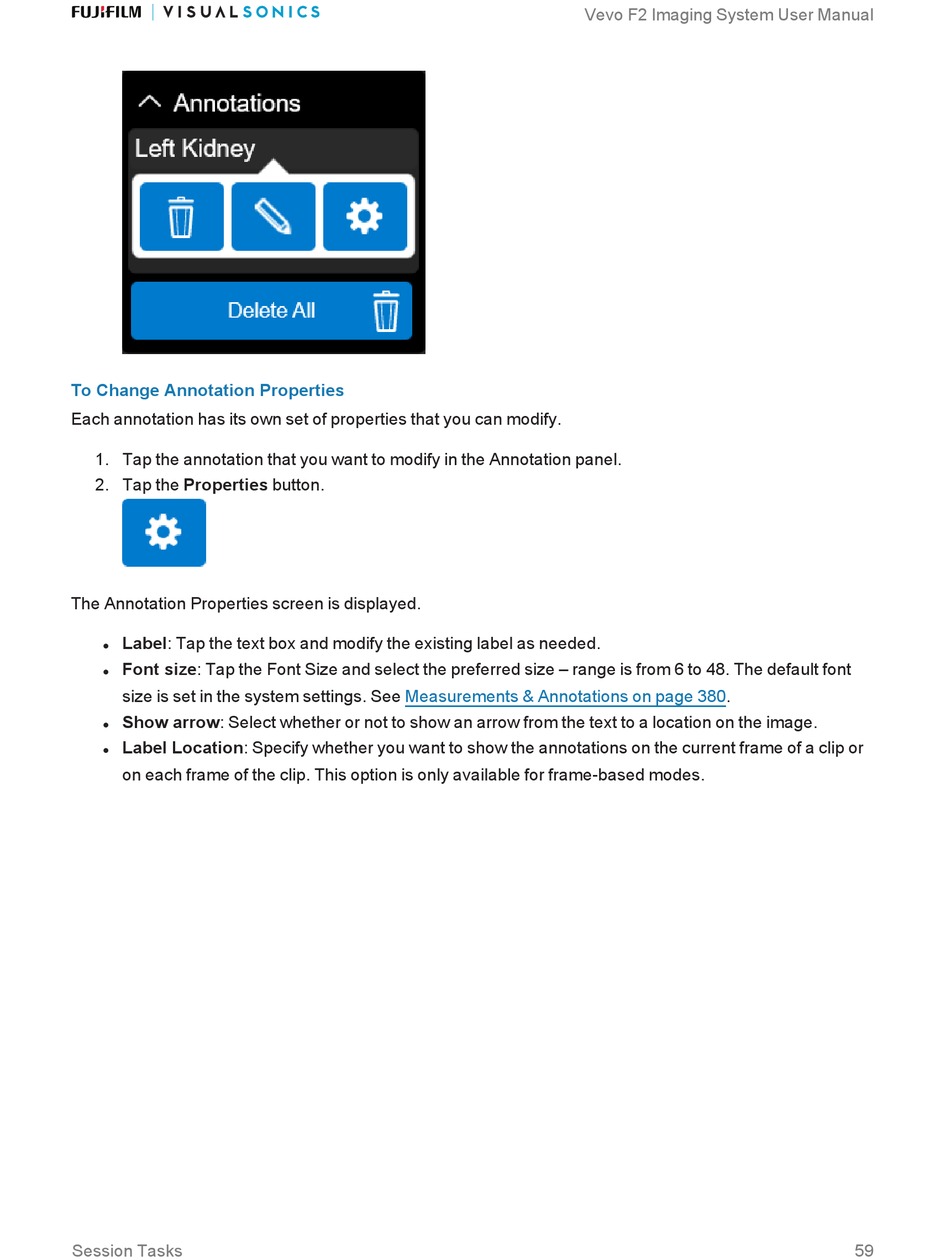

FujiFilm VisualSonics Vevo F2 User Manual page 59

To Change Annotation Properties
Each annotation has its own set of properties that you can modify.
1. Tap the annotation that you want to modify in the Annotation panel.
2. Tap the Properties button.
The Annotation Properties screen is displayed.
Label: Tap the text box and modify the existing label as needed.
l
Font size: Tap the Font Size and select the preferred size – range is from 6 to 48. The default font
l
size is set in the system settings. See Measurements & Annotations on page 380.
Show arrow: Select whether or not to show an arrow from the text to a location on the image.
l
Label Location: Specify whether you want to show the annotations on the current frame of a clip or
l
on each frame of the clip. This option is only available for frame-based modes.
Session Tasks
Vevo F2 Imaging System User Manual
59
