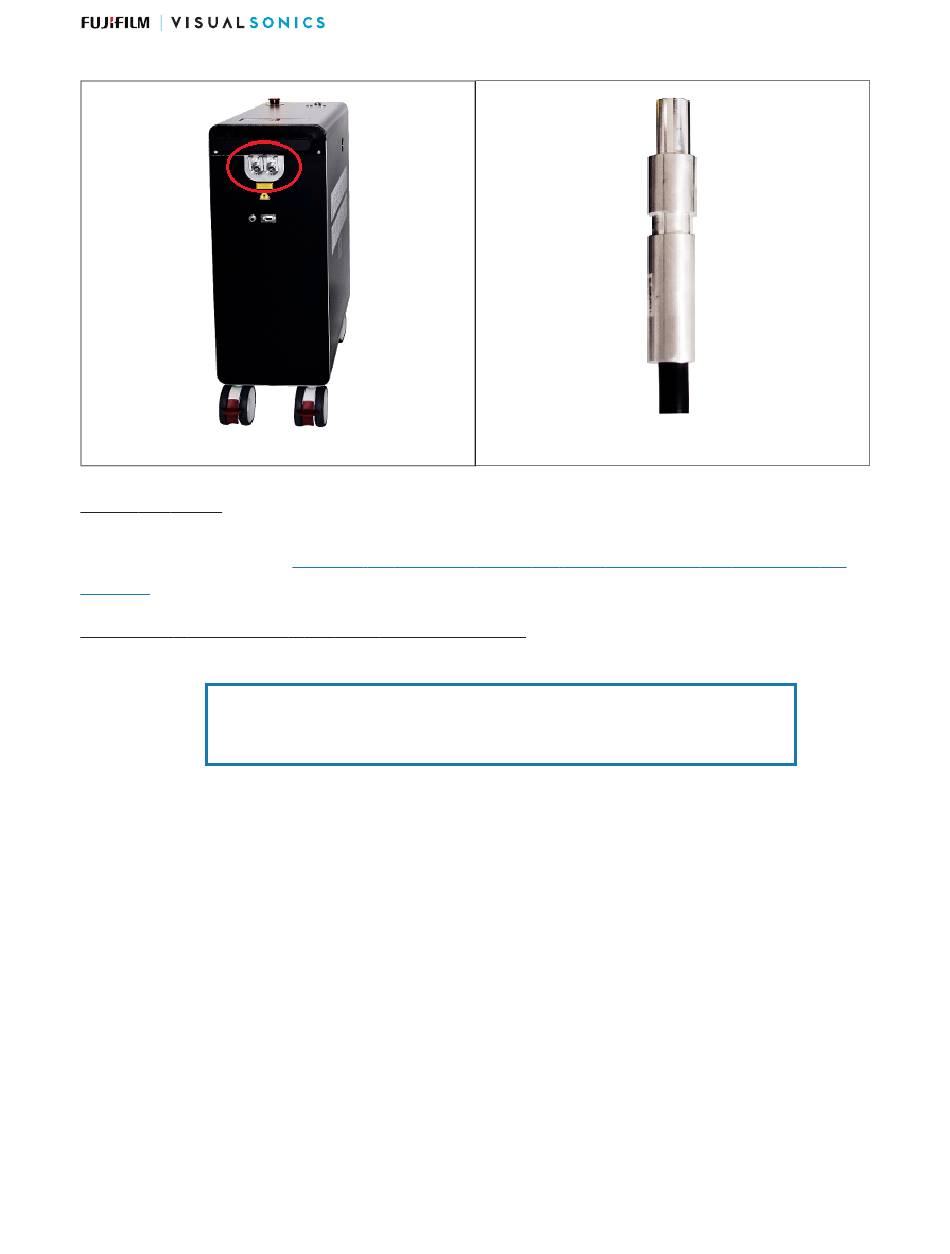

Laser ports on laser cart
Before You Begin
Ensure the transducer is connected to the Vevo Fiber Jacket and the Vevo Optical Fiber. For information
about how to do this, refer to To Attach the Vevo Fiber Jacket and Vevo Optical Fiber to a Transducer on
page 422.
To Connect a Transducer to the Vevo LAZR-X laser cart
1. Turn the handle on the transducer clockwise to the vertical (unlocked) position.
Note:
lock or unlock the handle.
2. Slide the transducer connector into the transducer bay (underneath the control panel) of the Vevo
F2.
3. Push the transducer connector into the transducer interface.
4. Rotate the h andle on the transducer connector counterclockwise to the horizontal (locked) position,
then push the handle down to lock the transducer.
5. On the laser cart, raise the lever lock on the port you want to use.
Components
A label on the transducer indicates which direction to turn in order to
Vevo F2 Imaging System User Manual
Transducer fiber optic ferrule
