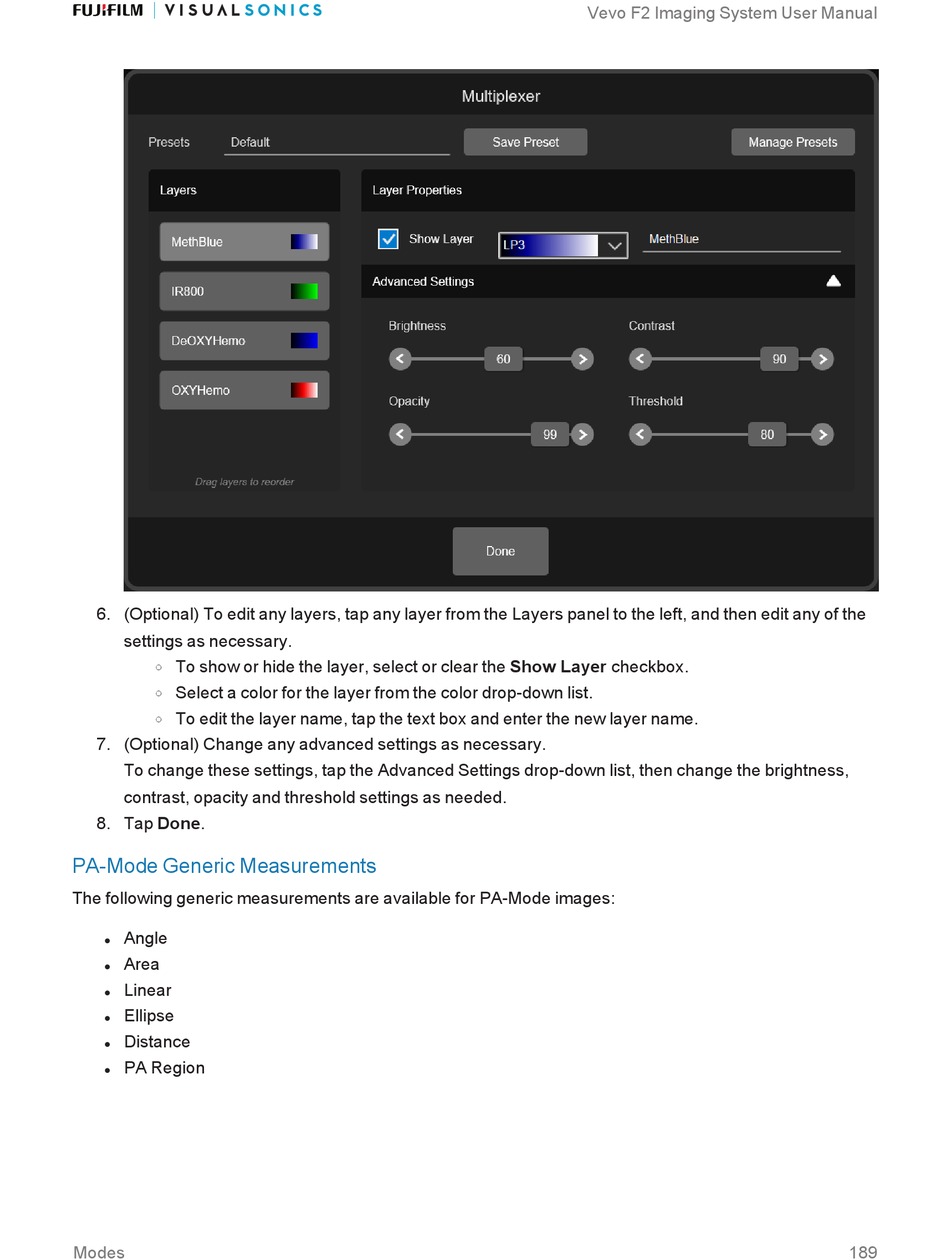

6. (Optional) To edit any layers, tap any layer from the Layers panel to the left, and then edit any of the
settings as necessary.
To show or hide the layer, select or clear the Show Layer checkbox.
o
Select a color for the layer from the color drop-down list.
o
To edit the layer name, tap the text box and enter the new layer name.
o
7. (Optional) Change any advanced settings as necessary.
To change these settings, tap the Advanced Settings drop-down list, then change the brightness,
contrast, opacity and threshold settings as needed.
8. Tap Done.
PA-Mode Generic Measurements
The following generic measurements are available for PA-Mode images:
Angle
l
Area
l
Linear
l
Ellipse
l
Distance
l
PA Region
l
Modes
