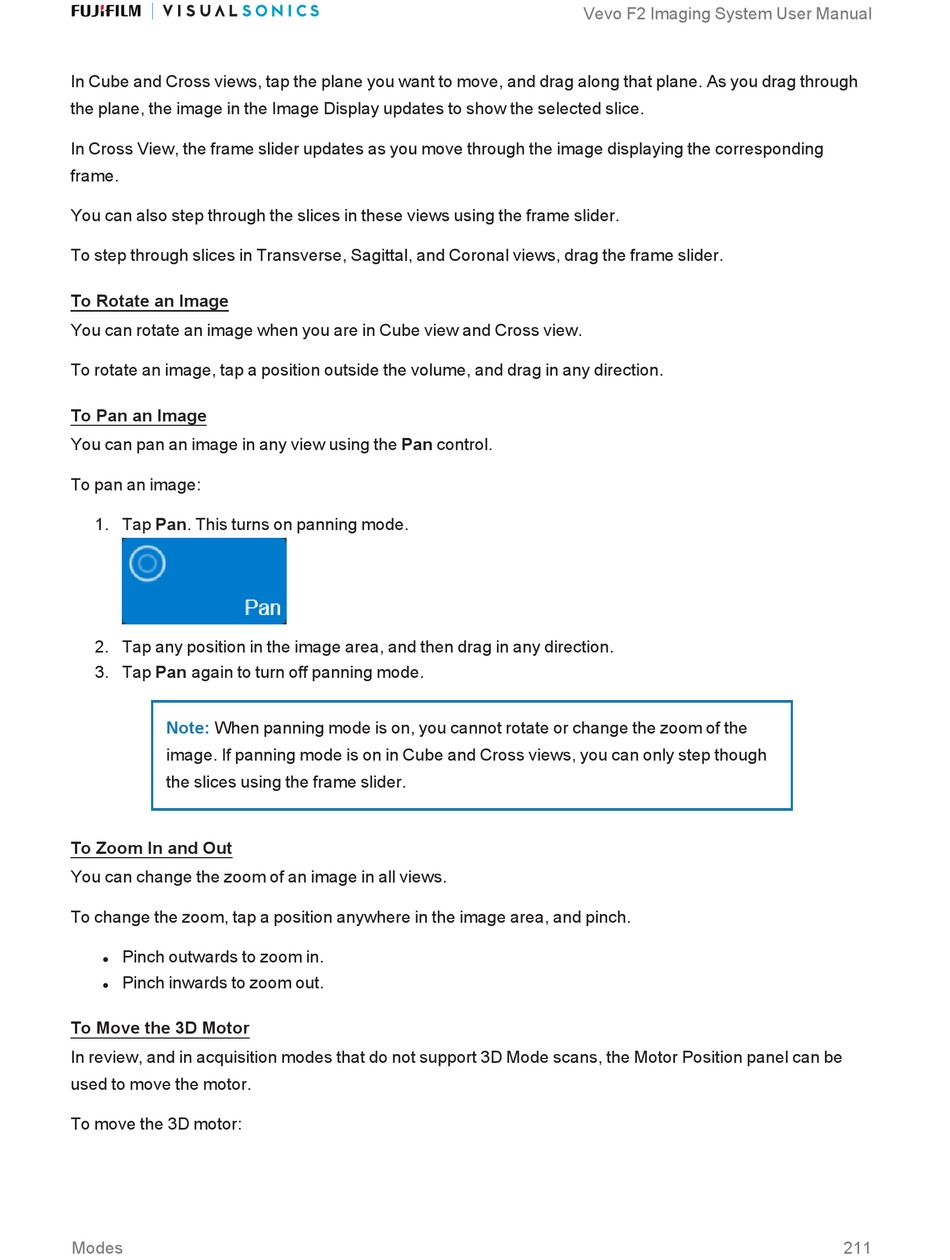

FujiFilm VisualSonics Vevo F2 User Manual page 211

In Cube and Cross views, tap the plane you want to move, and drag along that plane. As you drag through
the plane, the image in the Image Display updates to show the selected slice.
In Cross View, the frame slider updates as you move through the image displaying the corresponding
frame.
You can also step through the slices in these views using the frame slider.
To step through slices in Transverse, Sagittal, and Coronal views, drag the frame slider.
To Rotate an Image
You can rotate an image when you are in Cube view and Cross view.
To rotate an image, tap a position outside the volume, and drag in any direction.
To Pan an Image
You can pan an image in any v iew using the Pan control.
To pan an image:
1. Tap Pan. This turns on panning mode.
2. Tap any position in the image area, and then drag in any direction.
3. Tap Pan again to turn off panning mode.
Note: When panning mode is on, you cannot rotate or change the zoom of the
image. If panning mode is on in Cube and Cross views, you can only step though
the slices using the frame slider.
To Zoom In and Out
You can change the zoom of an image in all views.
To change the zoom, tap a position anywhere in the image area, and pinch.
Pinch outwards to zoom in.
l
Pinch inwards to zoom out.
l
To Move the 3D Motor
In review, and in acquisition modes that do not support 3D Mode scans, the Motor Position panel can be
used to move the motor.
To move the 3D motor:
Modes
