Pulse Sequence Tab
The Pulse Sequence tab is identical to the Pulse Sequences tab on the VADA configuration panel, with the
following exceptions:
There is no list of pulse sequences to select on the left.
l
None of the values that appear when you select a block can be edited.
l
For more information about the Pulse Sequences tab, refer to Pulse Sequences on page 272.
Review Tab
The interface on this tab is similar to the Preview tab on the VADA configuration panel, with the following
exceptions:
The Capture Data button is not in this panel because data has already been captured.
l
When using the slider at the bottom of the menu, a timestamp appears at the top-right corner of the
l
graph to show when that part of the transmit-receive event occurred.
For more information about the Preview tab, refer to Preview on page 308.
Modes

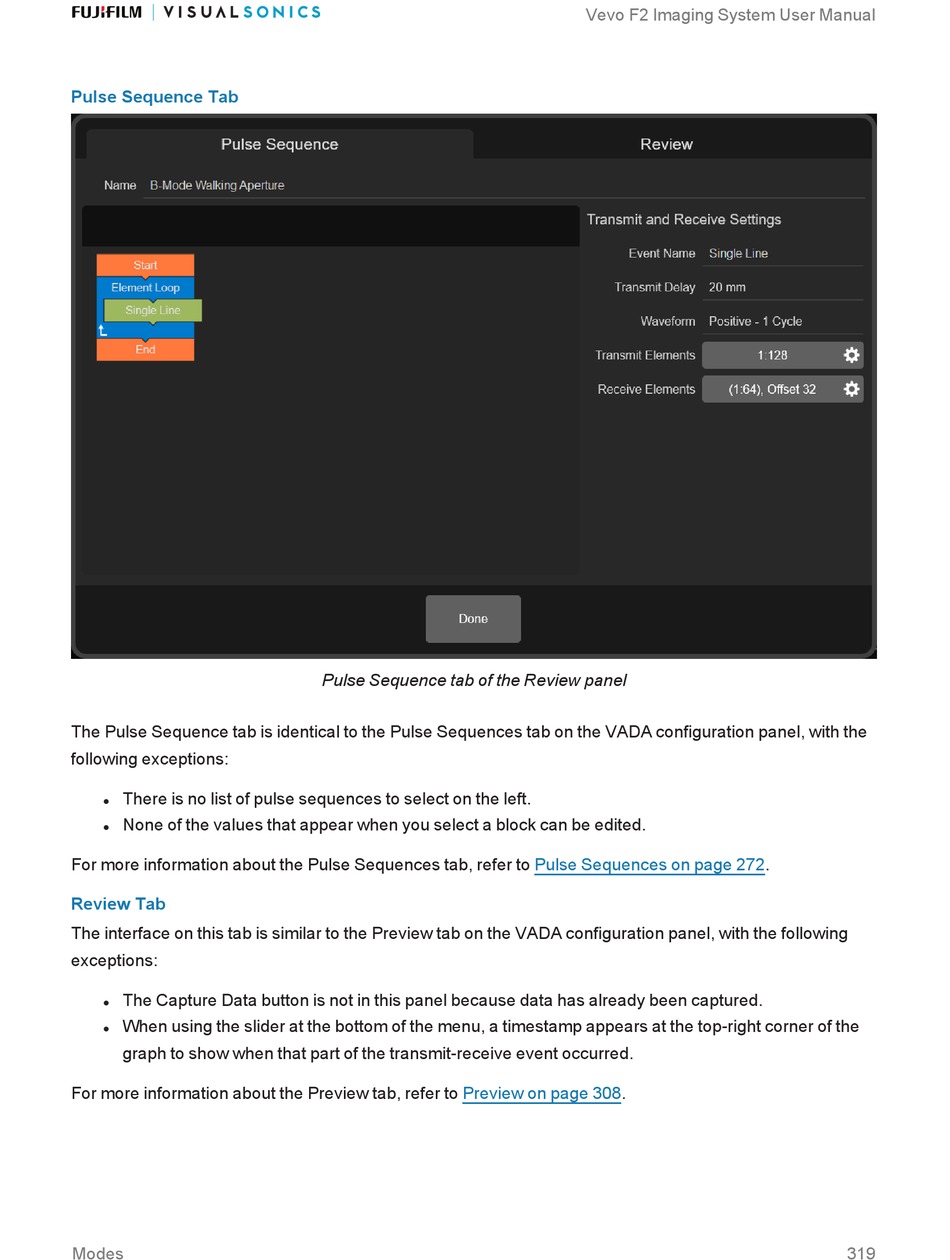

Pulse Sequence tab of the Review panel
