Counter
The number of times the loop will run its contents.
Tx Delay Loop
A Tx Delay Loop block cycles through a user-selected list of transmit delay profiles until each profile has
been run once. Users can also set the Tx/Rx Event contained in the loop to use the transmit delay profile in
the loop instead of the delay set in the Tx/Rx Event.
For example, if a Tx/Rx Event is inside a Tx Delay Loop, and the Tx Delay Loop contains the following list of
transmit delay profiles:
1. Focused at 10 mm
2. Focused at 20 mm
3. Focused at 30 mm

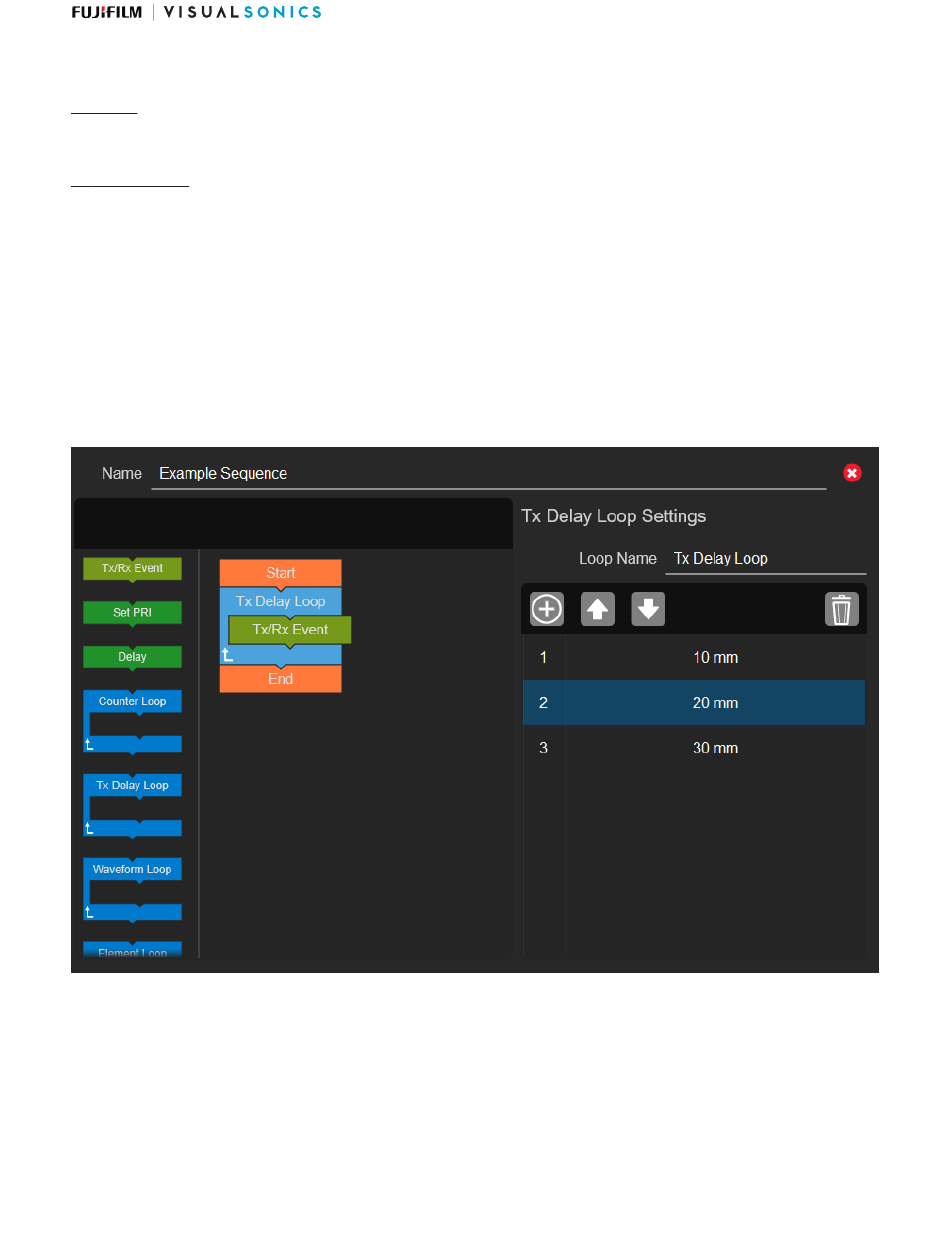

The Pulse Sequences menu when a Tx Delay Loop is selected
With these settings, and if the Tx/Rx Event is set to use the transmit delay specified in the loop, the pulse
sequence will run the same Tx/Rx Event three times, with the following results:
