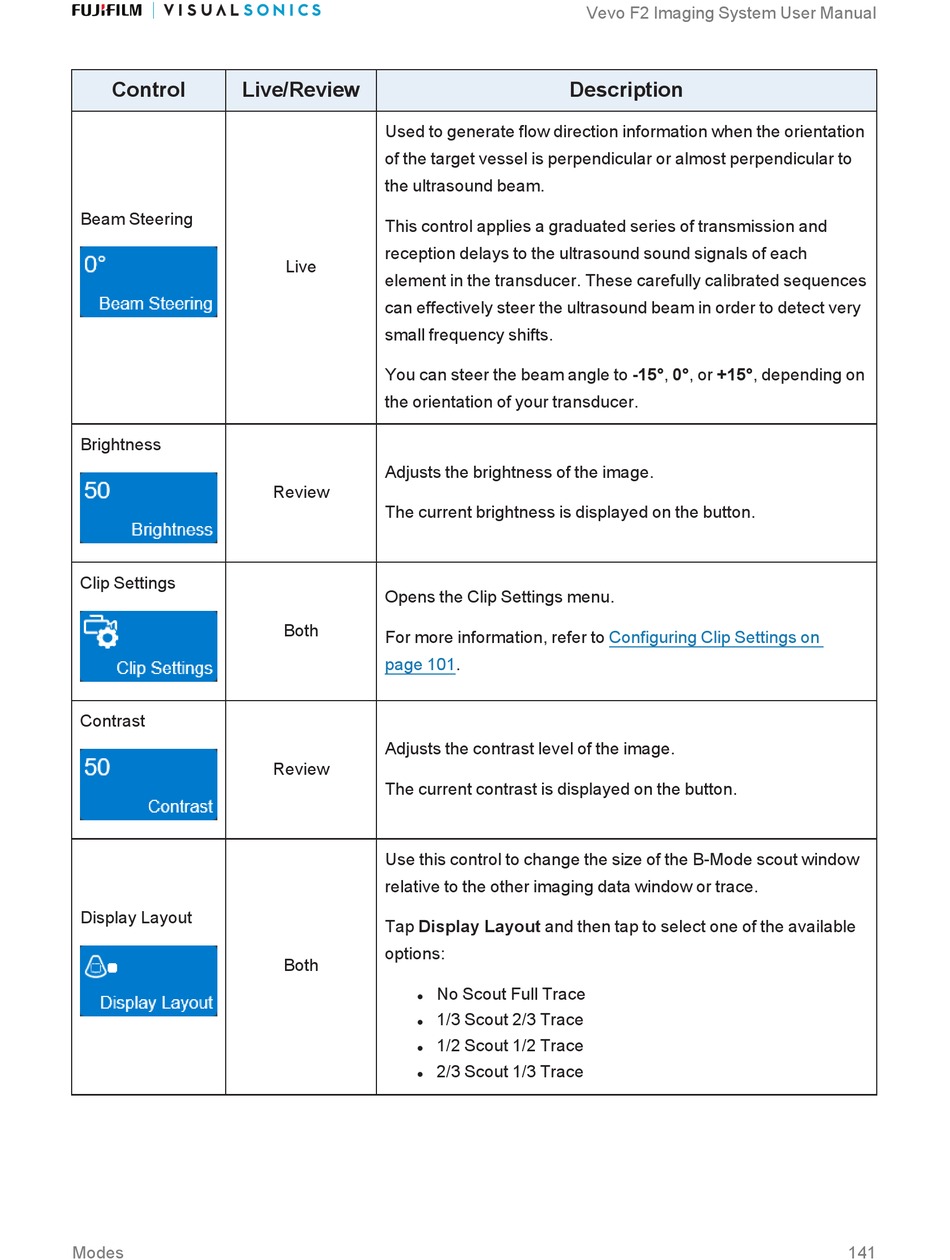

FujiFilm VisualSonics Vevo F2 User Manual page 141

Control Live/Review
Beam Steering
Brightness
Clip Settings
Contrast
Display Layout
Modes
Used to generate flow direction information when the orientation
of the target vessel is perpendicular or almost perpendicular to
the ultrasound beam.
This control applies a graduated series of transmission and
reception delays to the ultrasound sound signals of each
Live
element in the transducer. These carefully calibrated sequences
can effectively steer the ultrasound beam in order to detect very
small frequency shifts.
You can steer the beam angle to -15°, 0°, or +15°, depending on
the orientation of your transducer.
Adjusts the brightness of the image.
Review
The current brightness is displayed on the button.
Opens the Clip Settings menu.
Both
For more information, refer to Configuring Clip Settings on
page 101.
Adjusts the contrast level of the image.
Review
The current contrast is displayed on the button.
Use this control t o change the size of the B -Mode scout window
relative to the other imaging data window or trace.
Tap Display Layout and then tap to select one of the available
options:
Both
No Scout Full Trace
l
1/3 Scout 2/3 Trace
l
1/2 Scout 1/2 Trace
l
2/3 Scout 1/3 Trace
l
