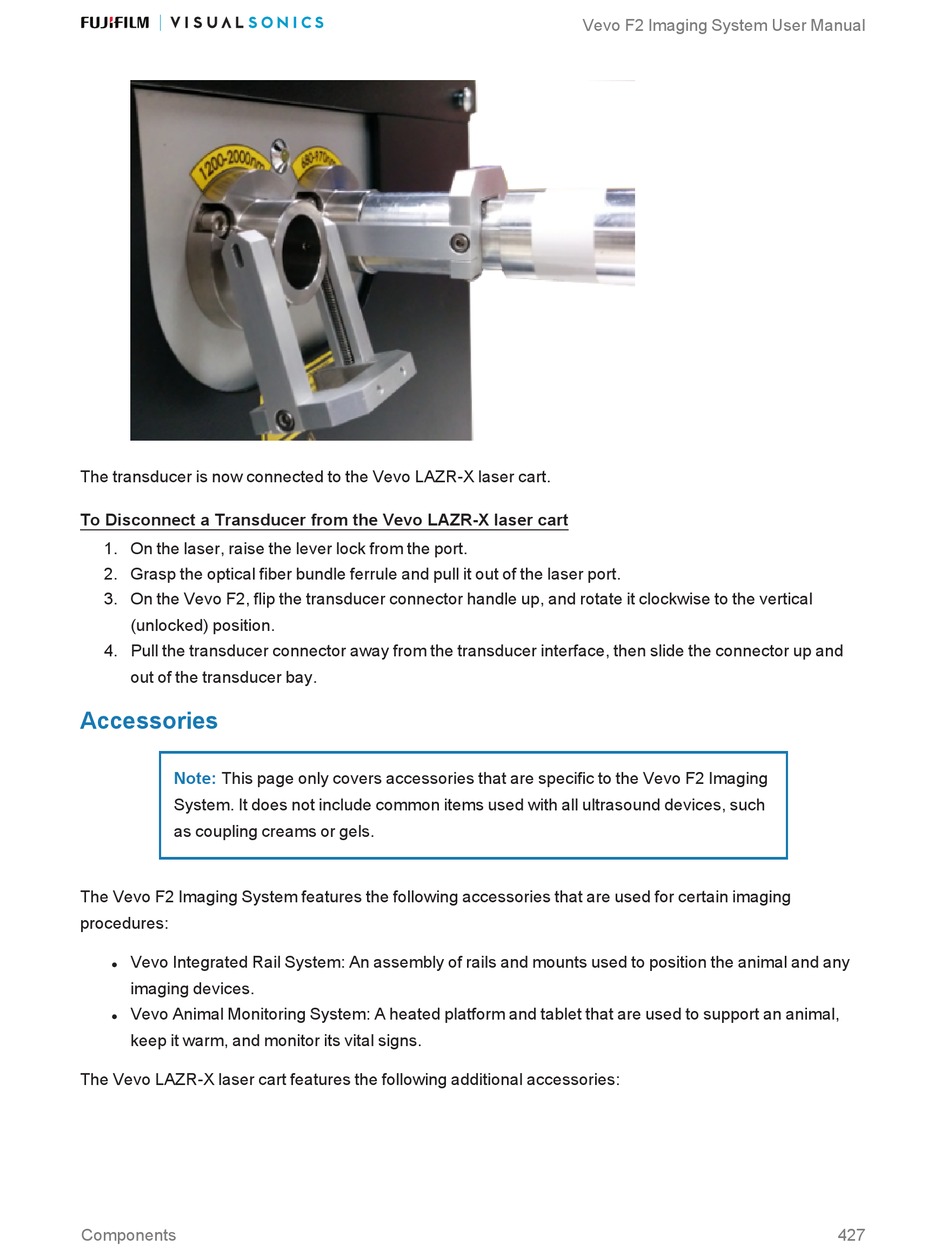

The transducer is now connected to the Vevo LAZR-X laser cart.
To Disconnect a Transducer from the Vevo LAZR-X laser cart
1. On the laser, raise the lever lock from the port.
2. Grasp the optical fiber bundle ferrule and pull it out of the laser port.
3. On the Vevo F2, flip the transducer connector handle up, and rotate it clockwise to the vertical
(unlocked) position.
4. Pull the transducer connector away from the transducer interface, then slide the connector up and
out of the transducer bay.
Accessories
Note: This page only covers accessories that are specific to the Vevo F2 Imaging
System. It does not include common items used with all ultrasound devices, such
as coupling creams or gels.
The Vevo F2 Imaging System features the following accessories that are used for certain imaging
procedures:
Vevo Integrated Rail System: An assembly of rails and mounts used to position the animal and any
l
imaging devices.
Vevo Animal Monitoring System: A heated platform and tablet that are used to support an animal,
l
keep it warm, and monitor its vital signs.
The Vevo LAZR-X laser cart features the following additional accessories:
Components
