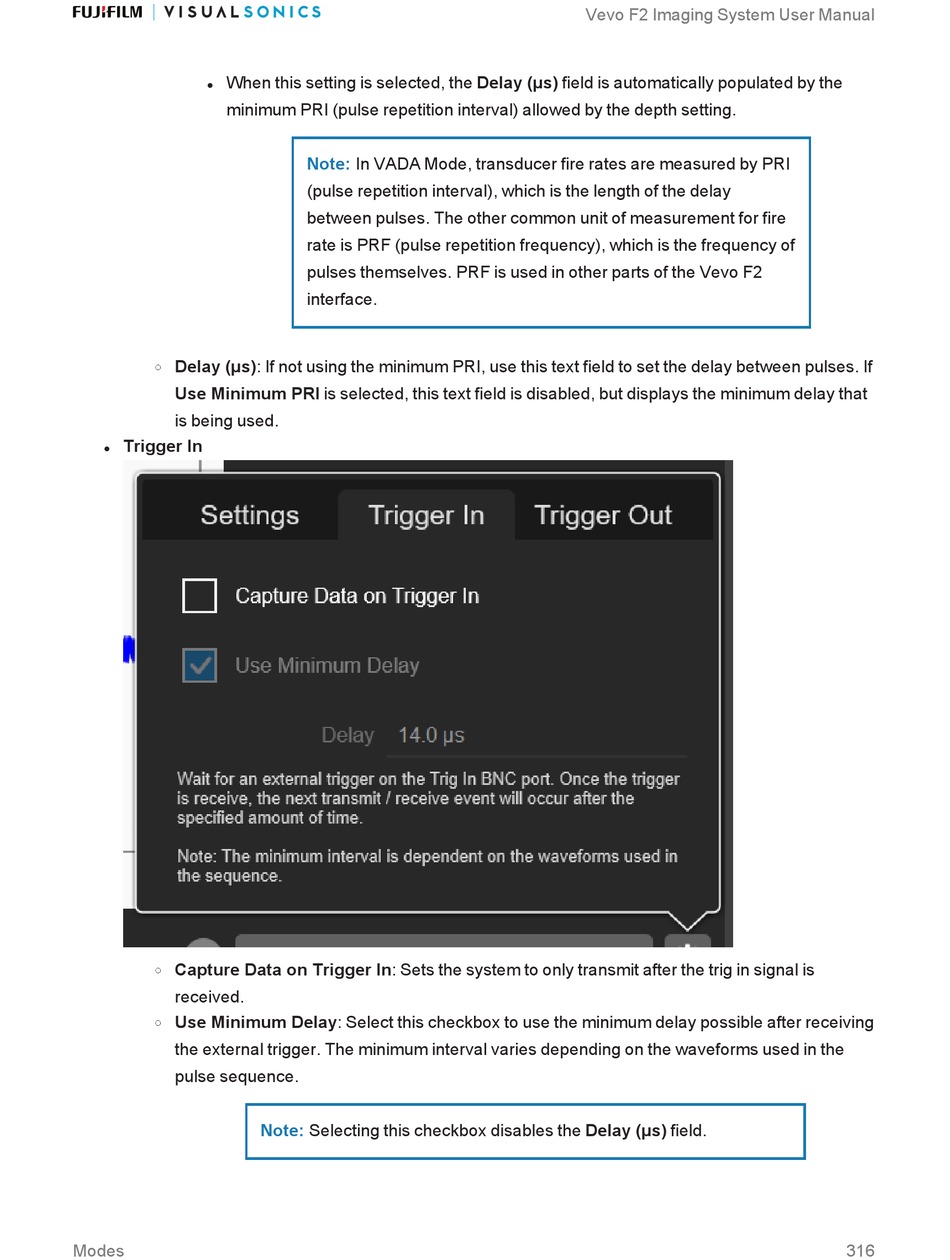

When this setting is selected, the Delay (µs) field is automatically populated by the
l
minimum PRI (pulse repetition interval)   a llowed by the depth setting.

Delay (µs): If not using the minimum PRI, use this text field to set the delay between pulses. If
o
Use Minimum PRI is selected, this text field is disabled, but displays the minimum delay that
is being used.

Trigger In
l

Capture Data on Trigger In: Sets the system to only transmit after the trig in signal is
o
received.

Use Minimum Delay: Select this checkbox to use the minimum delay possible after receiving
o
the external trigger. The minimum interval varies depending on the waveforms used in the
pulse sequence.
Modes
Note:
In VADA Mode, transducer fire rates are measured by PRI
(pulse repetition interval), which is the length of the delay
between pulses. The other common unit of measurement for fire
rate is PRF (pulse repetition frequency), which is the frequency of
pulses themselves. PRF is used in other parts of the Vevo F2
interface.
Note:
Selecting this checkbox disables the Delay (µs) field.
Vevo F2 Imaging System User Manual
316
